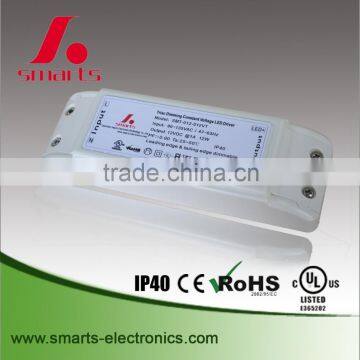

Economical dimmable led driver and power supply

 1. Input voltage.: 90-135V/170-265Vav

 2. Efficiency>83%

 3. Warranty: 3 years

 4. CE,UL,ROHS approval

 5. product  dimension(L x W x H): 180*60*34mm

 6. Net weight: 0.32kg/piece

 7. Case material:Plastic

 8. Waterproof rate:  IP40

 Features:

• High efficiency,save energy ,protected environment

• High stability and low ripple, increase light efficiency and decrease light attenuation

• Meet to safety standard and EMC

• Assure LED stability long lift and light efficiency by constant voltage

• Passed high ,low temperature and waterproof testing.

• Integrity protection,over loading, over voltage ,over current

• 8Hrs and 100% full load burn-in test.

Environment:

• Working Temperature : -30 ~ +60°C

• Working Humidity : 20 ~ 90% RH non-condensing

• Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH

• TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)

• Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety:

Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529

Withstand Voltage : I/P-O/P: 3000KVAC

Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Product parameters:

Application:

Our products are widely used in various industries, such as:

1. Indoor LED illuminating lights,
2. LED Neon,
3. LED City Decoration,
4. LED Lighting Advertising,
5. LED Display,
6. Safety Protection Apparatus,
7. Telecommunications,
8. Networks,
9. Vehicle Lights,
10. Controller Panels, etc.

Inner box: white box

Outer carton:  standard exporting carton for packing
