24V 50W Metal Case Led Power Supply
- xiamen
 - Credit Card

You May Like
-


UL CE Listed 24v 72w ac Input Led Power Supply Enclosure
 -


24v 100w China dc Switch Power Supply Led Driver
 -


Best Price 120w 24v Switching Power Supply Transformer
 -


High Quality 24v Switch Power Supply 150w Power Driver
 -


Aluminum Case 24v 200w ac Led Power Supply Switching
 -


24volt 250w Ac/dc Switching Mode Power Supply Led Driver

Product Details
| Place of Origin | Fujian, China | Brand Name | SMARTS | |
| Model Number | SMT-024-050SA | Output Power | Other, 50w | |
| Output Type | Single | Input Voltage | Other, 100-240V | |
| Output Voltage | 24V | Output Frequency | 47-63HZ | |
| Output Current | 2.08A |
Product Description

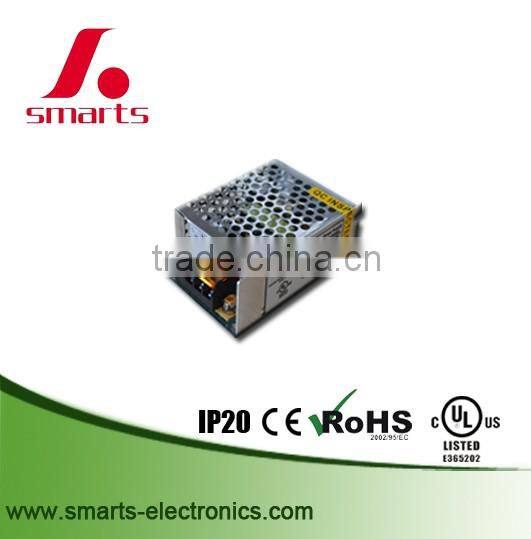

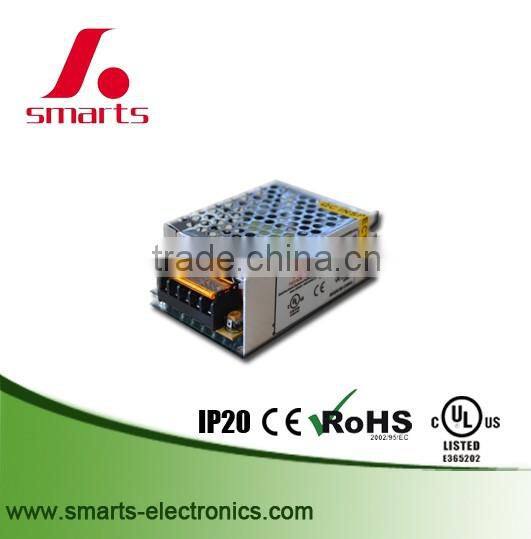

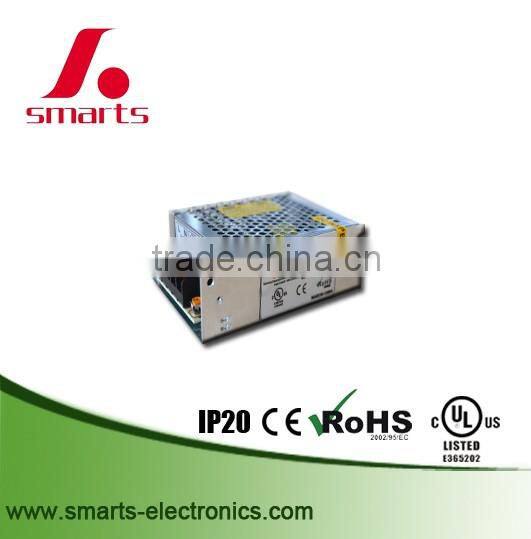

24V 50W metal case led power supply
Description
- Product size: 112*88*34
 - Case material: aluminium case
 - Net weight/pc:400g
 - Input voltage: 100-240V
 - output voltage 24V
 - Frequency: 47-63Hz
 - Output power: 50W
 - output current:2.08 Amp
 - CE(EMC,LVD standard) UL/CUL ROHS approval
 - 2 years warranty

Feature
- Competitived price and high reliability
 - AC input power suitable for the world
 - High efficiency and low operation temperature
 - Soft-start current can reduce the AC input impact effect
 - With short-circuit and overload protection
 - Compact size, light weight
 - 100% full-load burn-in test
 - Installed with EMI filter, minimum wave

Environment
- Working temp,humidity: -10°C~+60°C,20%~90%RH
 - storage temp,humidity: -20°C~+85°C,10%~95%RH non-condensing
 - Withstand vibration: 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

Safety
- Withstand voltage: I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
 - Isolated resistance: I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
 - Safety standardp: Fit UL1012
 - EMC standard: Comply with EN55022,CLASSA

Applications
Our products are widely used in various industries, such as
- indoor LED illuminating lights,
 - LED Neon,
 - LED urban Decoration
 - LED Lighting Advertising,
 - LED Display,
 - Safety Protection Apparatus,
 - Telecommunications,
 - Networks,
 - Vehicle Lights, Controller Panels, etc.

Model  | Input voltage(AC V)  | Working Frequency  | Output voltage  | Output Current  | Output power(DC W)  | Working Temp.  | Protection grade  |
 SMT-024-050SA
  | 100-240V  | 47~63HZ  | 24V  | 2.08A  | 50W  | -25~50°C  | IP20  |
 SMT-012-150SA
  | 100-240V  | 47~63HZ  | 12v  | 12.5A  | 150W  | -25~50°C  | IP20  |
 SMT-036-150SA
  | 100-240V  | 47~63HZ  | 36v  | 4.17A  | 150W  | -25~50°C  | IP20  |
 SMT-048-150SA
  | 100-240V  | 47~63HZ  | 48v  | 3.13A  | 150W  | -25~50°C  | IP20  |
 24V 50W metal case led power supply


24v constant voltage led driver 40w led power supply
24v led driver, 60w constant voltage led power supply
packaging & shipping
inner box-white box + outer carton- standard exporting carton for packing



l We are UL/cUL audited LED drivers/power supplies enterprise in China.
l Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial
experience. It will guarantee your order 100% safe!
l Price is negotiable if you have large quantity demand.
l 100% QC inspection Before Shipping.
l Best Quality & Best Service with Competitive price.
l Shipping will be the most economical for you and freight cost is informed in advance
for your consideration.decision for the shipping terms will be made according to your requirements.
l We have our engineer team, if you have any question about your LED applications,
let us know freely, we will give you the best solution.
l Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
l OEM design & OEM packing welcome.
l Samples will be ready within 7 working days
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:

Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer:     Most of our products have protection of short-circuit. overload,
                   over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future
