5 color self-adhesive label remote inking system offset printing machine

5 color self-adhesive label remote inking system offset printing machine

1. Servo driven: Independent servo driven system in each unit to guarantee stable register at high printing speed.
2. Printing unit: Use the most advanced inking system which has 23 inking rolls, four large diameter form rolls included and alcohol damping system to guarantee printing quarlity.
3. Pre-register system: Based upon the printing length, log data into the sliding control station, each unit will automatically be adjusted to its ready position.
4. Register system: Each printing unit can remote adjust register which includes lineal, lateral and skewing without stopping the press to save time and reduce the waste of substrate.
5. Vacuum backflow control unwind: Vacuum backflow cylinder should be able to prevent scratches on the back of P/S label during intermittent motion.
6. Joystickless: Fully automatic operation system including pressure adjustment, inking roll washup, roller impression, etc.
7. Easy to operate: Equipped with sliding touch screen control station which can be moving around to increase the efficiency of operator.
8. Printing size: Paterted technology to minimize printing size to achieve larger scale of variable size printing.
9. Control system: Apply electronic component from famous international brand to guarantee long term reliable operation.
10. Lubrication system: Centralized automatic lubrication.

Optionals:

1. Rotary diecutting device: Use flexible die and magnetic cylinder to do any shape's cutting.
2. UV flexo printing station: Equipped with anilox roll to do the UV coating or white color printing on transparent material.
3. Cold foil stamping device
4. Laminating device: A intermittent laminator can be added before rotary diecutting during high speed intermittent printing.
5. Automatic ink roller washup system
6. Remote inking system
7. Letterpress printing unit
8. Digital printing unit: It is a colorful non-contact variable information printing system which can combine with traditional printing technology to perfect level.
9. Rotary silk screen printing unit

MACHINE VIDEO:

----1). Printing Machines:

1. ZTJ-330/520 intermittent offset label printing machine: https://youtu.be/LAKyvQ9HiPg.

2. Super-320 intermittent letterpress label printing machine: https://youtu.be/4Tc-reNyngQ.

3. LRY 330/450 stack flexo label printing machine: https://youtu.be/CD4SB5Lk9To.

4. RY-330/450 flexographic label printing machine: https://youtu.be/ksr9OxenLK4.

5. flexo plate making machine: https://youtu.be/cNNZZlKWKsY.

----2). Die Cutting Machines:

1. MQ-320 die cutting machine: http://youtu.be/63abqFREC58.

2. FQ-330/450R rotary die cutting and slitting machine for blank label: https://youtu.be/n0-Z77_6LLk.

3. ZMQ-320 semi rotary die cutting machine: https://youtu.be/sgYOmfpyCPE.

----3). Slitting Machines

1. FQ-320/450 label slitting and rewinding machine: https://youtu.be/75z0rzozqkw.

----4). inspecting machines

1. ZJP inspecting machine: https://youtu.be/9H751zeIT5o.

Main Technical Parameters:

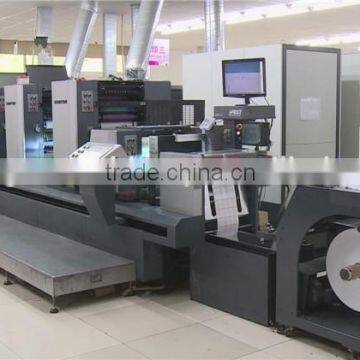

Machine picture for reference:
