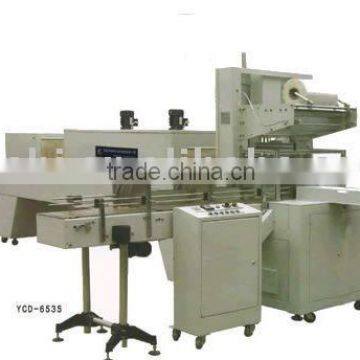

Automatic hot Shrink Packing machine, PE film packing machine, bottle packing machine

Feature:
This machine is developed especially for mineral water, juice, wine, beer, medicine bottle’s bottles packaging, with stable function, and the packed articles tight and orderliness. It can be handled as a single pushing machine when high speed demanded.
Structure
Separate designing—Sealer machine and Double Circle Shrink not only can be Used as group but also as individual.
Directly cutting (non heating knife)—come from Italy, measure up to with international standard. The quality after sealing is stable and tight.
The Shrink Machine adopt actiyator, including frequency conversion, by hand , electronic data processing for different kinds of packaging size.
Double circle system—(constant heat Inner tunnel, normal temperature outer shell)keeps saving resouce and shrink quality.
Teflon Conveyor Belts—the technic of this belt come from Germany, slowly heat exchanging, taking little heat,  possess heat-resistant, wearable,  specialty and turn into the primary part.

To choose
stainless steel/carbon steel
button control /computer control
economical parts /advanced parts
single packing bottle /several kinds of packing bottle

Common and Security system
 The security is assured because of machinery synchronization and PLC control.
 All kinds of products can be packaged by changing different templates.
Saving resource and improving efficiency come into true due to the rationality and the stability of structure of the machinery.

Technical Parameters
Maximum packing size: L×W×H=400×250×320mm(to be ordered)
Packing speed:10-12P/M
Machine dimension: L×W×H=4500×2500×1700mm
Power:1KW
Power supply:220V 50HZ
Rated current:6A
Gas pressure:0.5-0.7Mpa
Suitable infrared thermo-wind circulation stove:
Vlotage:380V
Power:13KW
Transport speed:10-25m/min
Maximum Tunnel size: 1365×450×350mm
Machine dimension: L×W×H=2145×950×1600mm
Weight: 400kg
