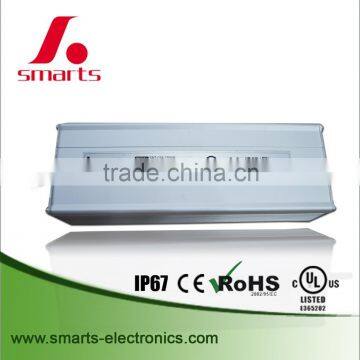

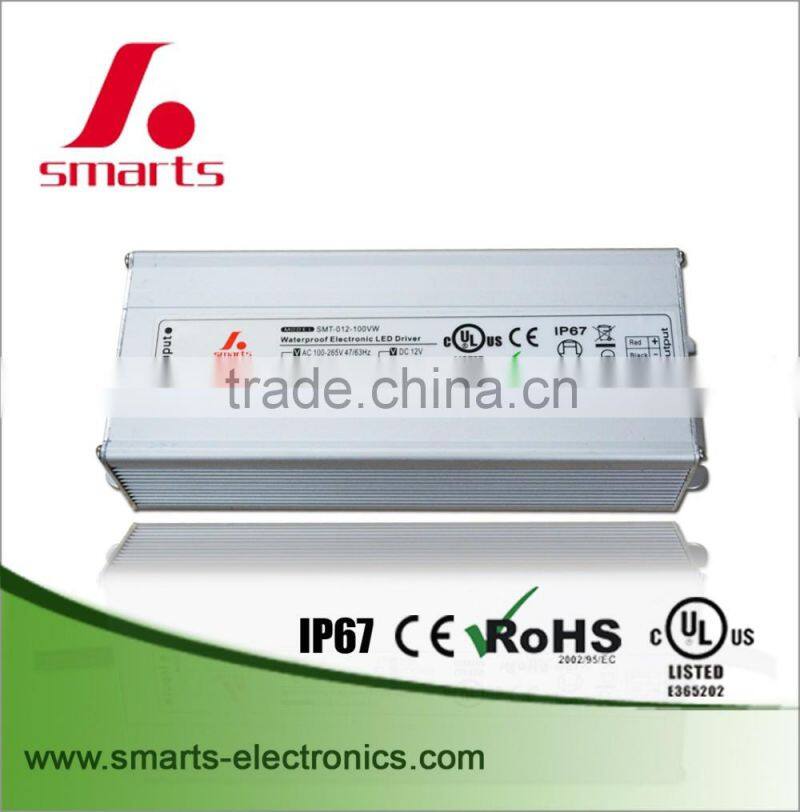

high power led drive 12v 100w led power supply with ce ul

FOB Price

USD $2 - $16 / Piece

1 Piece(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port xiamen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	SMARTS
Model Number	SMT-012-100VW	Output Power	Other, 100w
Output Type	Single	Input Voltage	Other, 100-265v
Output Voltage	12V	Output Frequency	47-63HZ
Output Current	8.33A

Product Description

Model Specification	SMT-012-100VW	SMT-024-100VW	SMT-036-100VW	SMT-048-100VW
AC input voltage	100-265VAC	100-265VAC	100-265VAC	100-265VAC
Frequency range	50~60Hz	50~60Hz	50~60Hz	50~60Hz
AC current (Typ.)	0.92A/110VAC, 0.86A/220VAC
DC output voltage	12VDC	24VDC	36VDC	48VDC
Rated current	8.33A	4.17A	2.78A	2.08A
current range	0~8.33A	0~4.17A	0~2.78A	0~2.08A
rated power	100W	100W	100W	100W
voltage tolerance	+/-0.5V	+/-0.5V	+/-0.5V	+/-0.5V
Ripple & noise(max)	150mV	150mV	150mV	150mV
Inrush current(Typ.)	Cold start 50A/110, 220VAC
Setup, Rise Time	80ms/110,220VAC
Hold Up Time (Typ.)	60ms/110,220VAC
Efficiency(Typ.)	Efficency>83%
Working mode	constant voltage type
Outer case & IP rate	Aluminum, IP67
Dimension( L×W×H )	222×69×43mm
Net weight	1100g
Protection	Protections: Short circuit / Overload / Over voltage / Over temperature. Protection type : Constant current limiting type; Shut down o/p voltage, re-power on to recover. Over Voltage : Shut down and latch off o/p voltage, re-power on to recover. Over Temperature : 85°C±10°C.
Features	Cooling by nature. 100% full load burn-in test High reliability designing solution High efficiency,save energy ,protected environment High stability and low ripple, increase light efficiency And decrease light attenuation. Meet to safety standard and EMC. Assure LED stability long lift and light efficiency by constant voltage. Passed high ,low temperature and waterproof testing. Integrity protection,over loading, over voltage ,over current. 8Hrs and 100% full load burn-in test.
Environment	Working Temperature : -30 ~ +60°C Working Humidity : 20 ~ 90% RH non-condensing Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
Safety	Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 Withstand Voltage : I/P-O/P: 3000KVAC Isolation Resistance : I/P-O/P:100M Ohms/500VDC MTBF : 50Khrs min. MIL-HDBK-217F (25°C )
Certificates	CE(EMC+LVD), ROHS, UL/CUL (UL file # E365202)
Application	Our products are widely used in various industries, such as Indoor LED illuminating lights, LED Neon, LED urban Decoration LED Lighting Advertising, LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.

Detailed Images

Company Information

Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes the concerned topic.....The detail, view website:

Certifications:

• CE • UL/CUL • ROHS

Factory & Equipments View:

FAQ

Q1. What's type power supply do you have?

Answer: We specialized in constant voltage & current LED drivers,

0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters

Q2. What's shipping mode can we choose?

Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping method

Q3. What's the MOQ?

Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.

Q4. What can you do if the product is broken?

Answer: We promise to replace new ones to you if there is any defective happen

during the warranty period, but we need pictures or video to prove the defective

comes from our quality problem

Q5. How about the protection of product?

Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,

please consult our salesstuff.

Q6. How about the transportation?

Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.

For urgent orders,we suggest via air to airport plus our ship partner send to your door.

We will cooperate with your choice.

Q7. What's the Payment do you have?

Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,

WESTERN UNION, PAYPAL. More payment options will be added in the near future.
