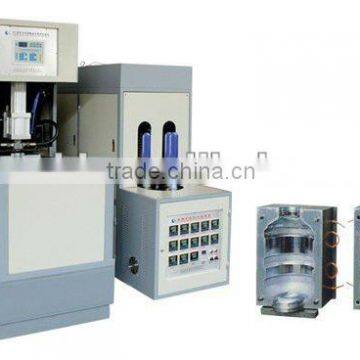

Semiautomatic Blowing 5 Gallon PET Bottle Machine (YS-25)
Negotiable
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SXHF automatic PET preform injection machine, injection moulding machine, beverage machine
-
Automatic PET bottle blowing machine
-
SXHF high efficiency PET bottle blowing machine, stretch blow machine, beverage production line
-
Bottle blowing machine, plastic bottle blow molding machine, PET bottle blow machine
-
Bottle blowing machine, PET bottle blow molding machine, plastic bottle making machine
-
Automatic bottle making machine, automatic blow molding machine, high capacity PET bottle blowing machine
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | SXHF |
Product Description
Specifications
Controler:computer5 Gallon blow molding machine is especially used to produce 3-5 gallon PET bottles and is widely used to produce any shape of plastic bottles and containers.
Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the preform, the preform rotated and heated equally.
The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
| TYPE | ITEM | UNIT | PARAMETER |
| Container | Product material | / | PET |
| Container volume | L | 10-25 (1 cavity) | |
| Theoretical output | PCS/H | 60-90 | |
| Prefom length | mm | 15-460 | |
| Preform inner diameter | mm | 15-200 | |
| Mouding | Max.mould plate Dimenstion(L*W) | mm | 420*500 |
| Max.mould thickness | mm | 400 | |
| Clamping force | KN | 330 | |
| Mould opening stroke | mm | 330 | |
| Machine size and weight | Main machine(L*W*H) | cm | 230*85*220 |
| Main machine weight | T | 1.35 | |
| Oven (L*W*H) | cm | 270*70*180 | |
| Oven weight | T | 0.35 | |
| Max.heating power | kw | 28.8 |
