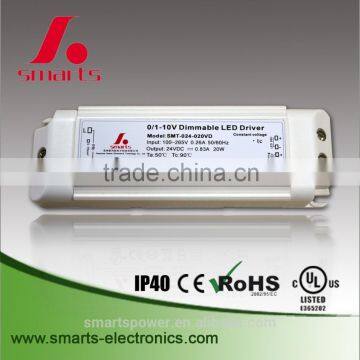

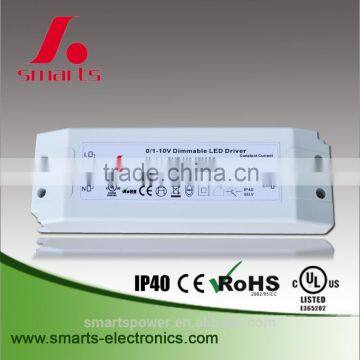

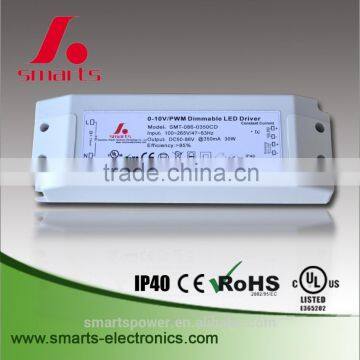

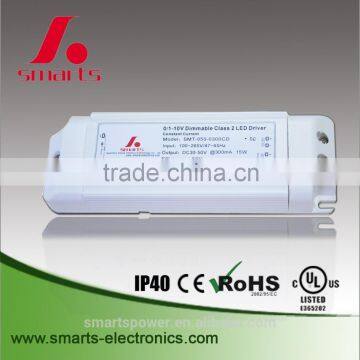

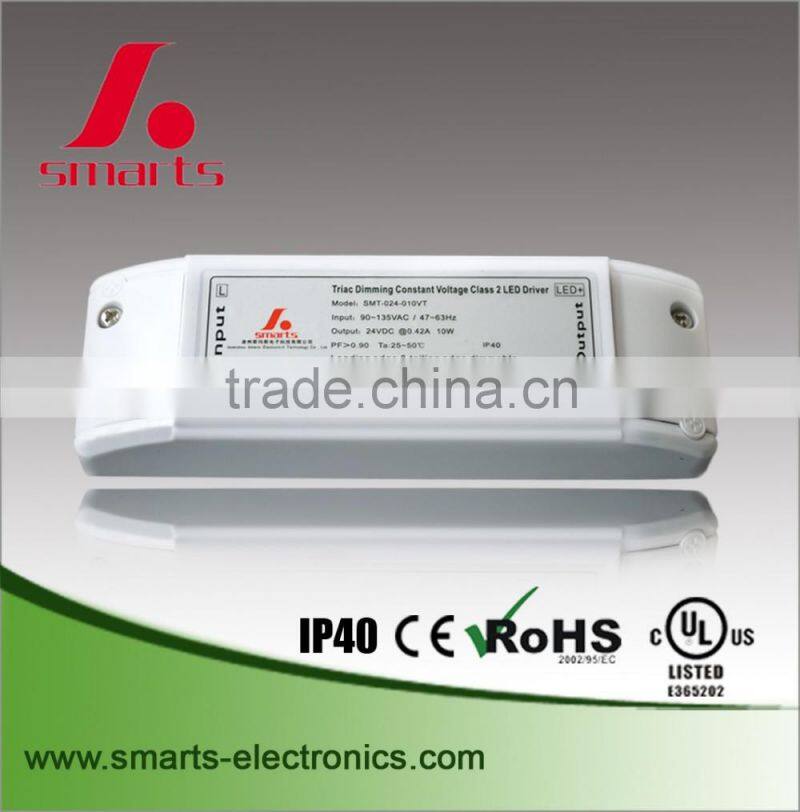

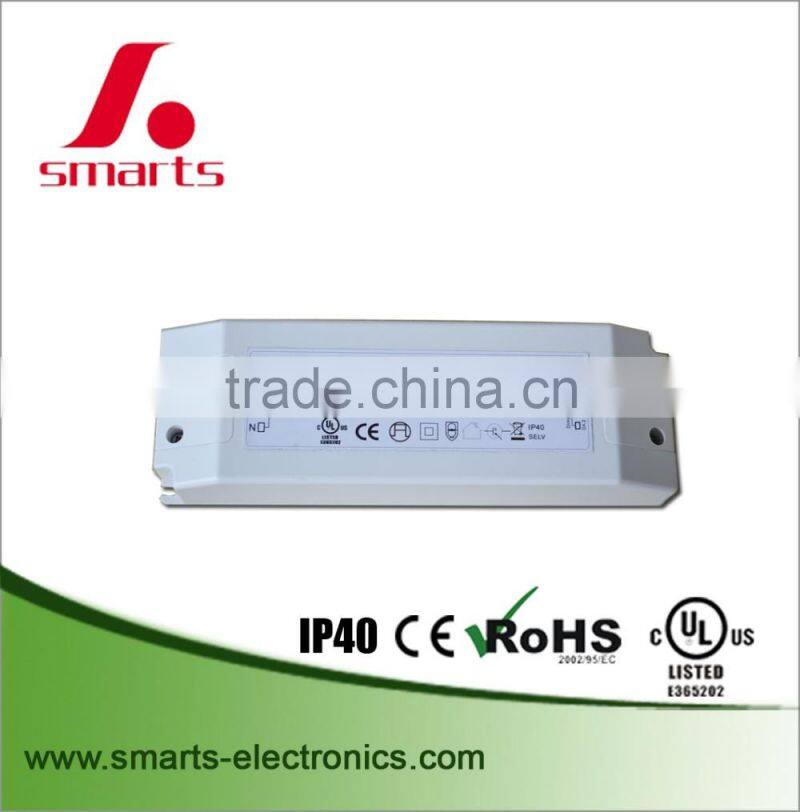

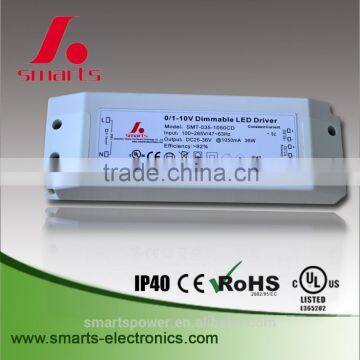

1-10V and PWM Dimmable 42W LED Driver

 Specifications:

1. Dimming type: 0-10v  led power supply; AC-DC Dimmable LED power supplly
2. I/P:100~265V, 47~63Hz
3. Ambient temp.:-20 degree~40 degree full load
4. Efficiency > 88%
5. PFC> 0.9
6. size: 180*60*34mm
7. RippleI & Noise (max.) : 350mVp-p
8. Voltage Tolerance : ±5%
9. Line Regulation : ±1%
10. Load Regulation : ±2%
11. Setup, Rise Time : 500ms, 120ms / 230VAC
12. 3 years warranty

(We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

1. waterproof rate: IP40
2. High reliability, Dualiable operation.
3. Cooling by nature.
4. 100% full load burn-in test
5. Protections: Short circuit / Overload / Over voltage / Over temperature
6. Current Limit : ±5% rated output current
7. Protection type : Constant Voltage limiting type; Shut down o/p voltage, re-power on to recover
8. Over Voltage : Shut down and latch off o/p voltage, re-power on to recover
9. Over Temperature : 85°C±10°C

Environment:

1. Working Temperature : -25 ~ +50°C
2. Working Humidity : 20 ~ 90% RH non-condensing
3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4. TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5. Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety:

1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
2. Withstand Voltage : I/P-O/P: 3000KVAC
3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC
4. MTBF : 50Khrs min. MIL-HDBK-217F (25°C )

Packaging:

• Inner box: white box
• Outer carton:  standard exporting carton for packing

Shipping:

♦  We are UL/cUL audited LED drivers/power supplies enterprise in China.

♦  Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial

    experience. It will guarantee your order 100% safe!

♦  Price is negotiable if you have large quantity demand.

♦  100% QC inspection Before Shipping.

♦  Best Quality & Best Service with Competitive price.

♦  Shipping will be the most economical for you and freight cost is informed in advance

     for your consideration.decision for the shipping terms will be made according to your requirements.

♦  We have our engineer team, if you have any question about your LED applications,

     let  us know freely, we will give you the best solution.

♦  Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.

♦  OEM design & OEM packing welcome.

♦  Samples will be ready within 7 working days.

Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes the concerned topic.....The detail, view  website:

Certifications:

• CE    • UL/CUL   • ROHS
