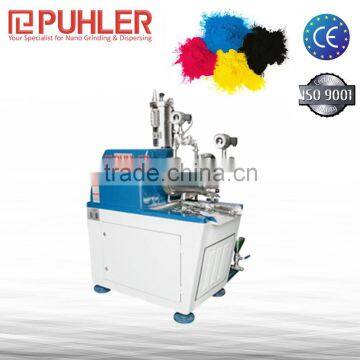

Puhler Sand Mill Machine For Printing Ink / Low Noise Nano Grinding Machine

Product Application

Puhler Horizontal Beads Mill For Viscous Dyestuff

Puhler Sand Mill Machine For Printing Ink / Low Noise Nano Grinding Machine

PHN Bead Mill
The machines and plants manufactured by the Nano Grinding Business Unit of the Puhler Group are used primarily in the following areas of application:
The demands placed on machines and technology in these different industries are extremely varied. They must be reliable, have a long service life and be easy to custom tailored for the particular application. That is our strength and you can rely on it. We will work with you to develop the right solution for your processing task.

Main Features

Totally-enclosed type operation ensures a clean workshop, and there is no solvent volatile.
Wet-milling enables faster milling speed and smoother homogeneity.
Continuous operation means reduced labor intensity of the workers.
Double water pipe for sharp cooling, twice result achieved with the same external appearance.
Dynamic separator for faster and smoother discharge.
Aeesmbly tool set provided for convenient maintenance of the equipment.
Performance : Safety, credibility.
Machine halt automatically in hyper-pressure and over-temperature, lubricating oil recycle, automatic display, main dynamo can not be operated if pump dynamo did not work.
Multiple choices: complete machine : carbon steel type, stainless steel type ;

Machine Parts

Name: Grinding Chamber

Brand: Puhler

Original: Germany

Ceramic model for iron-free grinding of abrasivev,contamination sensitive solvent-based products The product-wetted grinding chamber components are available in zirconia,silicon nitrite and silicon carbide.

Main Features

Name: Grinding Chamber
Brand: Puhler

Original: Germany
Si3N4 ceramic grinding systemwith very long working life, to be used for of various industries, such as ceramic inks,carbon nanotubes, grapheme and electronic paste etc.

Machine Parts

Name: Grinding Chamber
Brand: Puhler
Original: Germany
Polyurethane model all product wetted parts are PU-coated for iron free processing of contamination sensi tive water based products.

Main Features

Name: Grinding Chamber
Brand: Puhler
Original: Germany
Standard model in highly wear resistant special steel for the processing of solvent based products. Hard alloyed steel grinding systems for pharmacy industry, easy toclean and disinfect, meet GMP standard.
