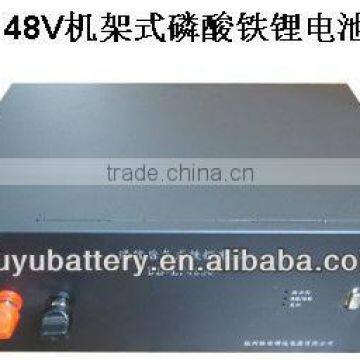

48V 50Ah LiFePO4 battery pack

Battery Model

48V 50AH

Nominal Capacity (AH)

50

Nominal Voltage (V)

48

Source Resistance (mΩ)

Cell Combination

( 2pcs in in parallel and 16pcs in serial )

Cell Type

LF90180220

Cell Quantity (series*parallels)

32

Cell Size

9*180*220mm

Battery Size

305*183*230mm

Discharge Cutoff Voltage (V)

32-40V

Charge Cutoff Voltage (V)

58.4~60V

Rated Discharge Current (A)

50A

Instantaneous Maximum Discharge Current (A

200A

Maximum Continuous Discharge Current (A)

100A

Maximum Continuous Charge Current (A)

30A

Instantaneous Maximum Discharge Current (A)

With BMS Board

200

Maximum Continuous Discharge Current (A)

With BMS Board

100

Charge Mode

CC-CV

Standard Charge Current (A)

5A

Charge Time under Standard Charge Current

11h

Fast Charge Current (A)

30A

Charge Time under Fast Charge Current

2h

Charge Temperature Range

0-50°C

Discharge Temperature Range

-20-60°C

Battery Net Weight (include BMS)  (kg)

20KG

Battery Gross Weight (include BMS)  (kg)

23KG

Lasting Distance (48V 1.5KW Motor)

150-200KM

Charging Cycles

800-1000

Equipment

BMS + Fast Charger

Recommend Motor Application

For 48V and less than 3000W

Battery Model

48V 20AH

Nominal Capacity (AH)

20

Nominal Voltage (V)

48

Source Resistance (mΩ)

Cell Combination

 ( 2pcs in in parallel and 16pcs in serial )

Cell Type

LF9590150E

Cell Quantity (series*parallels)

32

Cell Size

9.5*90*150mm

Battery Size

324*95*160mm

Discharge Cutoff Voltage (V)

32-40V

Charge Cutoff Voltage (V)

58.4~60V

Rated Discharge Current (A)

20A

Instantaneous Maximum Discharge Current (A

60A

Maximum Continuous Discharge Current (A

40A

Maximum Continuous Charge Current (A)

12A

Instantaneous Maximum Discharge Current (A)

With BMS Board

80

Maximum Continuous Discharge Current (A)

With BMS Board

40

Charge Mode

CC-CV

Standard Charge Current (A)

2A

Charge Time under Standard Charge Current

11h

Fast Charge Current (A)

12A

Charge Time under Fast Charge Current

2h

Charge Temperature Range

0-50°C

Discharge Temperature Range

-20-60°C

Battery Net Weight (include BMS)  (kg)

7.6KG

Battery Gross Weight (include BMS)  (kg)

10KG

Charging Cycles

800-1000

Voltage

12V

Over current protection

50±10A

Capacity

20Ah

Cut off voltage(single cell)

2.0V±0.025V

Current

4A

Charge voltage

14.6±0.1V

Short time working current(1C)

20A

charge current

3.0~5.0A

Peak working current (2S)

30-35A

Battery pack weight

2.2±0.2Kg

Discharge lead

   AWG14#

Charge lead

AWG14#

Dimension

90*93*165mm

Label

12V/20Ah
