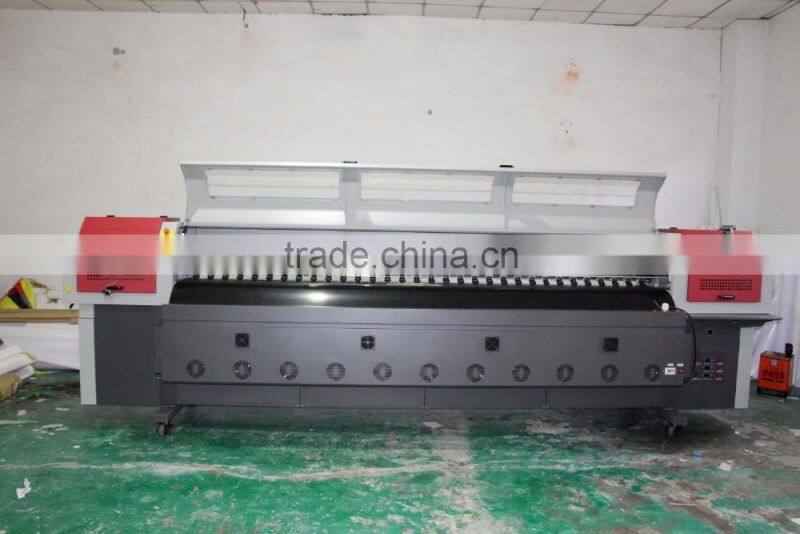

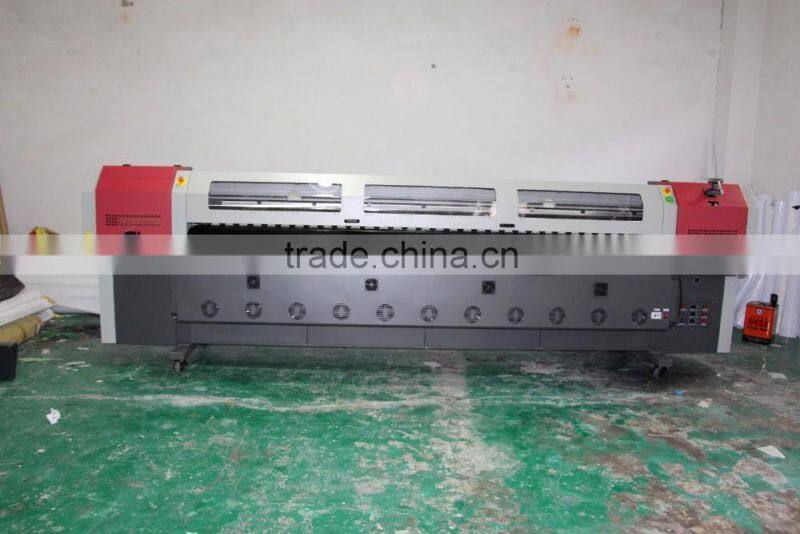

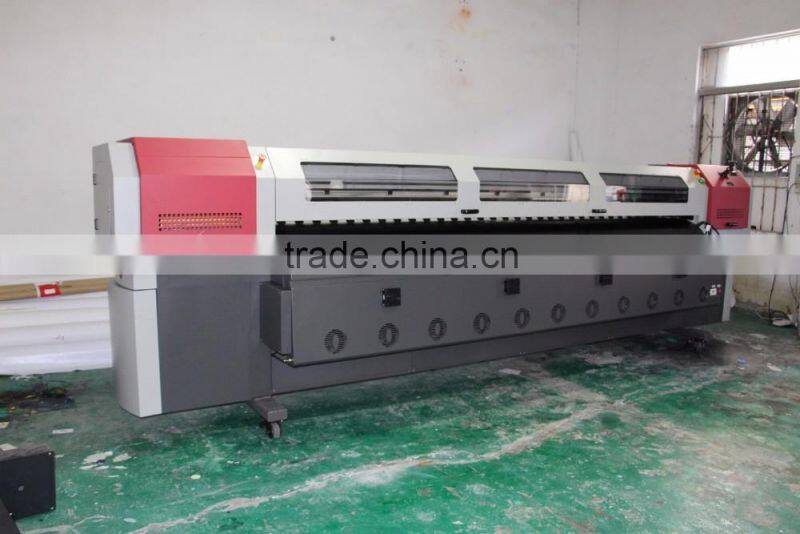

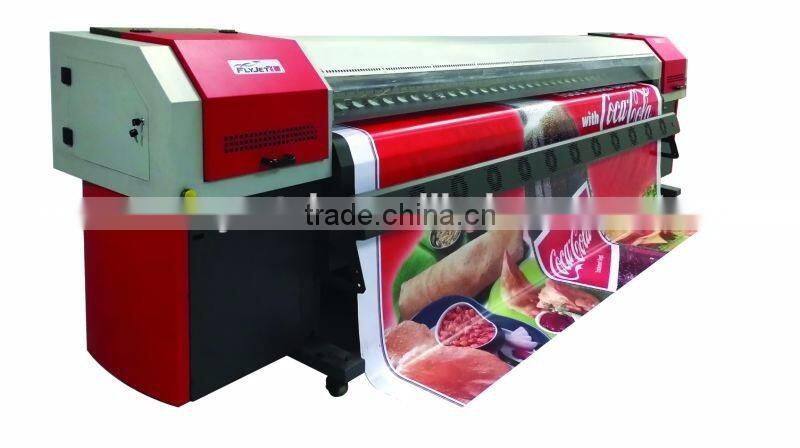

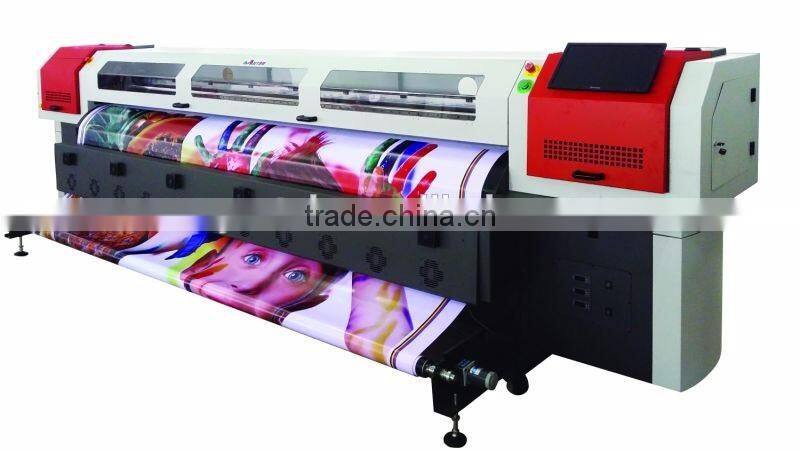

Konica Solvent Printer Konica Outdoor Banner Printer Indoor Outdoor Printer

Parameters

CT-3208i

Printhead

Konica512i-30pl

Number of heads

4 heads

 8 heads

Output

2pass 360*360dpi

 140sqm/h

 280sqm/h

3pass 360*540dpi

 105sqm/h

 210sqm/h

4pass 360*720dpi

 70sqm/h

 140sqm/h

Output resolution

Maximum:720*720dpi

Inkjet Tenology

Drop on demand, piezoelectric type ink spraying, solvent inkjet  techonology

Type of ink

Environmental, colorful, outdoor durable solvent ink

Ink

Colors

4 colors, CMYK

Capacity

5L/bottle(Cyan,Magenta,Yellow,Black)

Type

Solvent

RIP software

UltraPrint

Color control

International standard ICC color control,adjustable curves and density,etc

file format

TIFF,JPEG,Postscript,EPS,PDF etc.

Guide rail system

Imported special THK mute dual rail, ensure the  quality and durability of high-speed printing

Motor configuration

Use hight-end driver motor of Leadshine

Material handling

Industrail standard cloth feeding and collecting system

Specifications of coiled material

Max. width 330cm,diameter of coiled 35cm,weight 100kg

Data interface

High speed USB transmission

Work temprature

20~30℃

Relative Humidity

20~80%

Heating power

4KW

System Power

3.5KW

Input parameters

AC220+10%,50Hz~60Hz,16A(system),20A(heating)

Printer Dimensions(L*W*H)

4830*960*1380MM

Shipping Package Dim(L*W*H)

5020*1080*1650MM

Printer Weight

N. W: 900KGS  G. W: 1000KGS
