sticker printing and cutting printer machine

FOB Price

US$ 5,500 - 9,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Flatbed Printer
Place of Origin	Guangdong, China	Brand Name	Crystek
Model Number	sticker printing and cutting printer machine	Usage	Bill Printer, Card Printer, Label Printer, Paper Printer
Automatic Grade	Automatic	Voltage	AC220V,50Hz/60Hz
Gross Power	1500W	Dimensions(LWH)	2190600410mm
Weight	130kg	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

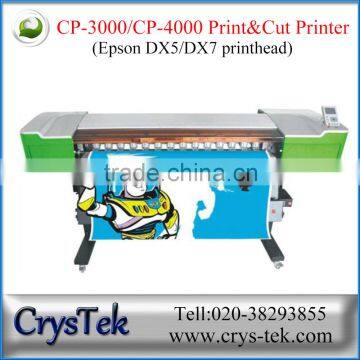

CrysTek print and cut plotter machine

Details:

1. New model Printing&Cutting Plotter

The newest model of Printing and Cutting plotter, used with Epson Dx7 printheads.

35’’ printing width, the speed can be 9 sq.m/h.

2. Stable performance

The highest speed for cutting can reach 300 mm/s, and the cutting offset just 0-1.5mm.

The cutting force is 30-800GF, the power of media adsorption can be adjusted which avoids printhead scratching with media.

3. Humanized design

Embedded intelligent sectional heating system, auto cleaning system with anti-clogged flash spray&mositurzing function.

Specification:

Model	CP-3000
printhead	Piezo Electric Printhead DX7
Number of Printhead	1 Head
Max Print Width	890mm(35”)
Printing Resolution	4Pass	8m²/hr
	6Pass	6m²/hr
	8Pass	4m²/hr
	16Pass	3 m²/hr
Ink	Type	Eco-solvent ink, UV ink
	Color	Dual 4 colors (C.M.K.Y)
	Capacity	440ml of each ink cartridge
	Ink Supply System	Block brake type of ink supply system
Media	Width	890mm(35”)
	Type	Label, sticker, banner, billboard, vinyl, POP display material etc.
Print Height	1.5-3mm above media adjustable
Cutting speed	10-300mm/s
Cutting offset	0-1.5mm
Cutting force	30-800 GF
Heating System	Embedded intelligent sectional heating system
Media adsorption system	Muti-sectional intelligent air suction system with adjustable strength
Feeding system	Equipped
Auto Printhead Cleaning System	Auto cleaning system with anti-clogged flash & moisturizing function
Clamp	Equipped
Auto take up system	Selectable
Print Interface	HI-USB2.0
RIP software	FlexiSIGN-PRO, SAI
Input Power	AC220V,50Hz/60Hz
Machine Dimension	2190×600×410mm(L×W×H)
Packing Dimension	2320×850×690mm(L×W×H)

1. The printing manual

2. The LED UV Lamp

3. The cutter

4. The printer on the Exhibition

5. The sample printed by the plotter
