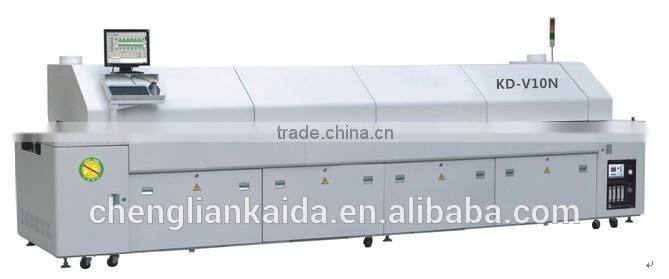

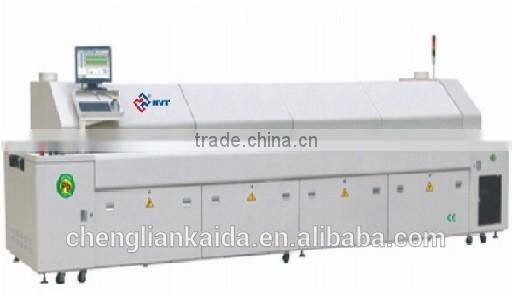

The Latest Research and Development Large Convey Vacuum Reflow Oven

 Specification of Vacuum furnace :

The following models furnace size can be customized (see special custom)

Application field : IGBT modular , MEMS packaging,  Large-power component

Product features:

1. The brand computer+Siemens PLC intelligent control system, high precision temperature control is +_1-2 Deg(if the computer crash accident, and can realize off-line work, do not affect production) and to ensure that the control system is stable and reliable;

2. On the cylinder body open automatic lifting machinery, ensure safe and reliable;

3. Equipped with mesh belt tensioning device, transport smoothly and no shaking, deformation, ensure smooth PCB transport; Synchronous guide transmission mechanism (and automatic SMT machine online connection), ensure that guide adjustable wide precision and high service life;

4. Automatic control lubrication system, through the set come on time and fuel charge, automatic lubrication transmission chain;

5. All heating zone all by computer PID control (upper temperature zone and lower temperature zone implementation independent temperature control, can divide temperature area alone.Can open division heating, in order to reduce starting power);

6. Net/chain transmission by computer to carry out the whole closed loop control, can meet different kinds of PCB production at the same time

7. With fault sound and light alarm function;

8. With leakage protector, ensure that the operating personnel and control system security;

9. The built-in UPS and automatic delay shutdown system to guarantee the PCB and return welder in power or overheat not damaged;

10. The German ERSA world leading microcirculation heating mode, and the upper and lower independent air microcirculation system, temperature uniformity and thermal compensation high efficiency, high efficient supercharged accelerated air duct, greatly improve the circulating hot air flow, temperature quickly (about twenty minutes), thermal compensation for high efficiency, high temperature welding and curing;

11. The upper and lower every temperature zone with independent temperature inductive sensor, real-time monitoring and compensation every temperature zone temperature balance;

Packaging & Shipping:

Our service :

Why you choose us ?

1 . Face to face technical guidance : our professional technical staff will be abroad for technical guide and after-sale service .

2. Visual monitoring analysis system: Real -time monitoring the welding process and  perform statistical analysis on date . stability , reliability and security operating system .

3.  Rapid cooling system : Independent water cooling and gas cooling device is set in the cavity, achieve rapid cooling of the device.

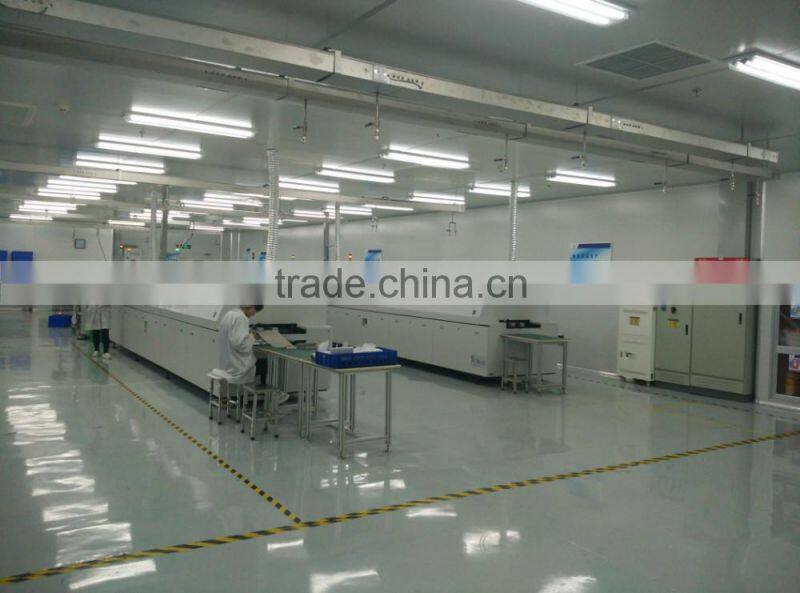

Office and workshop show :

FAQ :

 Question:Which payment terms you will accept?

Answer :  L/C, T/T, West Union.paypal

Question: What is your delivery time?

Answer: For some normal standard size furnaces and components, we have in stock of semi-finished products   ; So we can send out in 10 days; Others the delivery time is from 15 days to 45 days according to different products request.

Question: What logistic shipping ways you can send the products?

Answer: We can send goods out by sea, by air or by express per customer's requirement.

Question: What about your after-sale service?

Answer:  Our warranty time is one year for defects in materials or workmanship. During this period, we will replace the bad components free of charge  for customers,but this warranty does not cover consumables and failures because of abusing, misusing, accident or unauthorized alteration or repairing. Heating element is not included inside.
