rotary wood peeling lathe/rotary veneer peeling machine/Plywood Veneer Peeling Machine For 4 Feet/8 Feet

Xingtai Ya Han Machinery Factory is the manufacturer of the plywood making machine , veneer  peeling machine , cold press machine , hot press machine , panel saw etc.. Have more than 10 years history , and exported to more than 35 countries .

Main function :

The main function of this device is to strip the outer timber or processed wood veneer to a minimum wood core slab for cutting simultaneously. Equipment running smoothly, low noise operation, the knife bed no juddering when processing timber, equipment safe for all rotating parts will not leak outside naked, long life and other characteristics of the machine

Specification:

Processing thickness range: 0.3 mm ---4.0 mm (if demand can ultrathin dough)

Processing range: diameter of 450 to 30 of the remaining wood core diameter

The error of machining accuracy: The range of error of plus or minus 0.05 mm,

                                                       Precisionmachining of thin slab as 1 mm thickness is 0.02 mm to complete

Equipment power: Use double-roller motor power 7.5 kilowatts 1,

                               single-roller using a 5.5 kilowatts power station,

                               feed precision motor control using a motor power 5.5 kilowatts,

                               cut power 1.5 kilowatts motor 1

Equipment options: Equipped with digital control Chinese, English display interface, the operation is very simplele

Working speed and output: The machine running speed of 45 meters , equipment, daily output of 20 - 60 cubic                                            (associated with the rotary cutting thickness)

The weight of the whole machine :The total weight of 3.6tons of equipment

Mounting Dimension: The length of 4.2meters, 1.6 meters wide, 1.3 meters high

1.Application:

  CNC Spindless Veneer Rotary Cutter/wood working machine /veneer rotary lathe , the professional equipment of veneer and plywood processing

2. Main Features        1),With Special roller treatment and high load setting, greatly improve life service.       2), Adopt double speed cutting, low speed with curved wood, easy to find circle with high efficiency cutting.        3), Can processing small diameter logs.

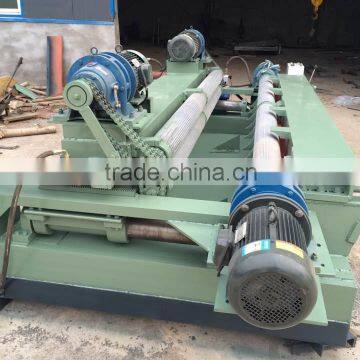

Pictures:

We could design and produce machine as per your production request.

One year warranty for the machine and lifetime after-sales serivce&maintenance

Professional after-sales service team of 20 technicians.
