100-3000TPD Low Investment High Profit Crude Palm Oil Indonesia,crude Palm Oil Processing From Huatai Factory

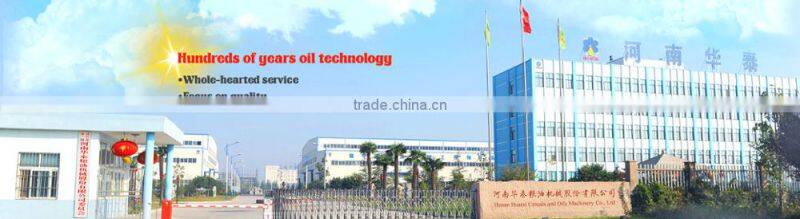

Company information

Henan Huatai Cereals & Oils Machinery Co., Ltd.

Henan Huatai Cereals & Oils Machinery Co., Ltd. (short for HHFOME) is one listed company located in the Industry cluster of Huaxian, Henan Province which covering 100,000.00 square meters and have more than 580 staffs. We are a large scale grain and oil equipments manufacturing enterprise which specialized in researching, designing, manufacturing, installation, etc. Since now we have got 22 items national patents, 6 items international prizes, etc. Our equipments have been got ISO9001, SGS, CE, IAF and CNAS certifications. Also we have exported to Ethiopia, Egypt, Bolivia, Sudan, Nigeria, Kazakhstan, Russia, Tajikistan, Malaysia, Indonesia, Bangladesh, Vietnam, Thailand, Burma, Egypt, etc. All of our members will try our best to help you to build a powerful and most suitable production line to save your costs and get max benefits.

Palm oil process

Features:

1) Compact and strong structure, and easy operation.

2) The automatic control system which can adjust barrel pressure.

3) High oil pressing efficiency, and residual oil in cake is less than 8%.

4) Low crushing efficiency for palm nut.

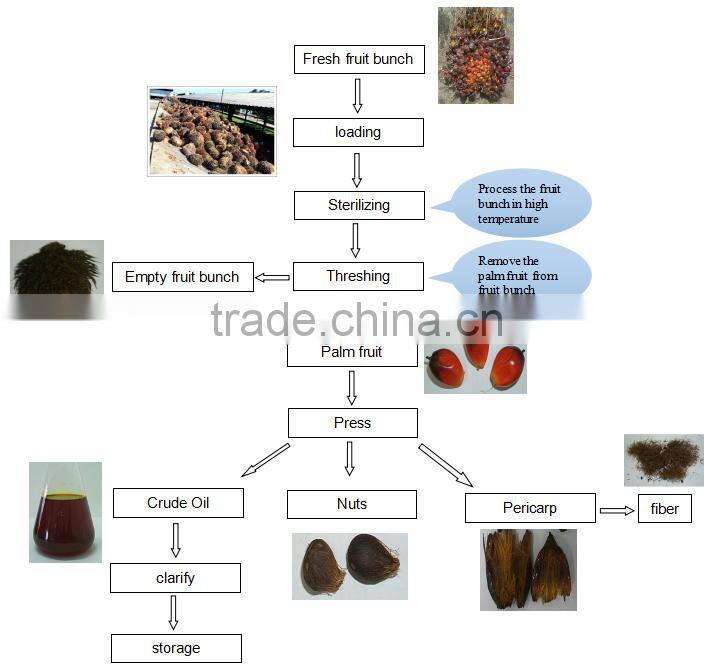

Process for crude palm oil indonesia:

Equipments which directly related to the palm fruit oil process (from fresh fruit to final products) are divided into six systems as follows:

1.Fruit reception system of crude palm oil indonesia

1.1 Use truck to transport the ripe and fresh palm fruits from fruit ranch, weigh up them by platform scale and record, and then pour them into the discharging table.

1.2 Start control valve to open the discharging table, then fruit drop in the fruit basket car freely.

1.3 Drag the fruit basket car which loaded with fresh palm fruits to the downward of the bridge crane by power cable tray and cable tray, then use bridge crane to sling the fruit basket car to the track lead to sterilizer sterilizing tank.

2. Sterilizer system of crude palm oil indonesia

2.1 After drag the fruit basket car into the sterilizer sterilizing tank, close the sterilizer sterilizing tank and open the vent valve below it. Then inlet saturated vapor, close the vent valve after the cold air in the tank was excluded generally, and enter into the period of steaming and sterilizing.

2.2 Close the inlet valve after the sterilizing process. Drain out the water and vapor in tank, then you can open the door of the sterilizer sterilizing tank.

2.3 Drag the cooked fruit basket car to the downward of the beige crane.

3.Threshing system of crude palm oil indonesia

3.1 Pour the sterilized fruit in the fruit basket car into the unloading equipment.

3.2 Feed the fruit regularly into the fruit-separating machine to separate.

3.3 After twisting and beating in the fruit-separating machine, the fruits will fall off entirely.

4. Pressing system of crude palm oil indonesia

4.1 Palm fruit was transported to crasher by elevator.

4.2 Fruit was heated in crasher.

4.3 After sterilizing, the broken palm fruit flow into the palm oil press machine to pressing. Oil and water mixture outflow from pressing chamber shell hole, in the same time, the fiber cake and core was discharged from bonehead clearance and then drop in the packing anger of broken cake.

5. Fiber, cake, shell and kernel separation system of crude palm oil indonesia

5.1 Fiber cake was dropped into packing auger, use interrupted blade to break up the palm cake, evaporate the palm cake constantly during the transportation, and the enter into the fiber and core separation machine. Use induced draft system which compose of draught fan and wind net to transport fiber to boiler room to burn. Palm core of large proportion drops into the bucket elevator from the other side of the fiber and core separating machine and then to transport to the core charging bucket to dry.

5.2 Open the discharging hole which is at the bottom of the core chafing bucket, then palm core drop into husking machine to husk.

5.3 Use shell kernel separator to separate the shell and kernel mixture after husking.

5.4 Kernel are charged into kernel-holding tank and shell are transported to boiler room to burn.

6.Clarification system ofcrude palm oil indonesia

6.1 Use vibrated sifting filter to remove residues like fiber in the crude palm oil, then the oil enter into the passivating tank.

6.2 There are indirect and direct steam in the passivating tank. After passivation, palm oil and water mixture are banished to the high-order position tank and then flow into the clarification tank.

6.3 Clarified oil flow into the oil tank, use disc separator to remove water in oil and then use plate heat exchanger to eliminate the residual water completely.

6.4 After vacuum drying, the oil flow into net oil tank and then feed into the final-product oil tank directly

Palm Oil Press Machine Our company adopts palm fruit oil press, which is the ideal equipment to press crude palm oil.

crude palm oil indonesia malaysia

Our exhibition

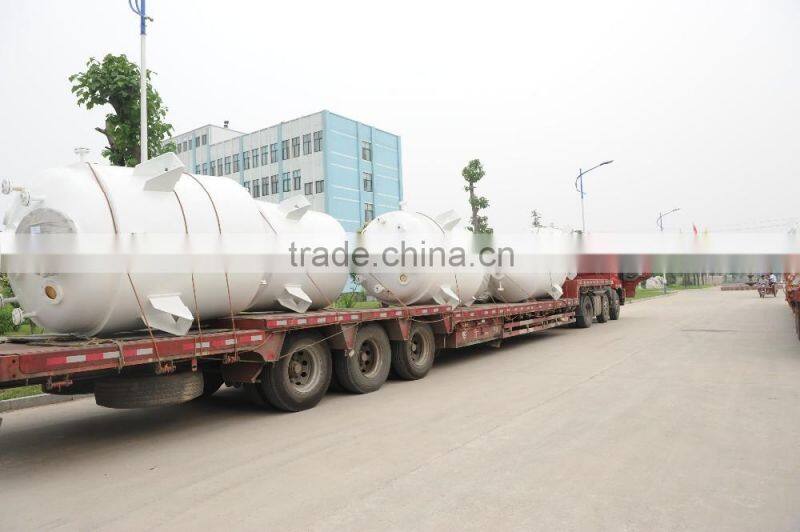

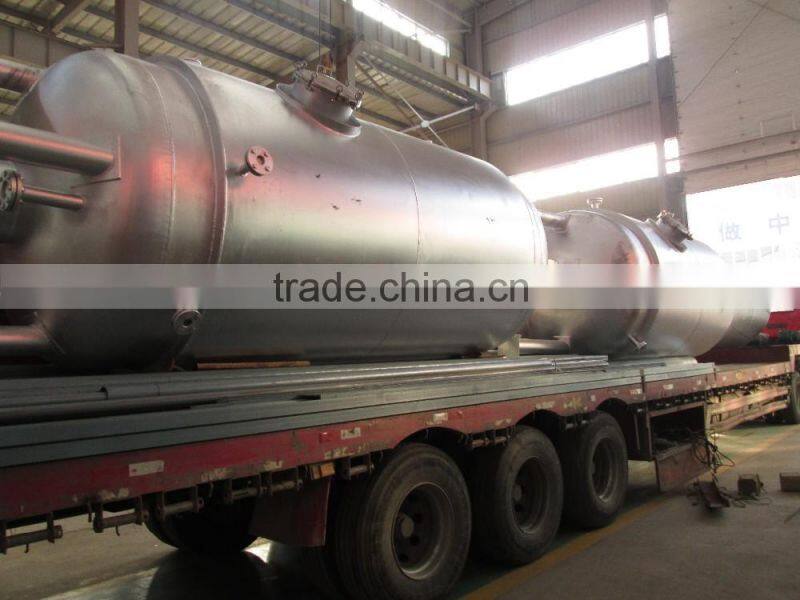

Packaging and shipping

Customer visiting

Contact

If you have any need about our crude palm oil indonesia,do not hesitate to contact,i am always here waiting for you.
