Home > Products > Slide switch > slide switch 3A 250V AC SS-12E10

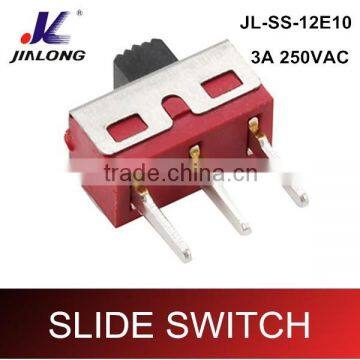

slide switch 3A 250V AC SS-12E10
US$ 0.01 - 0.1
/ Piece
1000 Pieces(Min. Order)
- Ningbo or Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JL | |
| Model Number | SS-12E10 | Max. Current | 3A | |
| Max. Voltage | 250V | Mechanical Life | 10000cycles |
Product Description
slide switch, mini slide switch, electrical switch
Item No.: SS-12E10
Rating: 3A 250V AC
Function: 1P2T
Travelling: 2.2mm
Contact resistance: 30m Ω max.
Insulation Resistance: 100M Ω at 500V DC
Withstand Voltage: AC 500V for 1 minute
Operating Force: 150gf~300gf
Switching LIfe: 10,000 cycles
Temperature: -25oC~85oC
Certification: CQC, UL, VDE, CE
We have rich experiences in manufacturing slide switches, welcome to your enquiries.
OEM and DEM orders are also welcomed.
Contact Us
- Zhejiang Jialong Electron Co., Ltd.
- Contact nameEdward Pan Chat Now
- Phone86-577-85222566
- AddressQianshi Industrial Zone, Oubei, Wenzhou, Zhejiang, China, Wenzhou, Zhejiang
