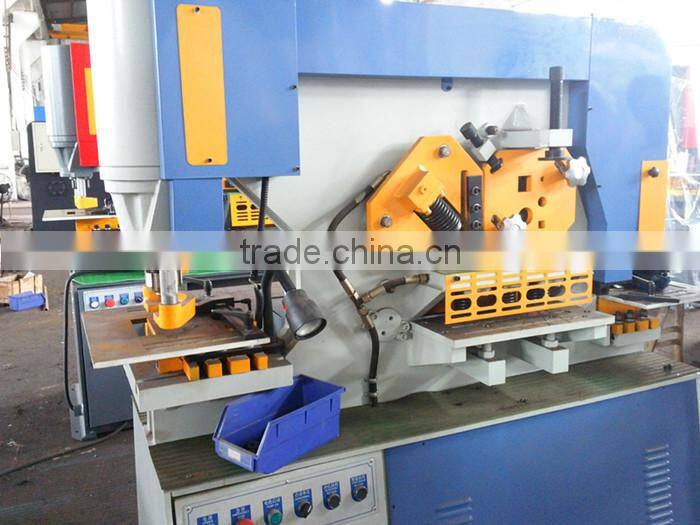

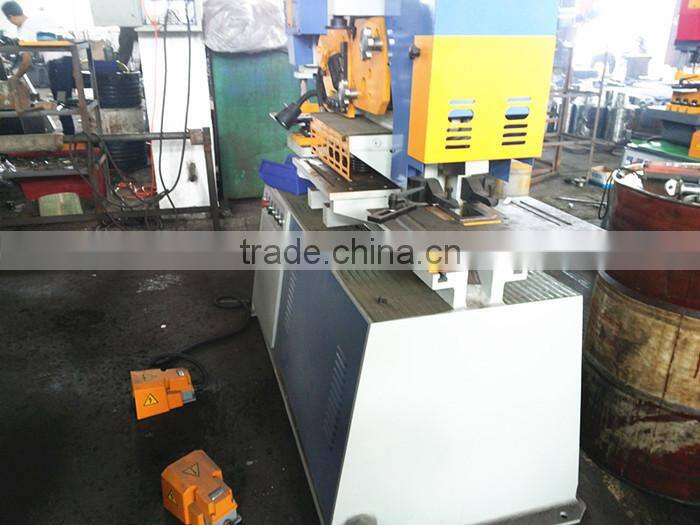

Angel Bending Iron Worker Hydraulic

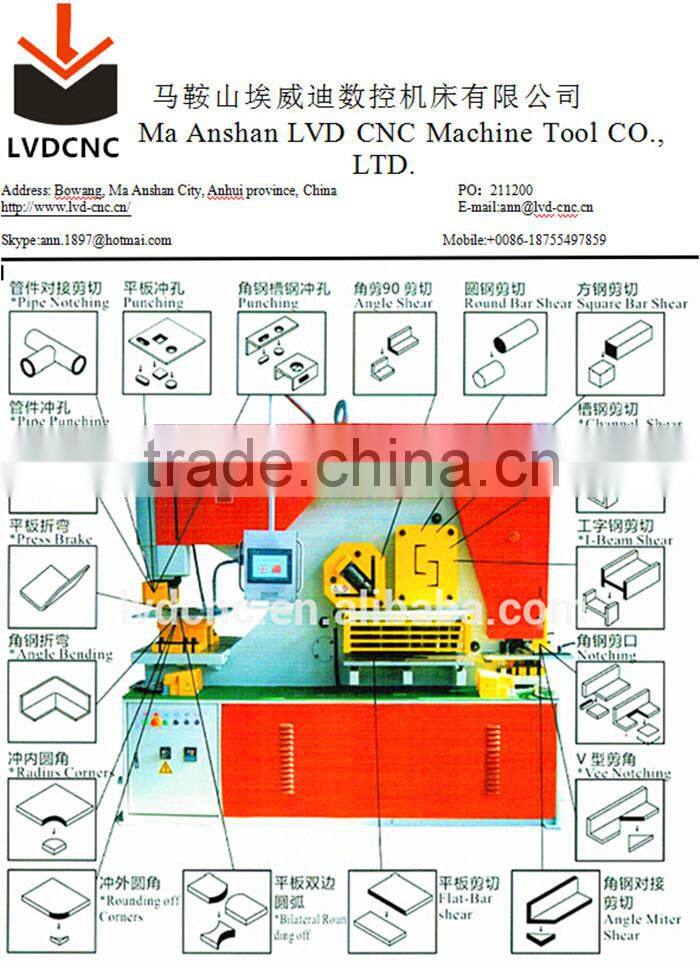

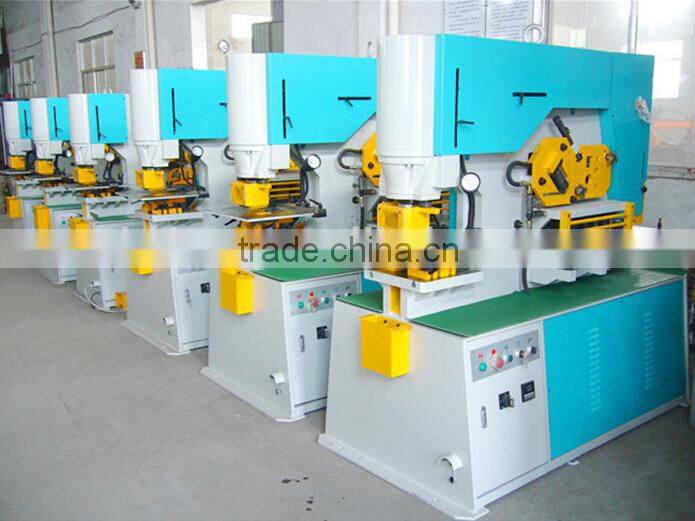

Q35Y series hydraulic ironworker adops hydraulic driving system. Ironworker can cut punch all kinds of holes. Various metal plates, square bar, angle steel, round iron, flat bars, profiled bars, channel steel and joist steel can be cutted, punched and notched on the machines.

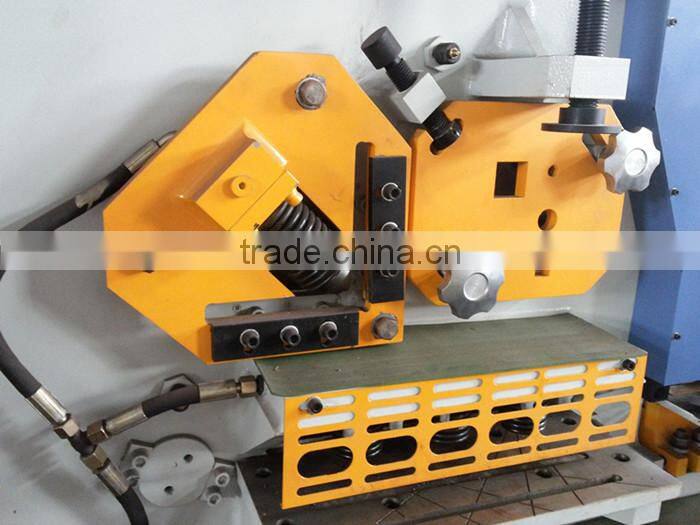

•Round and square bar shearing: there are multiple holes for a varity of sizes. Adjuatable hole down device is convenient for shearing various sizes of roud and square bar, channel, joist, etc.

•Flat bar shearing:large15' squraing arm with inlaid scale as standard equipment. Special anti-disorted blade for quality cutting. Lower blade has four usage edges. There is screw allows for gap adjust no shim needed.

•Angle iron sharing:the angle iron shear has the ability to cut angle iron at 45 degree & 90 degrees with diamond shaped blade. e.g.

This gives the operator the ability to make a picture frame corner for perfect welds.

•Diamond shapped blade for quality cuts that is minimao material wast. Easily adjustable hold-down device for accurate plate cutting.

•Large viewing window on stripper.

•Swing-away design for esay operation

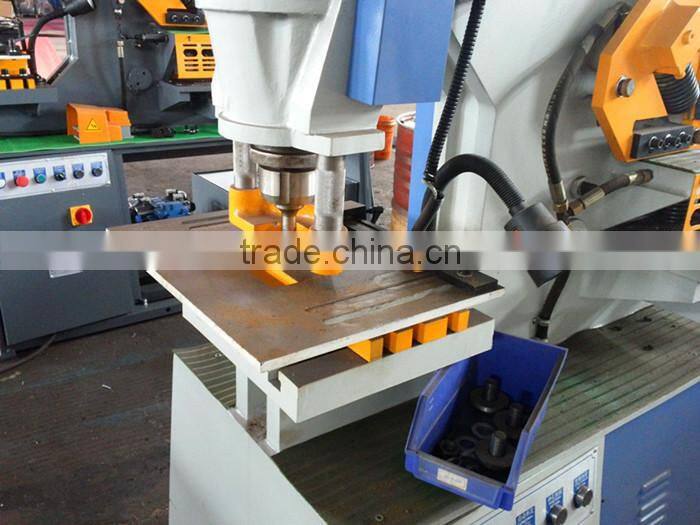

•Available unique style allows for large angle iron punching and large channel punching.

•Quick change coupling nut and sleeve for rapid replacement change.

•Large two pieces gauging table with rules and stop as standard equipment.

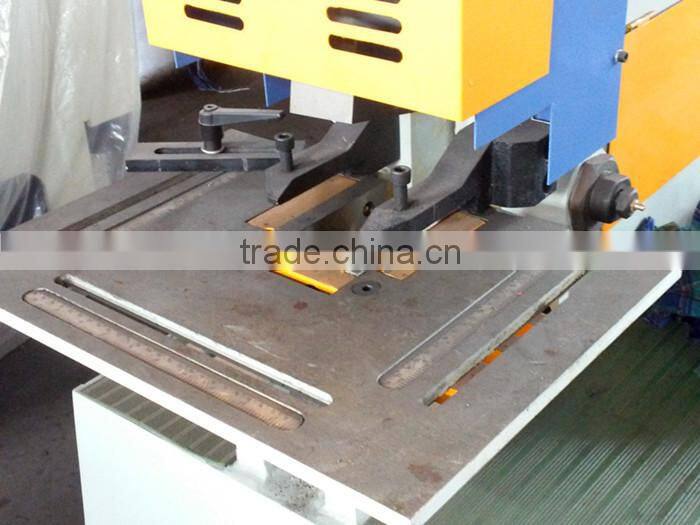

•Unique design for unsurpassed cutting of angle and flat bar.

•Electrical interlock safety guard and three gauging stops for precise positioning.

•With ventilated device for good visibility.

•The notching station also has an oversized table with material stops.

Ironworker Electrics

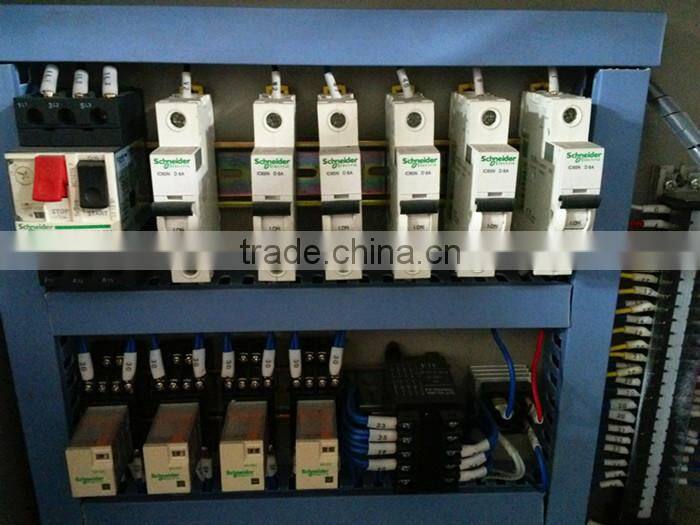

•Electric components are from European, in accordance with internationl standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted en electrical cabniet.

•Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.

•Emergency stops on machine and foot switch for safety, foot pedal conforming to CE regulation.

•Large contact button for high efficiency productivity.

Hydraulic system

Container is to be free of holes, vents closed, door seals in good condition to keep moisture out.

Container Bracing: QC12K cnc hydraulic shearing machine is to be strapped with wire or webbing to ensure it evenly within the container.

If wood is used, it must be heat treated and  must comply with U.S. regulations.

Container Packaging: Wrapped in plastic to protect from getting wet.
