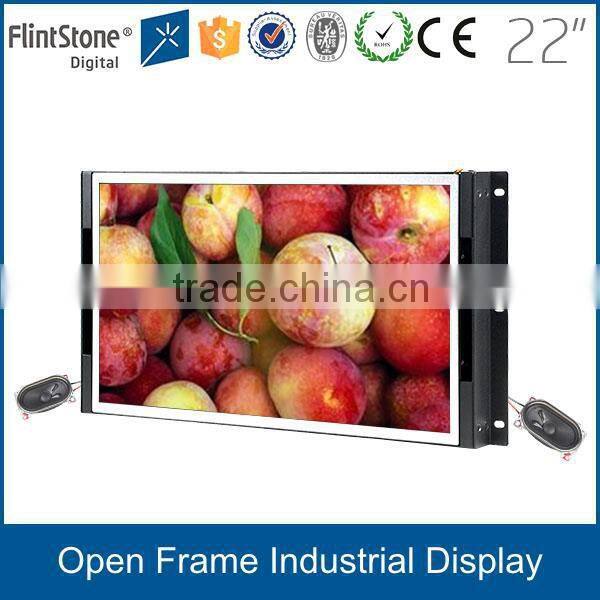

FlintStone 22 Inch HD Tft Lcd VGA Monitor, Frameless Display Monitor, Industrial Open Frame Monitors

FlintStone 22 inch HD tft lcd VGA monitor, frameless display monitor, industrial open frame monitors

What features of our industrial open frame monitors  ?

 1. Industrial-grade design, heavy-duty built for non-stop loop-playing 24/7/365

 2. Rich signal input ports: HDMI / VGA / BNC / AV and more

 3. Metal shielding structure, anti-radiation, anti-static, anti-magnetic, anti-interference

 4. Latest fan-less design, noise-less, dust-less, no potential damage of moving mechanical parts, no potential over heating hazard

 5. Open frame structure: highly flexible and customizable to embed into your furniture, store shelf, wall, or any other objects as per your needs

 6. Our engineers can provide design service as per your special needs

What functions of our industrial open frame monitors ?

1. Solid open frame structure and flexible brackets for embedding

2. Adopt latest 3D digital filtering and 3D digital noise reduction technology

3. Professional industrial A+ LCD panel

4. 1080P HD; 16.7M color, true presentation of all the details

5. High brightness, high color gamut, high contrast ratio to improve the image performance

6. 5ms response time; 60,000 hours life span

7. With both flexible push buttons and IR remote control

What are the specifications of our industrial open frame monitors   ?

1. LCD screen

  LCD size: 21.5 inch

  Active area: 476.64mm (H) X 268.11mm (V)

  Screen ratio: 16:9

  Resolution: 1920 X 1080

  Brightness: 250cd/m2

  Contrast ratio: 1000:1

  View angle: L / R / U / D (85° / 85° / 80° / 80°)

  Pixel: 0.2482mm X 0.2482mm

  Color: 24 bit

  Vertical synchronization range: 50-75 HZ

  Horizontal synchronization range: 30-80 KHZ

2. Video

  Color system: PAL, SECAM, NTSC, etc.

  3D comb filter: yes

  3D de-interlace: yes

3. Input and output

  VGA input interface: X 1 (D-Sub 15 pin female)

  HDMI input interface: X 1 (19P standard HDMI interface)

  AV input: X 2 (BNC interface)

  AV output: X 1 (BNC interface)

  Audio input: X 1 (headphone socket)

  Audio output: X 1 (headphone socket)

4. OSD display (screen menu display)

  Menu language: Chinese, English

5. Casing

  Casing material: steel

  Casing color: black

  VESA pitch: 100mm X 100mm,Φ 6mm

  Function buttons: 7 buttons

  AC cable length: 1.5 M

6. Others

  Power consumption: AC100~240V 1A(MAX)

  Standby power consumption: <1W

  Speaker power: 2 X 8 Ω / 5 W

  Body size: 565mm (L) X 297mm (W) X 35mm (H)

  Net weight: 8kg

  Package: neutral packaging

  Accessories: power adapter, remote control, etc.

  Standard bracket: L shape bracket

  Application environment: indoor

  Working temperature: 0℃ - 45℃

   Storage temperature: -20℃ - 45℃

   Working humidity: 20% - 80%

  Storage humidity: 10% - 95%

industrial open frame monitors     photos

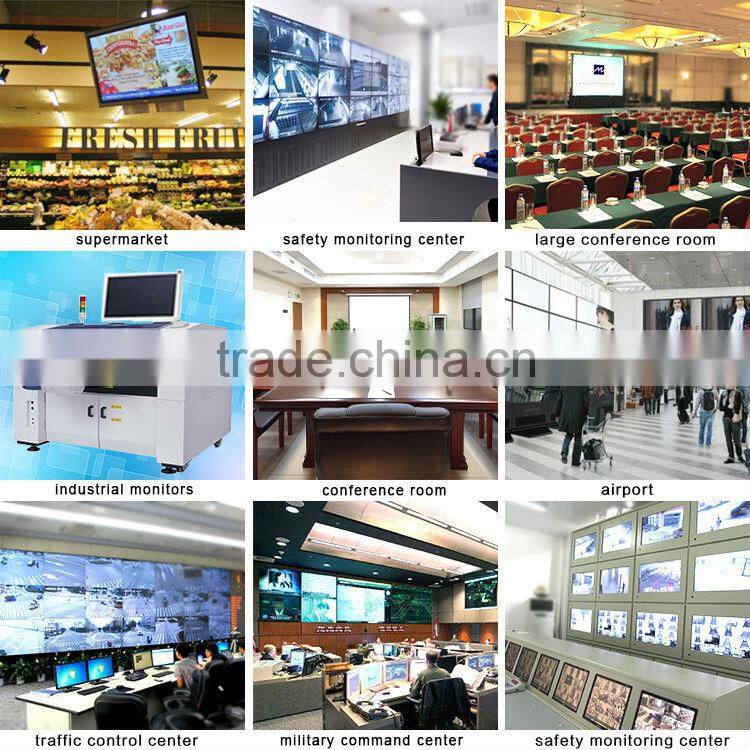

What is the application of industrial open frame monitors    ?

- Post ads

- Publish the latest information
- Real-time news
- The latest product photos
- Exhibition information
- Corporate incentive information
- Welcome Board
- Brand promotion
- Product promotion
- Entertainment platform
- Education platform
- Information sharing
- Media platform operation

  More ... ...

- Industrial display

- Traffic control room

- Video wall

- Corporate board room

- Exhibition center

- Video conference room

- Government bodies

- Product promotion

- Entertainment platform

- Education & training

- Military command room

- Public data

More ... ...

Our certifications

Who are we?

Southern Stars Enterprises Co Ltd has focused on the original R&D, OEM & ODM of electronic and functionality designing and manufacturing of over 100 models of HEAVY DUTY digital signage player, 22" metal bezel lcd open frame use for game machines (LCD CCTV monitor) and interactive flat panel display (ifpd) since 1996. We have been relentlessly striving to achieve excellent quality level, going to great length to tackle any tiny quality defects.

We provide most durable and stable long hour loop-playing industrial-grade products to the world market of commercial usage; we also provide heavy duty while user-friendly internet digital signage system (with CMS system) and to satisfy our customers with specialist consultancy and sincere service.

Clients & business partners

Trade terms

1. Payment methods: we accept T/T, PayPal , L/C , Western Union

2. Production lead time: 3-4 working days for sample, about 25 working days for massive order.

3. We offer 12 months quality warranty.

Product packing

Why choose us?

1. With rich experience in this field since 1996, we truly understand your need for heavy duty industrial-grade products; all our products are industrial-grade designed, heavy-duty built for non-stop loop-playing 24 / 7 / 36.5. They are durable, stable, solid and tough like a rock.

2. All our products go through 72 hours of high temperature aging test before delivery; defective rate is less than 0.1%. We are the only one manufacturer to apply this rigorous testing method.

3. We always deliver on time as we promise.

4. We are proud to be appointed supplier for many Fortune 500 companies, such as Bosch, ICI Dulux, Toys ”R” Us, Siemens, etc. We are THE specialist; let us serve you with our professional experiences and specialties.
