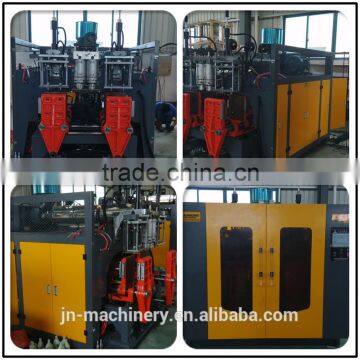

JN-2S2L/T Automatic Extrusion Blow Molding Machine

Machine Features:

-The screw adopts high potency melt to make sure the material well mixed.

-Adopt frequency control of motor system to reduce the power consumption.

-Adopt horizontal movement frame to improve stability and speed.

-The oil cylinder is in the center of the moldboard, uniform stress for quality products and increase life span.

-High stench guild rod controller the mold open and clamp, to enhance the steadily and high efficiency.

-The extrusion head use spreader or screw type to well mixed the thickness and easy to change different color.

-Advanced design to eliminate the melt material degrade in the runner, to avoid the perform draw-down and the welding line.

-The precise time control system assured good quality, suitable weight and reduces production cycle.

-Freely to move the extrusion foundation backward or forward to make the exchange of the mold easy.

-Multi-function bottom blowing type for shaped products.

-The mechanical arm can take out the product automatically.

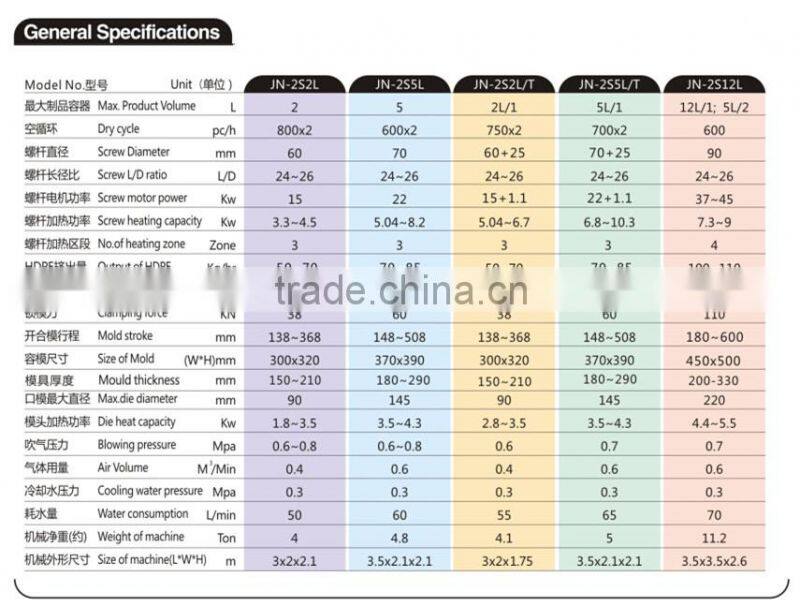

Machine general specifications:

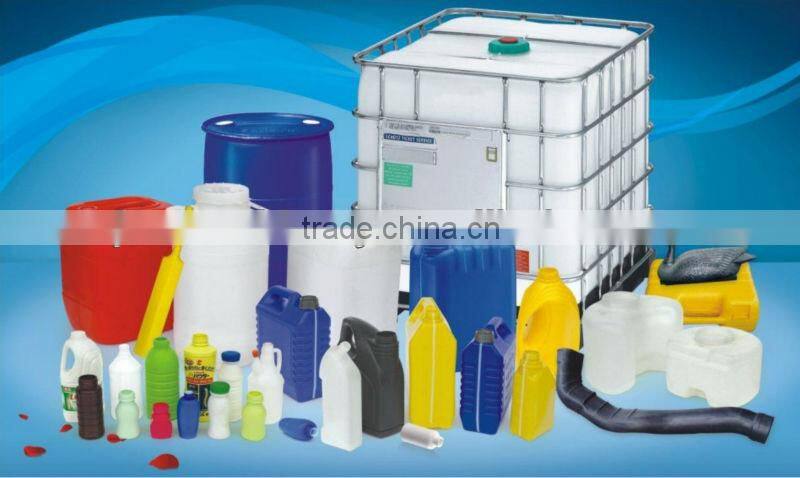

Machine production possibilities:

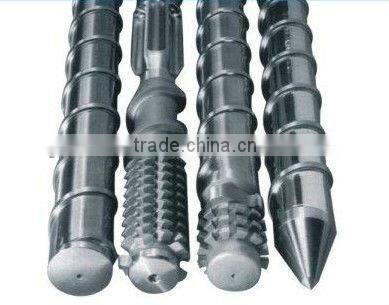

Extruding system:

Various screw design for high efficiency of mixing and elasticizing the quality.

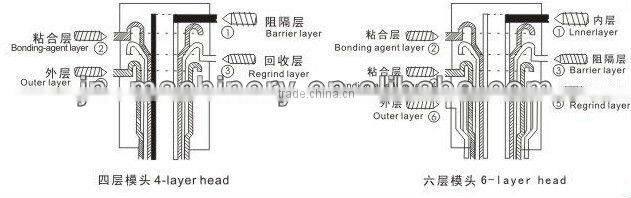

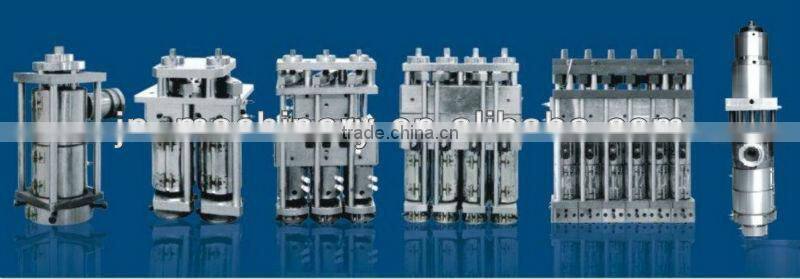

Diehead system:

1-layer single diehead, 2-layer double diehead, 2-layer diehead with view stripe by centre feeding of out layer. Trible diehead. 3-layer, 4-layer, 5-layer, 6-layer diehead.

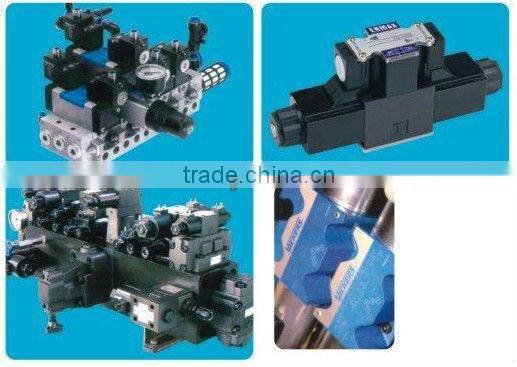

Hydraulic pattern and pneumatic system:

We adopt the oil circulation system from America Vickers or Japan YUKEN. The selecting of oil pump, circulation board and the unique filter system, makes the oil circulation with faster speed, stability in reducing speed, low noise, energy conservation and long duration.

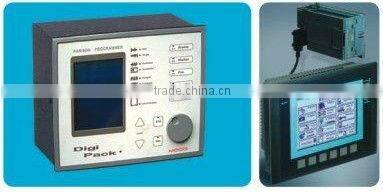

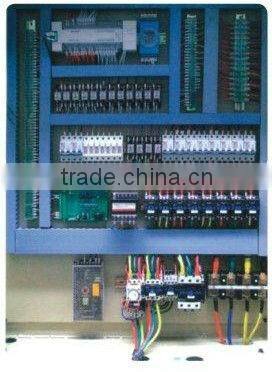

Electrical controlling system:

On the basis of our rich experience in extrusion field, we all adopt high quality pneumatic accessories, and in accordance with the requirement of each extrusion blow products, we design different blowing article, air exhausting, air dryness and so on blow system.

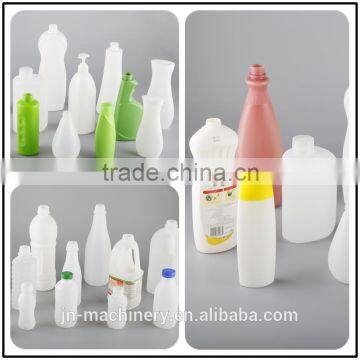

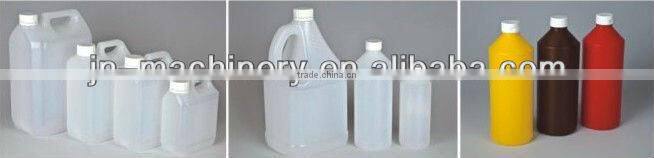

Machine products:

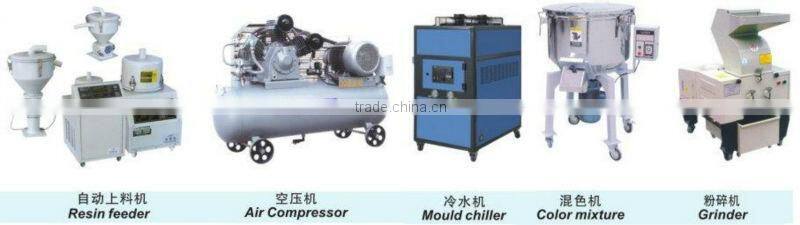

Auxiliary machine need:
