Home > Products > deep groove ball bearings > china manufacture 6203 size 17*40*12 mm deep groove ball bearing

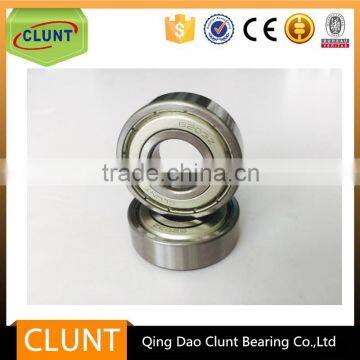

china manufacture 6203 size 174012 mm deep groove ball bearing

FOB Price

US$ 0.45 - 6.5 / Set

1 Set(Min. Order)

Port Qingdao Shanghai Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	clunt,oem,all brands, Customized	Bore Size	0, 17
Outside Diameter	0, 40	Model Number	deep groove ball bearing6203
Precision Rating	ABEC 5 ABEC7 ABEC11	Seals Type	OPEN ZZ 2RS RS
Number of Row	Single Row	Place of Origin	Shandong, China

Product Description

china manufacture 6203 size 17*40*12 mm deep groove ball bearing

Product Description

What is the specifications of Deep groove ball bearings?

Deep groove ball bearings are the most typical rolling bearings with the characteristics of simply designed structures,convenience in operation and extensive application.They are designed as non-separable bearings.The raceways in both of the rings are in arc groove form which can carry radial load and double directions axial load. They are of features of low friction factor, and high limit rotational speed and they can be applied in the situations where high rotational speed and low noise and low vibration are required. Applications of these bearings can be found in automobiles, machine tools, motors, instruments, construction machinery, railway vehicle, agricultural machinery and other special machinery.


Model Number	deep groove ball bearing 6203
Brand	clunt or OEM
Inner size	40 MM
Outer size	17 MM
Cage and material	TH glass fiber reinforced phenolic resin/ Pressed Steel & Brass
Row number	Single row & Double row
Bearing material	Chrome steel(bearing steel), Gcr15, Stainless steel, Ceramic, Plastic are all available
Raceway	Deep Groove Raceway
Usage	These deep groove ball bearing products are widely used in metallurgy, power, petrochemical, construction machinery, railway, steel, papermaking, cement, mining and other industries. They are widely used of vehicles, motorcycles, home electrical appliances, electric tools and mineral machineries. With adequate supply, large stock and convenient transportation, we warmly welcome new customers to visit us.
Features	Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders). Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. Standard ball retainers (cages) are made from pressed steel. Machined cages are used in bearing operation at very high speed or for large diameter bearings.
Deep groove ball bearing types	1, single row deep groove ball bearings 2, single row deep groove ball bearings with dust cover 3, with a dust cover, a ring of single row deep groove ball bearings 4, the outer ring on the stopper groove and snap ring of single row deep groove ball bearings 5, deep groove ball bearings ball gap 6, double row deep groove ball bearings In accordance with the sizes of deep groove ball bearings can be divided into: (1) miniature bearings ---- nominal diameter size range of 26mm bearings; (2) small bearing ---- nominal diameter size range of 28-55mm bearings; (3) small and medium-sized bearings ---- nominal diameter size range of 60-115mm bearings; (4) large bearing ---- nominal diameter size range of 120-190mm bearings (5) large bearing ---- nominal diameter size range of 200-430mm bearings; (6) ---- large bearing diameter size range of 440mm or more bearings.

deep groove ball bearing 6203

deep groove ball bearings series

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
N0.	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
604	4	12	4	0.2	0.97	0.36	36000	44000	0.0021
605	5	14	5	0.2	1.33	0.505	32000	40000	0.0035
606	6	17	6	0.3	2.19	0.865	30000	38000	0.006
607	7	19	6	0.3	2.24	0.91	28000	36000	0.008
608	8	22	7	0.3	3.35	1.4	26000	34000	0.012
609	9	24	7	0.3	3.4	1.45	24000	32000	0.014
6000	10	26	8	0.3	4.55	1.96	22000	30000	0.019
6001	12	28	8	0.3	5.1	2.39	19000	26000	0.021
6002	15	32	9	0.3	5.6	2.83	18000	24000	0.03
6003	17	35	10	0.3	6.8	3.35	17000	22000	0.039
6004	20	42	12	0.6	9.4	5.05	15000	19000	0.069
6005	25	47	12	0.6	10.1	5.85	14000	18000	0.08
6006	30	55	13	0.6	13.2	8.3	12000	15000	0.116
6007	35	62	14	1.0	16	10.3	10000	14000	0.115
6008	40	68	15	1.0	16.8	11.5	8000	11000	0.19

6200 Series Miniature Deep Groove Ball Bearing

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
N0.	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
624	4	13	5	0.2	1.15	0.4	36000	45000	0.0032
625	5	16	5	0.3	1.76	0.680	32000	40000	0.0050
626	6	19	6	0.3	2.34	0.885	28000	36000	0.0080
627	7	22	7	0.3	3.35	1.400	26000	34000	0.0130
628	8	24	8	0.3	4.00	1.590	24000	32000	0.0170
629	9	26	8	0.3	4.55	1.960	22000	30000	0.0190
6200	10	30	9	0.6	5.10	2.390	19000	26000	0.0300
6201	12	32	10	0.6	6.10	2.750	18000	24000	0.0360
6202	15	35	11	0.6	7.75	3.600	17000	22000	0.0460
6203	17	40	12	0.6	9.60	4.600	16000	20000	0.0650
6204	20	47	14	1.0	12.80	6.650	14000	18000	0.1070
6205	25	52	15	1.0	14.00	7.850	12000	16000	0.1250
6206	30	62	16	1.0	19.50	11.300	10000	13000	0.2010

6300 Series Miniature Deep Groove Ball Bearing

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
N0.	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
6300	10	35	11	0.6	8.2	3.5	18000	24000	0.053
6301	12	37	12	1.0	9.7	4.2	17000	22000	0.06
6302	15	42	13	1.0	11.4	5.45	16000	20000	0.082
6303	17	47	14	1.0	13.5	6.55	15000	19000	0.115
6304	20	52	15	1.1	15.9	7.9	14000	17000	0.144

6800 Series Miniature Deep Groove Ball Bearing

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
N0.	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
685	5	11	3	0.15	0.715	0.282	35000	45000	0.0011
686	6	13	3.5	0.15	1.08	0.44	33000	42000	0.0019
687	7	14	3.5	0.15	1.17	0.505	31000	40000	0.0021
688	8	16	4	0.2	1.61	0.715	29000	38000	0.0031
689	9	17	4	0.2	1.72	0.82	28000	36000	0.0032
6800	10	19	5	0.3	1.83	0.925	26000	34000	0.005
6801	12	21	5	0.3	1.92	1.04	22000	30000	0.006
6802	15	24	5	0.3	2.08	1.26	20000	28000	0.007
6803	17	26	5	0.3	2.23	1.46	19000	26000	0.008
6804	20	32	7	0.3	4	2.47	17000	22000	0.019
6805	25	37	7	0.3	4.3	2.95	15000	19000	0.022
6806	30	42	7	0.3	4.7	3.65	13000	17000	0.026
6807	35	47	7	0.3	4.9	4.05	11000	15000	0.029

6900 Series Deep Groove Ball Bearing

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
N0.	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
693	3	8	3	0.15	0.56	0.18	44000	52000	0.0006
694	4	11	4	0.15	0.715	0.276	38000	47000	0.0018
695	5	13	4	0.2	1.08	0.43	34000	43000	0.0024
696	6	15	5	0.2	1.35	0.53	32000	40000	0.0038
697	7	17	5	0.3	1.61	0.715	30000	38000	0.0052
698	8	19	6	0.3	1.99	0.865	28000	36000	0.0073
690	9	20	6	0.3	2.48	1.09	27000	34000	0.0082
6900	10	22	6	0.3	2.7	1.27	25000	32000	0.009
6901	12	24	6	0.3	2.89	1.46	20000	28000	0.011
6902	15	28	7	0.3	3.65	2	19000	26000	0.016
6903	17	30	7	0.3	4.65	2.58	18000	24000	0.018
6904	20	37	9	0.3	6.4	3.7	17000	22000	0.036
6905	25	42	9	0.3	7.05	4.55	14000	18000	0.042
6906	30	47	9	0.3	7.25	5	12000	16000	0.048
6907	35	55	10	0.3	9.55	6.85	10000	14000	0.074

Technology equipment

Great bearings must be checked by the following process:length measuring instrument,

bearing vibration measurer,angle neasuring instrument ,profile measurement,roughness

measurement,metallographic examination,roundness measurement,and bote bearing.

Product Uses

Applications of bearings can be found in automobiles, machine tools, motors,instruments, construction machinery, railway vehicle, agricultural machinery ,windmill and other special machinery.

Contact Us

Qingdao Clunt Bearing Co., Ltd.: Contact namelisa jiang
Chat Now; Phone86-0532-89082076; Addresschengyang, Qingdao, Shandong

*Email
Please enter Your valid email address.
*To

lisa jiang
*Message
Your inquiry content must be between 20 to 5000 characters.
Please enter a correct verification code.

Product Categories

pillow block bearings	Thrust roller bearing	thrust ball bearing	tapered roller bearings
special bearing	skateboard bearing	self-aligning roller bearings	self aligning ball bearings
rod end bearing	plastic bearings	angular contact ball bearings	NSK NTN KOYO NACHI
New Products	needle roller bearings	linear bearing	HOT PRODUCTS
deep groove ball bearings	cylindrical roller bearings	Ceramic bearing	auto bearing

Service	OEM service
Deliver time	Normally ready goods in stock
Package	Standard exported package or according to our costomers' requirement
Port	Shanghai, Qingdao, Guangzhou
Payment terms	A:TT,West Union
Payment terms	B:Paypal (5% commission for your account)

	CLUNT BEARING As a bearing manufactury, we bear quality!
	Name	Amy yu
	Adress	210 room,international trade building,Cheng Yang,Qingdao,China

	Mob	+86-18863969965
	Skype	Cluntbearing05
