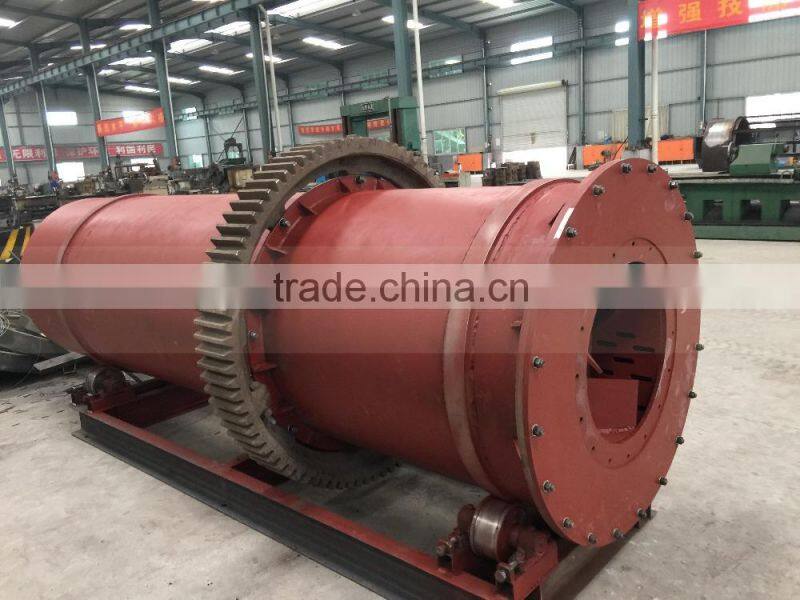

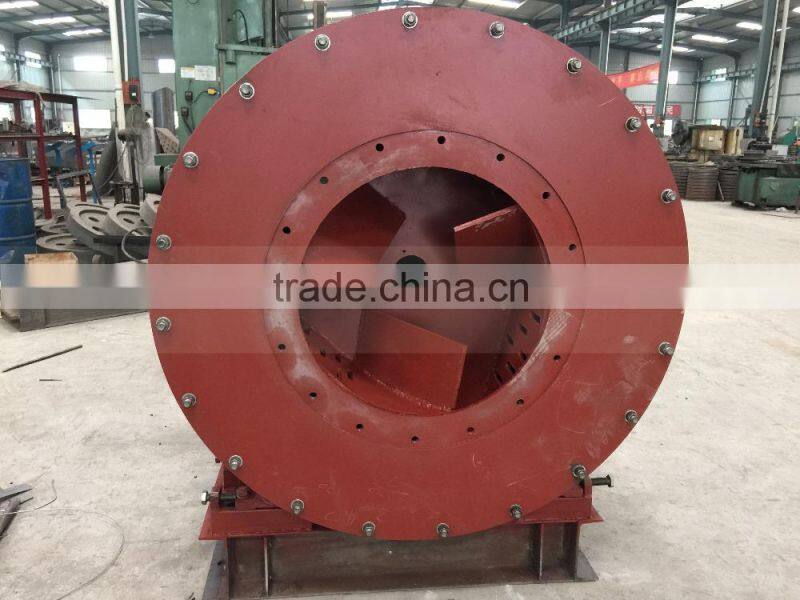

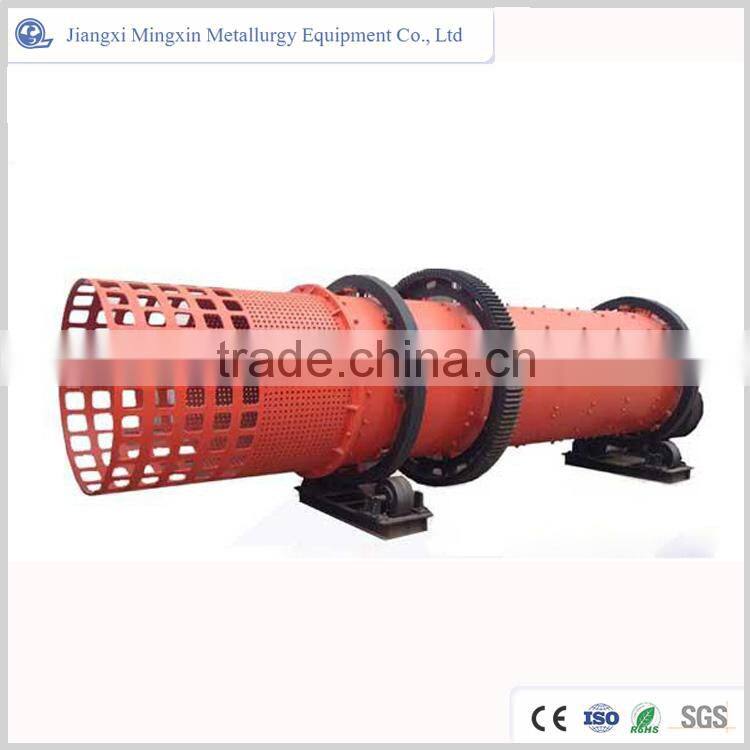

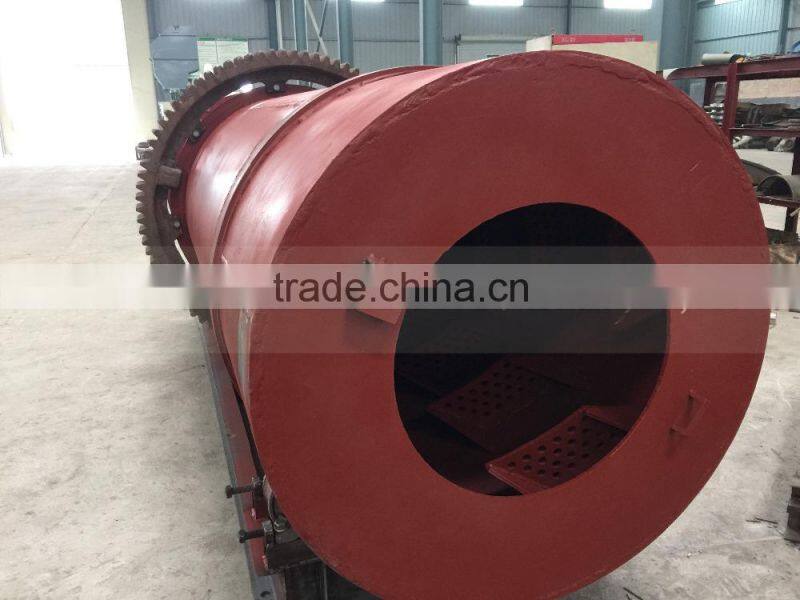

High Capacity Rotary Drum Stone Washing Machine, Ore Washer for Remove Impurities

rotary drum ore washing machine description

Ore drum washing machine is also known as ore cylinder washing machine,widely use in ore material which impurities, mud content more and high cleaning requirements preorder washing and screening,also be used for stirring, washing, mineral separation, desliming,a variety of hard to wash bulk ore materials for cleaning etc.washing efficiency can reach 98%,the device is currently the most effective method to the ore that difficult to wash .Drum washing machine is suitable for ferrous and non-ferrous metallurgy, mining, iron and steel, metallurgy, chemicals, building materials industry cleaning,is the ideal equipment for the enterprises which have high cleanliness requirements to the ore and material.

  working principle of rotary drum ore washing machine

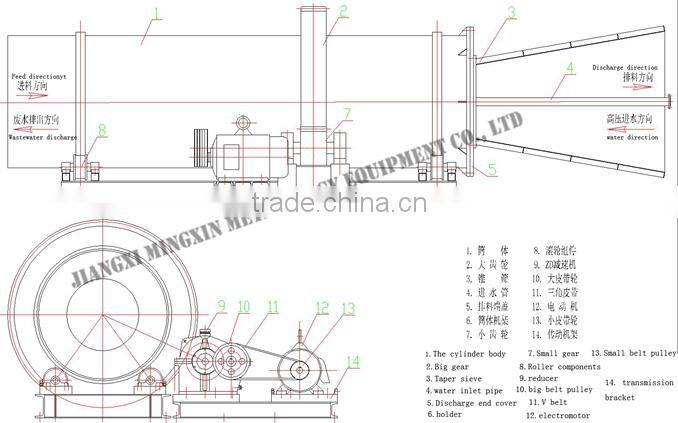

  The cylindrical body supported by four roller,motor driven speed reducer,gear make low-speed rotation of the cylindrical body.the ore material with impurities, mud into the cylindrical body from the inlet,be take up and thrown down by the guide plate with a certain Angle in the cylinder,moving from the feeding end to discharging end , be washed and cleaned by reverse flow at the same time,clean ore material through the riser to lift single or multi-layer cone screen,sieving into coarse, medium and fine particles( three levels)and discharging,waste water containing sludge and impurities flowing through the feed end of the bezel
