Home Appliance Circuit Boards Recycling Machine

Company's new R & D winnowing of the circuit board recycling machine is using dry crushing and grinding the waste or scrap circuit board materials into metal and non metal fiber resin powder mixture.

In order to prevent the dust pollution in the process, we researched and developed wind separation circuit board recycling machine, by using cyclone dust collector, combined with pulse dust collector can effectively solve the problem of dust pollution, it reached the national standard.

The main features of circuit board recycling machine:

Low noise, no water, no dust pollution, high recovery, save power and resources, no waste, 97% metal and non-metallic full recovery and utilization.

Circuit board recycling machine working principle

Circuit board and other raw materials after crushing, grinding, grading the silo mixture of metal and non metal mixture into the wind separator, the separation zone and then enters the separator, the separator connect dust removal system and form horizontal airflow, make the material horizontal moving, at the same time as the material gravity, the material produce the vertical downward movement, because of different proportion of different mixed materials, through separation plate separator, a lesser proportion of the fine dust particles and other non-metallic materials are taken by the dust removal system away, heavy metal materials by grading board enter into product recovery zone. Finally PCB recycling plant reaches the separation between metal and non-metal.

Application

LED mobile phone PCB, washing machine PCB, induction cooker PCB, air conditioner PCB, leftover material, scrap circuit board, copper clad laminate, etc.

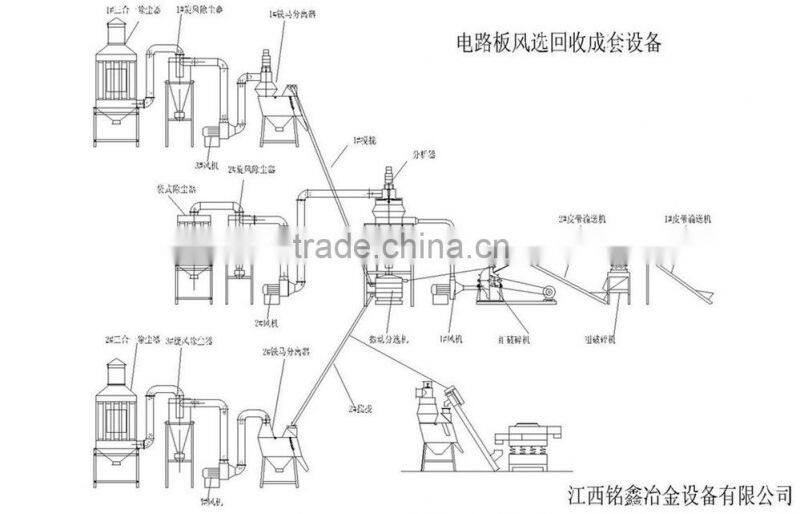

Flow chart

Technical parameters of  circuit board recycling machine

 Steps:

1. Electric components dismantling;

2. Primary shredder;

3. Scecondary PCB crusher;

4.Air separation (copper, resin& fiber mixture);

5. Cyclone collector & Pulse dust collector.

Pls come in our official website and watch the video.

/Video.html

PCB Recycling Machine (Primary Crusher: MX-800*1100 Intelligent Shredder)
