Rg174 Rg316 Rg178 rf Coaxial Cable Connector With RP-SMA Male to RP-SMA Female RF Connector

Specifications

rf coaxial cable connector rg174 rg316 rg178

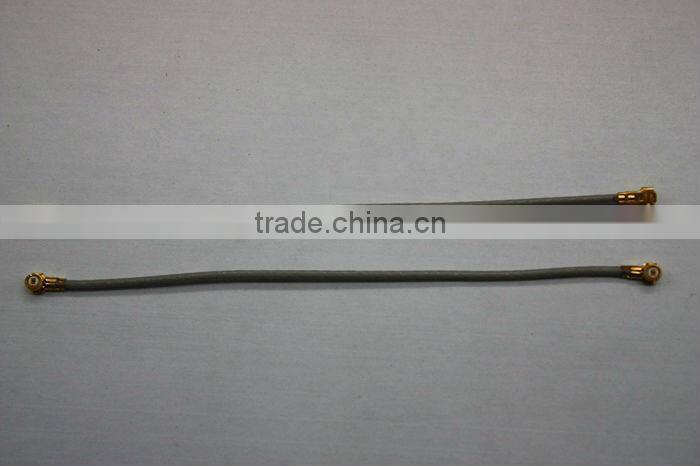

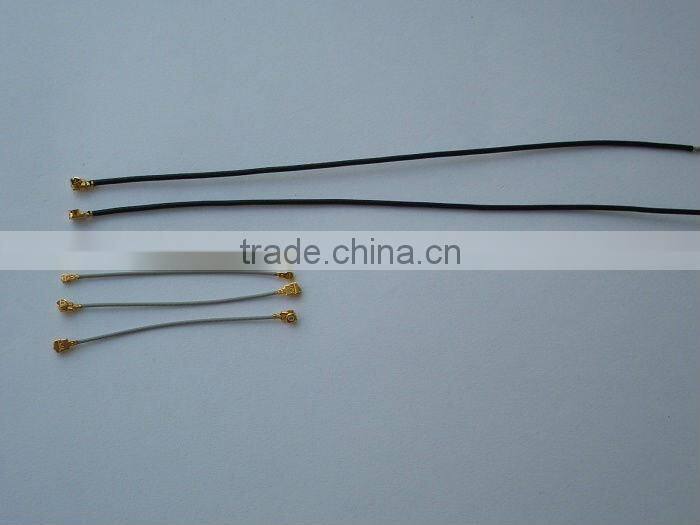

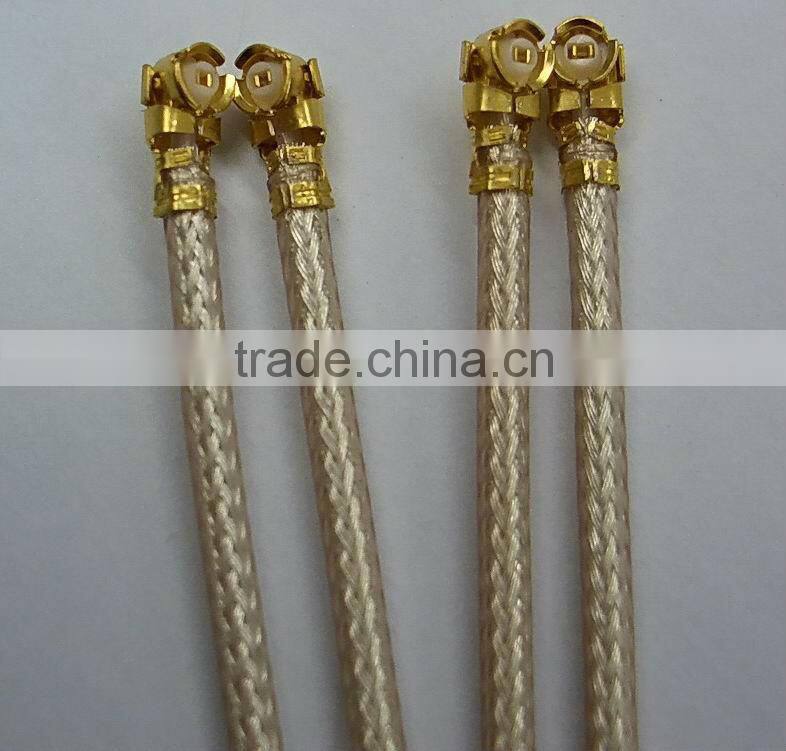

75 Ohm RF Coaxial Cable Assembly with I-PEX Plug to I-PEX Plug and Ø1.37mm Cable
1.gold plated braid and connector.
2.SMA connector.
3.apply to communication equipment

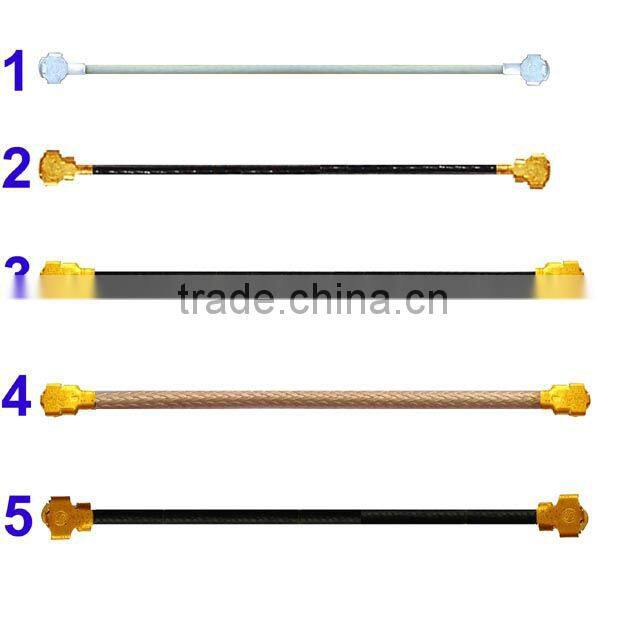

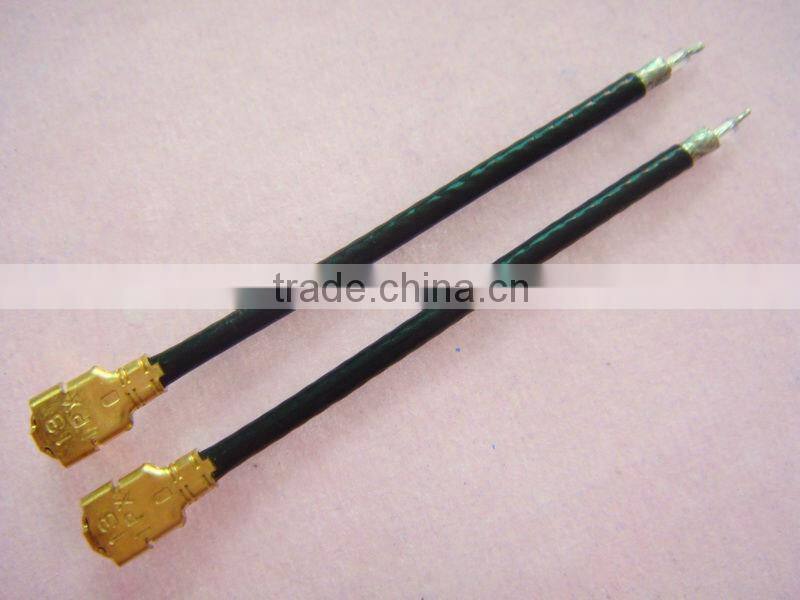

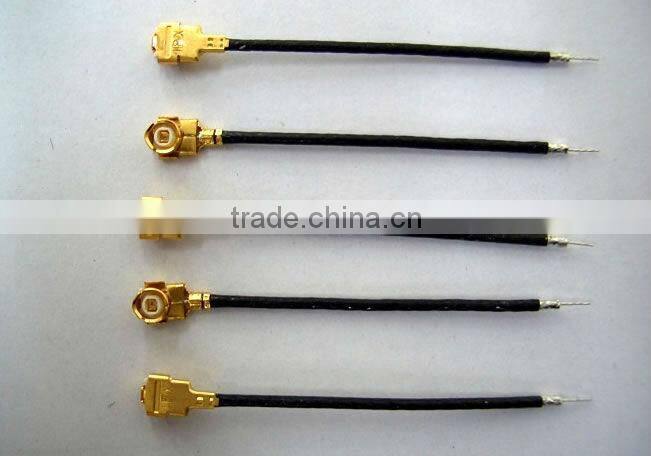

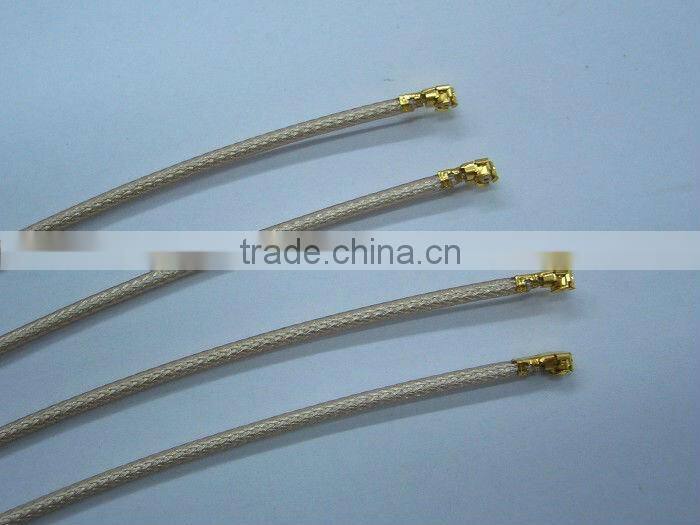

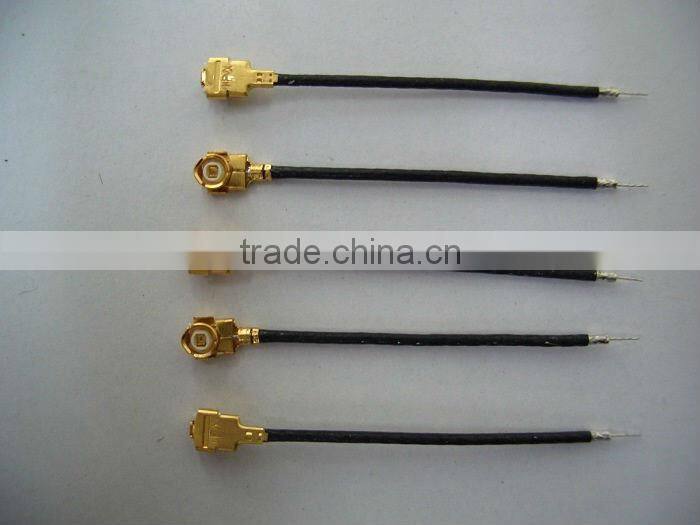

IPEX / I-PEX / IPX MHF Series Miniature Micro Coaxial Connector
Features:
SMT Receptacle and Mating Plug Cable Connector
Small form factor and low profile: 1. 5mm to 2. 5mm Max. Mating Height
Applicable 0. 81mm / 1. 13mm / / 1. 32mm / 1. 37mm / RG178
Applicable Technology: IEEE802. 11 a / b / g / n, UWB, WiMax, iBurst, Zigbee, Bluetooth Wireless and MIMO
Specification
Frequency Range: DC to 6GHz (VSWR: 1. 3max. )
Characteristic Impedance: 50 ohm
Temperature: -40 to 90
Rated Voltage: AC 60V
Contact Resistance: 20m ohm Max. (Signal) and 10m ohm Max. (Ground)
Withstand Voltage: AC 200V
Insulation Resistance: 500M ohm Min. / DC 100V Specifications

rf coaxial cable connector rg174 rg316 rg178

Technical Specifications:

Impedance:50Ω

Frequency Range:DC to 6GHz

Working Voltage Rating: 375  VRMS

VSWR: 1.30 MAX  0-3GHz

          1.40 MAX  3-6GHz

Insulation Resistance: 5000MΩ Min

Center Conductor Contact Resistance: 2mΩ Max

Outer Conductor Contact Resistance: 2 mΩ Max

Materials:

Body: Brass

Center Contact: Brass

Insulator: PTFE

Surface Plated:

Body:  Gold Plating

Center Contact: Gold Plating

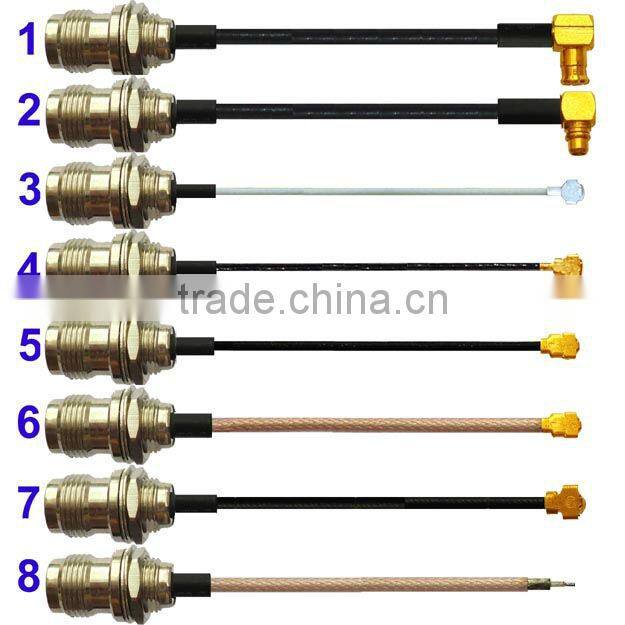

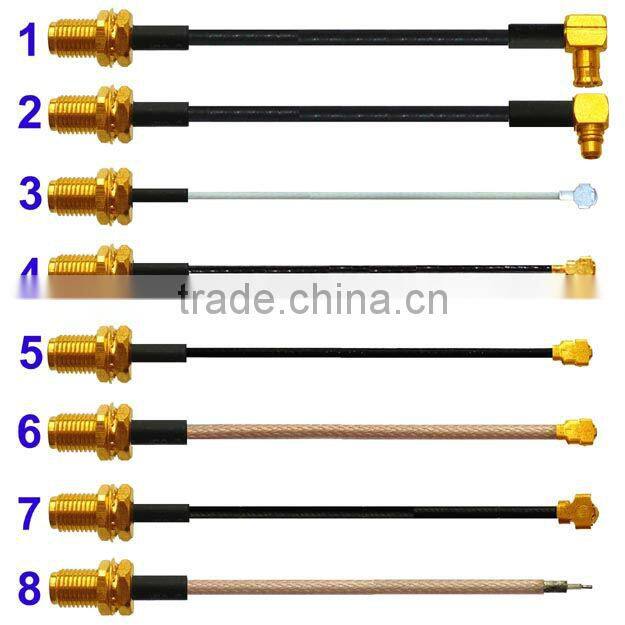

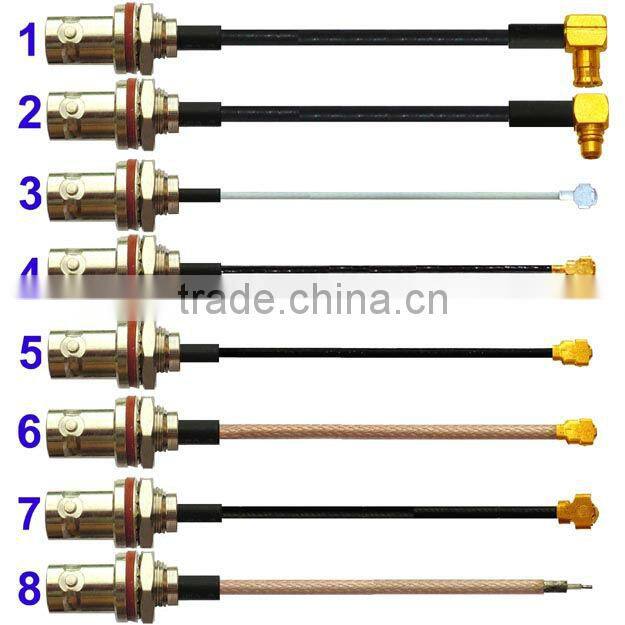

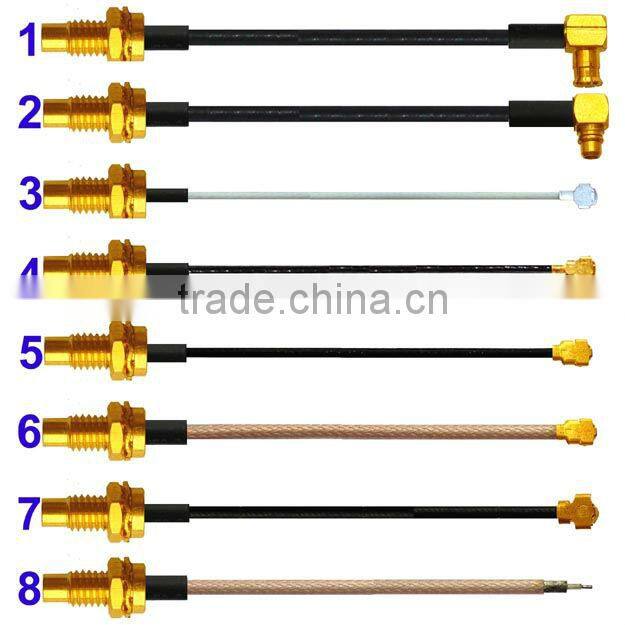

According to according to customer needs, can be equipped with the following specifications MINI
COAXIAL CABLE (0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm)
Jacket color : black, white, gray, brown , etc. and match a variety of RF connectors
(RF CONNECTOR: SMA SSMA MCX MMCX, SMB, BNC, TNV, N prime ) ,
The length of their products according to customers' needs to be fixed . Products comply with ROHS standard
