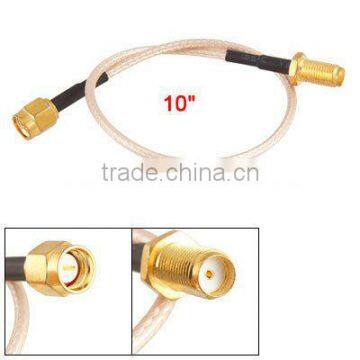

Rg316 Rg178 rf Coaxial Cable Connector Rg174
- Shenzhen or HK
 - T/T Credit Card

You May Like
-


Rg174 Rg316 Rg178 rf Coaxial Cable Connector With RP-SMA Male to RP-SMA Female RF Connector
 -


RP-SMA Male to RP-SMA Female Wifi Antenna Extension Cable
 -


12.4" RF Coaxial Coax Pigtail Cable With SMA Male Plug to SMA Female Jack
 -


SMA Male to Female Connector Antenna Extension Cable
 -


Sma Male to Sma Female Digital Coax Cable China Supplier
 -


rf Coaxial Cable Rg316 With Sma Male to Sma Female Connector

Product Details
| Place of Origin | Guangdong, China | Brand Name | NANGUDI | |
| Model Number | RG-S101 | Type | SMA | |
| Application | UHF | Gender | Other, MALE, FEMALE |
Product Description
Specifications
rf coaxial cable connector rg174 rg316 rg1781.gold plated braid and connector.
2.SMA connector.
rf coaxial cable connector rg174 rg316 rg178
75 Ohm RF Coaxial Cable Assembly with I-PEX Plug to I-PEX Plug and Ø1.37mm Cable
1.gold plated braid and connector.
2.SMA connector.
3.apply to communication equipment
IPEX / I-PEX / IPX MHF Series Miniature Micro Coaxial Connector
Features:
SMT Receptacle and Mating Plug Cable Connector
Small form factor and low profile: 1. 5mm to 2. 5mm Max. Mating Height
Applicable 0. 81mm / 1. 13mm / / 1. 32mm / 1. 37mm / RG178
Applicable Technology: IEEE802. 11 a / b / g / n, UWB, WiMax, iBurst, Zigbee, Bluetooth Wireless and MIMO
Specification
Frequency Range: DC to 6GHz (VSWR: 1. 3max. )
Characteristic Impedance: 50 ohm
Temperature: -40 to 90
Rated Voltage: AC 60V
Contact Resistance: 20m ohm Max. (Signal) and 10m ohm Max. (Ground)
Withstand Voltage: AC 200V
Insulation Resistance: 500M ohm Min. / DC 100V Specifications
rf coaxial cable connector rg174 rg316 rg178
Technical Specifications:
Impedance:50Ω
Frequency Range:DC to 6GHz
Working Voltage Rating: 375 VRMS
VSWR: 1.30 MAX 0-3GHz
1.40 MAX 3-6GHz
Insulation Resistance: 5000MΩ Min
Center Conductor Contact Resistance: 2mΩ Max
Outer Conductor Contact Resistance: 2 mΩ Max
Materials:
Body: Brass
Center Contact: Brass
Insulator: PTFE
Surface Plated:
Body: Gold Plating
Center Contact: Gold Plating
According to according to customer needs, can be equipped with the following specifications MINI
COAXIAL CABLE (0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm)
Jacket color : black, white, gray, brown , etc. and match a variety of RF connectors
(RF CONNECTOR: SMA SSMA MCX MMCX, SMB, BNC, TNV, N prime ) ,
The length of their products according to customers' needs to be fixed . Products comply with ROHS standard
