Supply Lead Acid Battery Recycling Process / Equipment

Supply lead acid battery recycling process / equipment

Processing flow Description

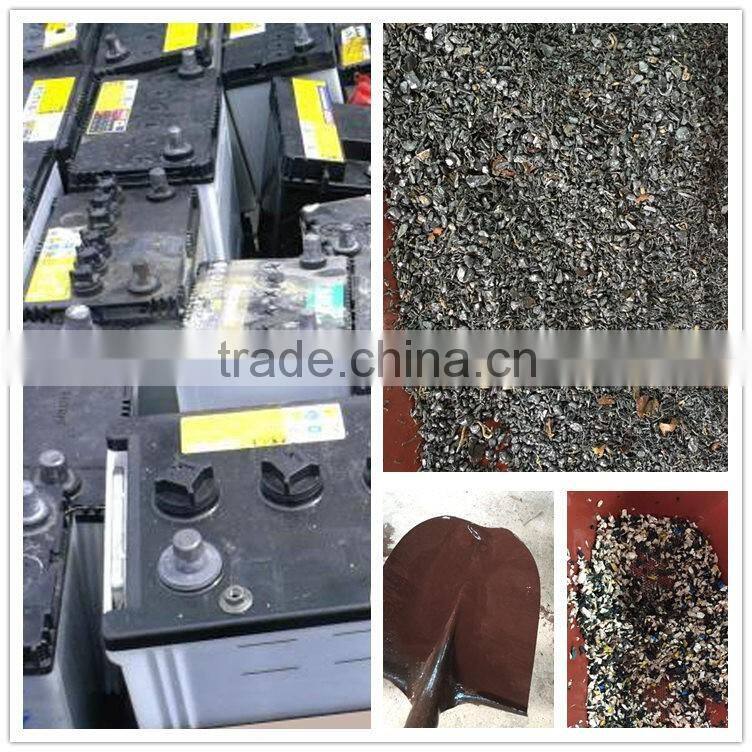

The lead battery recycling equipment, at first batteries be cut and collect acid water by automatic machine. Then grinding scrap batteries into metal and plastic mixture, Finally use the  gravity separation equipment separate the metal and plastic and obtain lead(or other metal) and plastic. This equipment has been combined the most advanced grinding and separation techniques in the world and adopted unique process technique. It works in enclosed environment and no waste water, drogs and poisonous gas give off during production.

    Auto Battery recycling plant is based on the advanced and reasonable mechanism process that can separate the LEAD and plastic from acid-lead battery. The recovery rate of lead can be 97%.

    This process is an ECO-friendly method instead of pollution way that is based on burning and chemical processing.

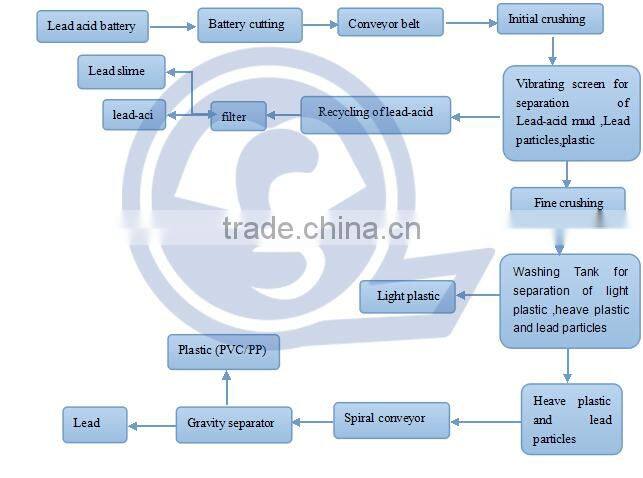

The process flow:

Our service

We can customize the completed Lead battery recycling plant

consisting of follow steps :

1. Battery breaking and separating

2. Paste desulfurization

3. Lead melting and reduction operation of paste

4. Melting of grid

5. Refining crude lead

6. Slag treatment

7. Plastic cleaning

8.Gas cleaning system

9.Acid neutralize and Effluent treatment

Please inform what`s  the capacity of per hour/day,we`ll recommend the suitable machine to you!

Project reference video

 Pls refer to: /watch?v=YXwyBULs0C8
