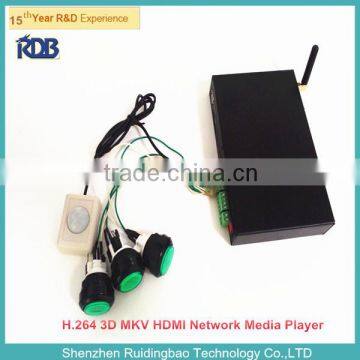

RDB Full HD 1080p Network Media Player with motion sensor and push buttons DS009-155

 A: Performance

1: Video performance:

MP4,MOV,AVI(DIVX, MPRG-4AVC(h.264) ,ASF,WMV9,FLV, MKV,RM/RMVB, TS(AVC,H.264), VOB,DAT

Especially for AVC (h264), TS, MOV,RM/RMVB

2: Audio performance

MP3, WMA (V7—9.1), MPEG1/2,WAV, MKA, LPCM, ADPCM,

AAC OGG, DOLBY AC3, DTS, RA-lossless, FLAC, APE, SRS

Especially for 24BIT /192K, APE, FLAC

3: Picture

JPEG, BMP,PNG,GIF, TIFF

B: Functions:

1:all the files put in the different folders,max folder No is 127

2:powerup then auto play the folder 00[J00], if folder name is 00, after play finish ,it will stop play

3:the every folder is made up one or two group digit, first part is the input key.

  Such as 100, if input is 100, it will play the folder start with 100XXX

  The second part is the jump option, such as 100[J22],

  After play finished, the folder 100[J22], I t will jump to folder 22xxx begin play

4: different folder ,we can show you following

  Please notice, the first part can not be the same.

 00[J00] power up , player will auto loop this folder

 00 power up, play once ,then stop

 00[J01] power up ,play end, then jump to folder 01xxx play

 01[J02] after play end jump to next 02XX folder

 02[J02] loop play the this folder, because 02 and J02 is the same digit

5: Photo and background music play.

  Copy the audio file and photo file in the same folder, while play this folder with photo, it will play the  background music

INPUT Interface

A: push button Interface

   The Player with two kind of button,

1: with Green terminal, can input 1,2,3,4,5,6, , if client require the differenent key, while order the product,

   we can free support

2: another one option, can connect 3 button with LED,

   (one pair is one button and one LED)

B: Relay Interface

  On the board, there is one Relay port, if client require this, there is one channel

  Relay control output (On the board, there is a Relay)

C: Wireless interface, this is for several player ,sync play function.

  (this is optional)

D: RS232/485 controll play

  On the player there is one RS485 port

 RS485 format:”9600,8,N,1”, baudrate=9600,8 bit data, no parity,1 stop bit.

  Format as follow.

“@0:2” or “@10:1”,@ is the mark of address ,after #,there is one or two digit, this is the address , after the colon,

there is one or two digit, this is the play key No, the end mark is the hex 0x0d or $

We also can input the command, such as “ @0:OK$” or “@0:NEXT$”,

@00:5$

Command list as follow

OK, ---Enter key

UP, ---direction key, up

REV –- reverse play

FWD --Fast forward play

REP --repeat play

MUTE –- Mute key

VOL+ --volume up

VOL- --volume down

STOP –-Stop Key

PREV –-previous key

NEXT –-Next key

ENTER –confirm key

LEFT --Left key

DOWN --right key.

SYNC -- this is a special key, trigger this key then go to the start of the file.

POWER –-Power on/off key

AUDIO –-change the audio channel

PAUSE –-pause key

RIGHT –right key

.

E:Lan function

A: connect to other computer

  First step: In the setup menu, find the Network, you can setup connecting to LAN by Wired Lan or wireless

  Lan, set the IP address .

  Second step: In the setup menu, Network item, set the USB Storage/Memory Card On

 After setup this then you can find this player at the computer, such as your player IP address is 192.168.0.10,

 then you input //192.168.0.10 this in computer address area, it will show the player information

B: Copy the file to player by computer

If you want to copy the file from the computer to player. Best way you should use the Hard disc , if you select

the Usb disc, you should pause the player then copy the file, because the Usb read/write speed is not fast

enough, so has to pause it then copy the file, if use the Hard disc, then no this problem.

C: with the FTP download

F: This player also supports External USB WIFI.

G:USB2.0

H: USB3.0 in the board.

I: One bit GPIO,,

J:SD Card

Output interface

1:HDMI1.4

2:CVBS

3:COAX (SPDIF)

4:Optical (SPDIF)

New functions:

This product is designed for supermarket advertisement.you can put many TV or screens in one place

( within the distance 100meters).there are two functions here:

1)All the TV or Screens will play the same content simultaneously.No HDMI Splitters. all the players transmit

and receive the signal by theantenna.

2) It can also sync different split videos to each screen and all the screens will appear a complete picture.

How to use?

 Just put your content in the USB or SD card,insert to each player.only important thing is remember to put

a configuration file in one USB,then this player would be the master player,other players would be the slave

players,then master player will send signal to other players so as to sync the content.
