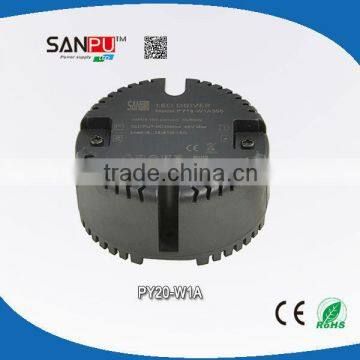

SANPU CE ROHS mini PY 20w 350ma ac dc switching led light driver

FOB Price

US$ 1 - 8 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

PY 20w 350ma ac dc switching led light driver
International AC input
100% full load burn-in test
Built-in EMI
PF:0.92

Features:

1. PY 20w 350ma ac dc switching led light driver .

2. The product consists of indoor type and outdoor type.

3. Convenient wiring.

4. Abnormality protection function : short circuit ,over load ,over voltage,over temp .

5. Various types for your choice:Constant Voltage Power supply and Constant Current Power supply.

6. Quality assurance: 2 years warranty.

7. High efficiency .

8. International AC input .

9. Built-in EMI fiter .

10.100% full load burn-in test .

PY Standard type PY30-W1A
MODEL		350mA 20W	700mA 20W
OUTPUT	DC CURRENT	350mA	700mA
	RATED VOLTAGE	81~105V	27~36V
	RATED POWER	20W	20W
	SETUP.RISE TIME	200ms 100ms
	HOLD UP TIME(Typ.)	30ms
INPUT	VOLTAGE RANGE	100-240VAC
	FREQUENCY RANGE	50/60HZ
	POWER FACTOR(Typ.)	PF>0.6/220VAC
	EFFICIENCY(Typ.)	≥80%	≥80%
	INRUSH CURRENT(Typ.)	COLD-START CURRENT20A/230VAC
PROTECTION	Short circuit	Protection Type:recovers automatically after fault condition is removed
	Overlaod	115%~135% hiccup mode,auto-recovery
	Over temperature	≥105%°C hiccup mode,auto-recovery
ENVIRONMENT	WORKING TEMP.	-20°C~+60°C
	WORKING HUMIDITY	20%~90%RH
	STORAGE TEMP.HUMIDITY	–40°C~85°C/10%~95%RH
SAFETY&EMC	SAEFTY STANDARDS	CE ROHS AND IP60
	WITHSAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	EMC Test Standards	EN55015:2006;EN61547:1995+A1:2000;EN61000-3-2:2006;
		EN61000-3-3:1995+A2:2005;EN61347-1:2001;EN61347-2-13:2006
OTHER	Dimension	85*36(mm)
	weight/packing	0.11kg,200pcs/22kg
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation
