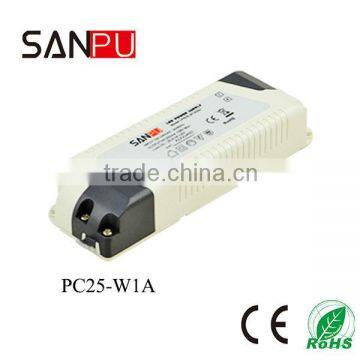

ac dc converter power supply 25W 350mA 700mA switch powersupply

FOB Price

US$ 4 - 6 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. CE, ROHS approved
2. 100% full load burn-in test
3. Small- volume high-efficiency
4. Two years warranty
5. High quality

Features

1. single output

2.Protections: short circuit/ over load/ over voltage/ over temp

3. Conform to EN60950 GB4943 UL60950 Safety standards

4. Conform to CB9254 EN55022 EMC Standards

5. High quality with competitive price

6. Suitable for any where in the world

7. Built-in EMI filter with tiny ripple

8. Two years warranty

9. Life span: 50,000H

AC input voltage range	100~240VAC 50/60Hz
AC inrush current	Cold-start current 15A/230V
Leakage current	<0.5mA/240VAC
Over load protection	115~135% hiccup mode, auto-recovery
Over-temp protection	≥105 °C hiccup mode , auto-recovery
Water level	IP60
Setup, rise, hold up time	200ms, 100ms, 30ms
Withstand voltage	I/P- O/P: 1.5KVAC 1 minute I/P- FG: 1.5KVAC 1 minute O/P- FG: 0.5KVAC 1minute
Working temperature	-20 °C ~+60°C, 20%~90%RH
Weight/ packing/ size	*0.11Kg, 100pcs/11Kg, 1324524(mm)*
Model	Output		Error	Temperature	Efficiency
PC19-W1A350	350mA	63~86V	± 5%	≤65°C	≥78%
PC19-W1A700	700mA	21~30V	± 5%	≤65 °C	≥79%
