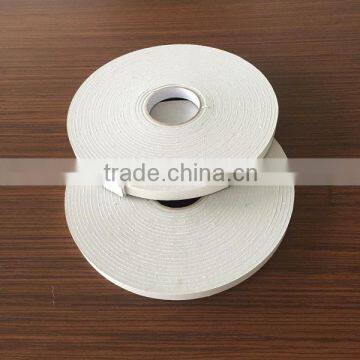

Single sided PVC Foam Tape for door
- Shanghai
- T/T
You May Like
Product Details
Material | PVC | Use | Masking | |
Adhesive Side | Double Sided | Adhesive | Acrylic | |
Adhesive Type | Pressure Sensitive | Feature | Heat-Resistant | |
Design Printing | Offer Printing | Place of Origin | Jiangsu, China | |
Brand Name | QIda | Model Number | QD210015PVC |
Product Description
1)Features
1.Coating white foam with Acrylic adhesive on both sides.
2.Suit to metal ,PP ,PE,EVA and so on.
3.Can be used in a wide temperature rage.
4.Good ability of surface resistance and ageing resistance.
2)Constitute
1. Double sided blue release film.
2.AM0900 adhesive.
3.1.5mm PVC Gray foam.
Name | Adhesive | Thickness(mm) | Width and Length |
QD210015PVC | Acrylic | 1.5 | Clients' requirements |
3)Usage
1.Can be used in car industry, all kinds of household appliances, electronic devices and so on.
2.Can be used as insulation material.
3. Can be used in environmental protection, Architectural decoration.
4.Can be used in daily life.
4)Performance Index
ADHESION PROOERTIES | TEST | TYPICAL PERFORMANCE | TEST METHOD |
LOOP TACK | 60OZ/IN TYPICAL | TLM1 LIB1 | |
Adhesion @72°F to the following | |||
Steel, immediate | 2.5lbs/in width | PSIC-1 | |
Steel, after 24 hours | 3.5lbs/in width or foam tear | PSIC-1 | |
Aluminum, after 24 hours | 2.5lbs/in width | PSIC-1 | |
Glass, After 24 hours | 3.0lbs/in width or foam tear | PSIC-1 | |
Powder Paint, immeciate | 2.0lbs/width | PSIC-1 | |
Power Paint ,after 24 hours | 3-5.0lbs/width or foam tear | PSIC-1 | |
Static Shear @72°F1*1*500grams | indefinite | PSTC-7 | |
Static Shear @72°F1*1*1000grams | 1000 hours minimum | PSTC-7 | |
Water and Jimicity Resistance | excellent | Pres-On PTM-3 | |
Application Temperature | 45°F to 120°F | Pres-On PTM-1 | |
Serbice Temperature | 40°F to 180°F | Pres-On PTM-2 | |
Shelf Life | 1 year stored at room temperture | ||
PHYSICAL PROPERTIES | TEST METHOD | UNIT OF MEASURE | RESULT |
Density | ASTM D3574{1.4} | lb/ft3 | 30 |
kg/m3 | 481 | ||
Tolerance % | #10 | ||
Thickness | ASTM D3574{4.5} | inch{mm} | 0.187{4.7} to |
0.375{9.5} | |||
Tolerance % | #10 | ||
Tensie Strength | ASTM D3574-E Die A {4} | min psi (*Pa) | |
typicak psi(kPa) | 164{11.31} | ||
Tensie Elongation | ASTM D3574-E Die A {2} | %min | 90 |
typical | 111 | ||
Tear Strength | ASTM D3574 D624 Die C {6} | min (plilkN/m) | 20{3.5} |
typical pli(kN/m) | 26{4.6} | ||
Compression Set | ASTM D3489{1.4} | psi{kPa} | 37{225} |
Standard Color | Pantone | N/A | black |
Resistance(Ba Rebound) | ASTM D3574-H | % | 21 |
5) Storage
The optimum Storage temperature:5~30ºC
Quality assurance:6 month from product purchase.
Can't guarantee 6 month expiry date if exposure to the sunshine ,high temperature(≥40ºC), high humidity(≥70%RH) or low temperature(≤0ºC).
Our production process:
1. Film producing
2.Glue coatig
3.Testing
4.Rewinding
5.Cutting
6.Shipping
Wuxi Qida Tape Co., Ltd is a factory specialized in the developing, producing and marketing protective film. Our Polyethylene film can protect numerous products to avoid scratch, mark, damage and dirt at the process of bending, pressing, roll forming, transportation and installation etc. The protective film can be easily applied and removed, leaving no residue glue on the surface of the protected products. Thus with the protection of the PE film, people can enhance the market competition of their valued products!
As one of the leading manufacturers of temporary surface protection film in China, we imported state-of-the-art equipments from Taiwan and certified by ISO 9001 system. In addition, we employ many experienced technicians and establish close relationship with several research and development institutes.
Through continuous technical innovation and strict quality control standard, our products are available all over China and we have been exporting to Europe, Middle East, America, Australia, Japan etc. since 1999. With superior quality, competitive prices and perfect after-sales services, we can always guarantee your full satisfaction in working with us!
