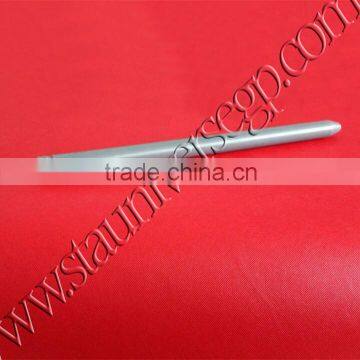

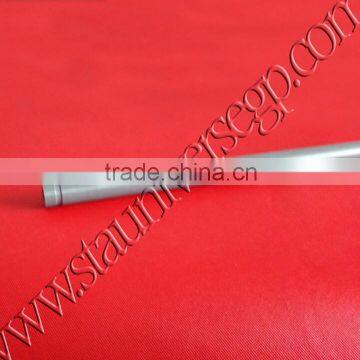

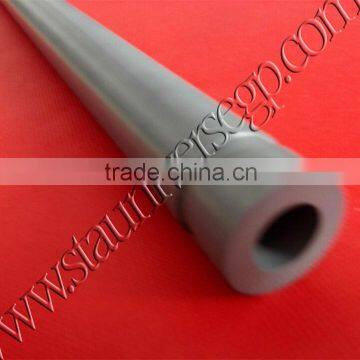

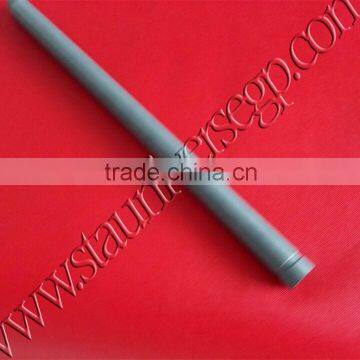

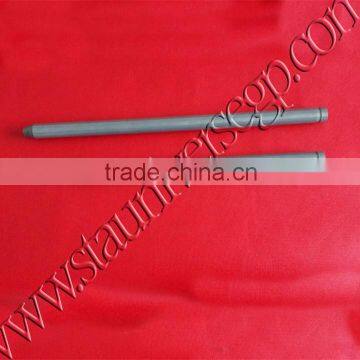

Sintered Si3N4 Riser Tube/pipe for Aluminum Industry

Specifications

1. SI3N4 RISER TUBE

2.Contents:RSiC

3. Function:anti-oxidation,anti-corrosion

Sintered Si3N4 riser tube/pipe for Aluminum Industry

Sintered Si3N4 riser tube/pipe for Aluminum Industry

Silicon Nitride, mainly consistaing of Si3N4, is a gray hard and solid high performance ceramic material sythesized through several chemical reaction methods. STA offer three sintering methods for Silicon Nitride, Gas Pressure Sintering(GPSN), Hot Press Sintering(HPSN) and Reaction-Bonded Sintering(RBSN). Parts are pressed and sintered by well devoloped methods to achieve the outstanding properties.

This high performance ceramic material has the strongest covalent bond properties next to silicon carbide, it's used as high temperature ceramic components due to its superior hardness, strength and excellent thermal shock resistance, these properties make it ideal for use in mechanical, thermal and wear  applications.

Although Silicon Nitride has high hardness, we owns strong machining ability to meet customers' requests on

sophisticated designs, tigth tolerances and smooth surface.

silicon nitride /si3n4 ceramic products

silicon nitride ceramics, GPS ceramic, structure ceramics, industrial ceramic, precise ceramics

Type : tube, bush, washer. pin, plate, block, rod, ball, bearing ball

Specifications: atandard size & suctomized size

Advantage: professional manufacturer with advanced technology of silicon nitride ceramics.

1. Longer service life of forming rolls. Service life of silicon nitride forming rolls is about 9 times and 2~3 times longer than that of metal and tungsten carbide forming roll, respectively.

2. Higher working temperature. Silicon nitride forming rolls could be used at , temperature up to 1000°C. While generally, steel forming rolls can only be used below 300°C

3. Better surface roughness quality of the metal works is achieved

4. Pick-up of the metal works is eliminated

5. Scrap of metal works is reduced

6. Consistency and reliability of metal works is in creased

7. Post-processing of metal works is reduced

8. Productivity is increased

Typical characteristics of SI3N4 RISER TUBE

1. High Hardness, Out Standing Wear Resistance

2. High Strength Over A Wide Temperature Range

3. Low Density, Light Weight

4. Good Thermal Shock Resistance

5. Low Thermal Expansion

6. Excellent Thermal Shock Resistance

7. Low Thermal Conductivity

8. Good Chemical Inertness, Acid and Alkali Corrosion

Properties of Thermal couple protection tube

  Silicon Nitride Thermocouple Protection tube

1.Material:Si3N4 bonded SiC Protection Tube

2.Thermowell

3.Long lifetime

silicon nitride thermocouple protection tube

Si3N4 bonded SiC ceramic refractory material, is mixed with high pure SIC fine powder and Silicon powder, after slip casting course, reaction sintered under 1400~1500°C. During the sintering course, filling the high pure Nitrogen into the furnace, then the silicon will react with  Nitrogen and generate Si3N4,So Si3N4 bonded SiC material is composed of silicon nitride (23%) and silicon carbide(75%) as main raw material,mixed with organic material,and shaped by mixture, extrusion or pouring,then made after drying and nitrogenization.

Si3N4 bonded SiC as a new type refractory material,is used widely.The applying temperature is 1400 C.It has better thermal stability,thermal shock,which is better than plain refractory material and recrystallized SiC.It also has antioxidation,high corrosion resistant,wear- resistantance,high bending strength.It can resist corrosion and scouring,be no polluted and fast heat conduction in molten metal such as AL,Pb,Zn,Cu ect.

Please check below specification

1.The diameter of Si3N4 bonded SiC thermocouple protection tube is Φ12-80mm,length is 1600 mm.It can be usded in high temperature kiln furnace and all kinds of atmosphere.It also can be directly used in all kinds of melted liquid.

2.Liquid tube,heating sheath,protection tube:used in aluminum liquid and glass liquid.It has good thermal conductivity,corrosion resistance,compression resistance,long life ect.

3.Roller tube:used in brick kiln furnace on the ground,diameter Φ30-50mm,length within 1600mm,high temperature resistance,no deformation,high strength.

4.Kiln furniture: used in tunnel kiln,shuttle kiln, down draught kiln,with good carrying capacity.It is ideal kiln furniture for increasing output of kiln furnace and make good use of space of kiln furnace.

5.Sagger:used for firing high grade refractory material,rare metal,powder metallurgy,electronic components and various loose material.Shape can be canister and rectangle.

6.Various refractory piece:with impact resistance,high temperature resistance,wear-resistance, good thermal shock resistance ect.Suitable for heat exchanger, cold air pipe, burner nozzle,crucible.

It can not only gain energy-saving effect,but also can keep product from pollution, and long life and convenient operation if you choose Si3N4 bonded SiC.

STA is a modern enterprise management company, who devote themselves to the service of product research and development, construction and maintenance.

Our company has a long history. We own the advanced equipment, a young, energetic, proficient and experienced team of professionals which with leading technology strength, excellent operational management and high-quality services what made us be recognized by customers of the chemical, petroleum, electric power, metallurgy, building material, aerospace, machinery and other industries.

Why Us

High puriy material make sure high max working temperature.

Tight tolerance make sure the right installation.

Large quantity in stock ensured fast delivery.

Large capacity reduce materical prices.

OEM Service

Inquiry response: Your inquiries will be replied in 3-4 hours.

Sample support: Two free samples are available in 3~5days.

Delivery time: Your shipment will be loaded in 15~25days.depends on quantity

Payment term: T/T, L/C, D/P, D/A, Western Union (Sample only) We can supply the products according to customer's drawings, samples and performance requirement.

Cerficate

FAQ

1.What's your MOQ?

We will indicate the MOQ for each item in the quotation list. We accept the sample and trail order.

2.Can I negotiate the Prices?

Sure, we may consider discounts for bulk order of products.

3.How long will it take to complete my order?

For the stock items, we can arrange the shippment within 2~3days after received your payment. For the customized  items, we will indicate the delivery time in the quotation list.

4.Can you give warranty of your products?

Yes, we extend a 100% satifisfaction guarantee on all items. Please feel free to provide timely feedback if you're not  satisfied with N&D's Quality and Service. For the overseas orders, if there is a quality problem, please kindly to provide  the picturers to show the problem by e-mail. We will provide the replacements to you at our cost according to actual conditions.

5.Can I visit you?

Sure. If you're a volume buyer and would like to visit our in-house products and production line, please contact us to  make an appointment.

Office

Factory

 Packing,Delivery

 If you need to buy SI3N4 RISER TUBE,pls contact Lily.
