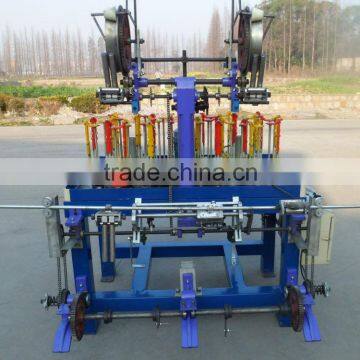

16 spindle braider for sale XD130-16-2
- Shanghai
- T/T
You May Like
-
XD130 series 12Spindle 2head cables braider
-
XD130 series 12spindle 2head High Speed Rope Braider
-
XD130 Series High speed 16 Spindle Round Rope Braiding Machine XD130-16-2
-
XD130 Series High speed 24Spindle Round Rope Braiding Machine XD130-24-1
-
XD130 Series High speed 32 Spindle Round Rope Braiding Machine XD130-32-1
-
XD130 Series High speed 40 Spindle Round Rope Braiding Machine XD130-40-1
Product Details
| Place of Origin | Shanghai, China | Brand Name | Xianghai | |
| Model Number | XD130-16-2 |
Product Description
Specifications
1.Intellignrt control system and Reliability2. High quality and Factory,cheap
High quality for braider
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specifications
- Intellignrt control system and Reliability
- High quality and Factory,Cheap1
- Flexible Operation and High Poductivity
- CE,ISO9001
| XD130 Series High Speed Round Rope Braider | ||||||||
| Model | Spindle Qty | Head Qty | Measurement(mm) | Power (kw) | Max Horngear Speed (rpm/min) | Spindle Type | Bobbin Size(mm) | |
| XD130-16-2 | 16 | 2 | 1520 X 950 X 1760 | 0.75 | 270 | B | Φ70 X 210 | |
| XD130-24-1 | 24 | 1 | 1100 X 1100 X 1760 | 1.1 | 270 | B | Φ70 X 210 | |
| XD130-32-1 | 32 | 1 | 1280 X 1280 X 1760 | 1.1 | 270 | B | Φ70 X 210 | |
| XD130-40-1 | 40 | 1 | 1280 X 1280 X 1900 | 1.5 | 270 | B | Φ70 X 210 | |
| XD130-48-1 | 48 | 1 | 1400 X 1400 X 1900 | 1.5 | 270 | B | Φ70 X 210 | |
| Range of products: Marine ropes,double strand wrapping cables,asbestos ropes,decorative ropes,and etc. | ||||||||
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable
4. All the spare parts are made by ourselves, So we each production procedure of the control machine
samples:
wooden case
