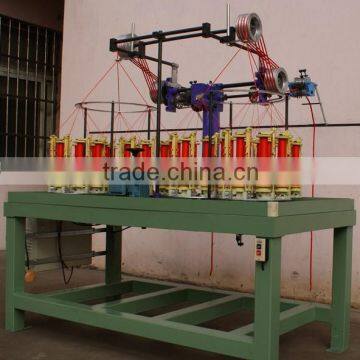

TB Series High Speed Twisted Rope Braiding TB130-3-2
- Shanghai
- T/T
You May Like
-
TB Series High Speed Twisted Rope Braiding TB130-3-1
-
TB Series High Speed Twisted Rope Braiding TB90-4-4
-
TB Series High Speed three Twisted Rope machine
-
TB Seriessofa frige ropes High Speed Twisted Rope Braiding TB130-4-2
-
TB Seriessofa frige ropes High Speed Twisted Rope Braiding TB90-2-4
-
TB Seriessofa frige ropes High Speed Twisted Rope Braiding TB130-2-2
Product Details
| Place of Origin | Shanghai, China | Brand Name | Xianghai | |
| Model Number | TB130-3-2 |
Product Description
Specifications
Twisted Rope Braiding Machine TB130-3-2Intellignrt control system and Reliability
High quality and Factory,cheap
High quality braiding machine
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specifications
- Intellignrt control system and Reliability
- High quality and Factory,Cheap1
- Flexible Operation and High Poductivity
- CE,ISO9001
| TB Series High Speed Twisted Rope Braiding Machine | ||||||||
| Model | Spindle Qty | Head Qty | Measurement(mm) | Power (kw) | Max Horngear Speed (rpm/min) | Spindle Type | Bobbin Size(mm) | |
| TB90-2-4 | 2 X 6 | 4 | 1190 X 1100 X 1420 | 0.75 | 330 | A | Φ48 X 140 | |
| TB90-3-4 | 3 X 6 | 4 | 1190 X 1100 X 1420 | 0.75 | 330 | A | Φ48 X 140 | |
| TB90-4-4 | 4 X 6 | 4 | 1190 X 1100 X 1420 | 0.75 | 330 | A | Φ48 X 140 | |
| TB130-2-2 | 2 X 6 | 2 | 1900 X 950 X 1900 | 1.1 | 330 | B | Φ70 X 210 | |
| TB130-3-2 | 3 X 6 | 2 | 1900 X 950 X 1900 | 1.1 | 330 | B | Φ70 X 210 | |
| TB130-4-2 | 4 X 6 | 2 | 1900 X 950 X 1900 | 1.5 | 330 | B | Φ70 X 210 | |
Range of products:
Garment accessory ropes,sofa fringe ropes,gift bag ropes,bedding accessory ropes,rope fringe,and etc.
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable
4. All the spare parts are made by ourselves, So we each production procedure of the control machine
5.details:
samples:
wooden case
