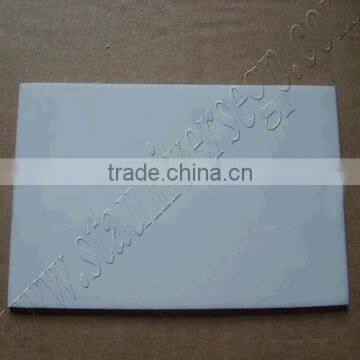

ZhengZhou STA high quality Beryllium oxide plate with factory price
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
ZhengZhou STA high temperature Beryllium oxide plate
-
ZhengZhou STA high temperature Beryllium oxide plate with best price
-
ZhengZhou STA high temperature Beryllium oxide plate& parts with best price
-
boron nitride ceramic parts
-
White Boron Nitride Ceramic
-
Insulating Ceramics Boron Nitride Ceramics/BN ceramic
Product Details
| Place of Origin | Henan, China | Type | Ceramic Plates | |
| Application | Industrial Ceramic | Model Number | STA-BO-03 | |
| Brand Name | STA |
Product Description
Specifications
Beryllium oxide plate1.Heat resistant
fessional manufacturer
3.Good insulation
4.best price
ZhengZhou STA high quality Beryllium oxide plate with factory price
Beryllium oxide (BeO) ceramic materials are in high demand due to their superior performance at high temperatures along with a thermal conductivity second only to diamond among insulating materials.We offer solutions to any component that must provide high thermal conductivity in conjunction with electrical resistivity. Building on our unique combination of materials forming, firing and fabrication technologies, we are rapidly expanding our product portfolio to provide the next generation of beryllia ceramic materials.BeO Ceramic Materials are ideal in thermal management applications when the following design considerations are critical.
Features:
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) High strength
6) Wear resistant performance
the technical data :
| Property content | Test method | Property index | Unit | ||
| B-97 | B-99 | ||||
| Dielectric strength | 1MHz | 6.5—7.5 | 7.5 | ||
| 10GHz | |||||
| Dissipation factor | 1MHz | 4X10-4 | 4X10-4 | ||
| 10GHz | 8X10-4 | 8X10-4 | |||
| Bulk resistance | 25°C | 1014 | 1014 | ||
| 300°C | 1011 | 1011 | |||
| Breakdown strength | D.C | 15 | 20 | KV/m m | |
| Flexural strength | --- | 170 | 160 | MPa | |
| Linear expansion coefficient | 25°C--500°C | (7.0—8.5)X10-6 | (7.0—8.5)X10-6 | 1/K | |
| Thermal conductivity | 25°C | 200 | 230 | W/m.k | |
| 100°C | 160 | 180 | |||
| Thermal shock resistance | 0°C--800°C | No crack or chap | |||
| Density | --- | 2.85 | 2.85 | g/cm3 | |
| Chemical stability | 1:9H CI | 0.3 | 0.3 | mg/cm2 | |
| 10%NaOH | 0.2 | 0.2 | |||
| Max working temperature | 1800 | C | |||
| Dialectic Strength | >=15 | >=20 | KV/mm | ||
Available in a variety of Thicknesses
2.062" square
2.25" square
2.9" x 2.3"
3.7" square
4.5" square
if you have any other requirments ,please contact us without hesitate.
