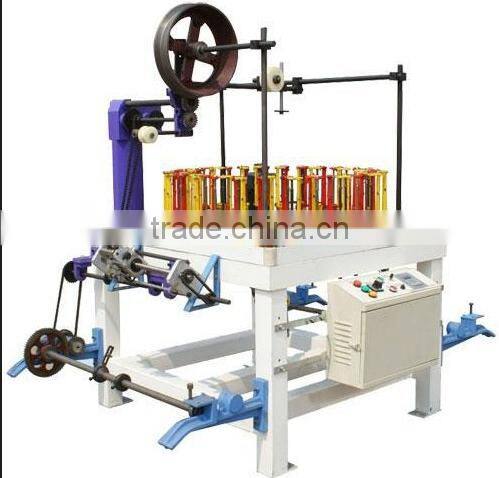

56 spindle 1 head high speed safety rope,fiberglass sleeves,fire rope, core cord knitting machine
- shanghai
- T/T
You May Like
-
16 spindle high speed round elastic band ,gift bag rope,safety rope,hollow rope braiding machine
-
32 spindle2 head high speed gift bag rope,fishing line,safety rope,round elastic band knitting machine
-
56 spindle 1 head high speed core cord,round rope,high tension rope braiding machine
-
16 spindle Data Cable/ Data Line High Speed Wire and Cable Braiding Machine
-
16 spindle bungee cord braiding machine manufacturer
-
hot sell good quality Power Cord High Speed Braiding Machine price
Product Details
| Place of Origin | Shanghai, China | Brand Name | Xianghai | |
| Model Number | XH90-56-1 | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1.Intellignrt control system and Reliability
2. High quality and Factory,cheap
High quality braiding machine
Application of braiding products:
High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..
Range of braiding materials:
All flexible fibers, yarns, belts, threads
Control system:
- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet
Scope of supply:
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing
Specifications
- Intellignrt control system and Reliability
- High quality and Factory,Cheap1
- Flexible Operation and High Poductivity
- CE,ISO9001
| XH90 Series High Speed Round Rope Braiding Machine | ||||||||
| Model | Spindle Qty | Head Qty | Measurement(mm) | Power (kw) | Max Horngear Speed (rpm/min) | Spindle Type | Bobbin Size(mm) | |
| XH90-8-4 | 8 | 4 | 900 X 870 X 1420 | 0.75 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-12-4 | 12 | 4 | 980 X 950 X 1420 | 0.75 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-16-4 | 16 | 4 | 1190 X 1100 X 1420 | 0.75 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-16-4 | 16 | 4 | 1780 X 750 X 1500 | 0.75 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-24-2 | 24 | 2 | 1250 X 850 X 1450 | 0.75 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-32-2 | 32 | 2 | 1370 X 950 X 1450 | 0.75 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-36-2 | 36 | 2 | 1420 X 980 X 1600 | 1.1 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-40-2 | 40 | 2 | 1650 X 900 X 1500 | 1.1 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-44-1 | 44 | 1 | 1050 X 950 X 1450 | 0.75 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-48-1 | 48 | 1 | 1100 X 980 X 1760 | 0.75 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-56-1 | 56 | 1 | 1200 X 1050 X 1500 | 1.1 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-64-1 | 64 | 1 | 1300 X 1200 X 1500 | 1.1 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-72-1 | 72 | 1 | 1450 X 1300 X 1500 | 1.5 | 300 | A | Φ48 X 140Φ48 X 113 | |
| XH90-96-1 | 96 | 1 | 1700 X 1500 X 1900 | 1.5 | 300 | A | Φ48 X 140Φ48 X 113 | |
| Range of products: Gift bag ropes, high tension ropes,fishing lines,safty ropes,fiberglass sleeves,round elastic bands,hollow ropes,core ropes,and etc. | ||||||||
V
Feature
1.There is a different kind of line according to the requirements of your product:
2. For the reduction of labor costs and increase production.
3. Machine long life, very durable
4. All the spare parts are made by ourselves, So we each production procedure of the control machine

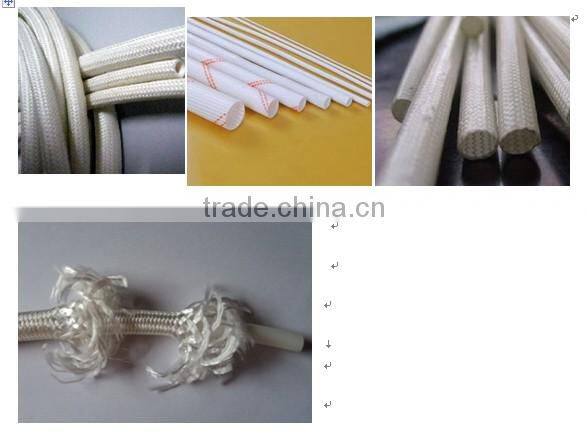

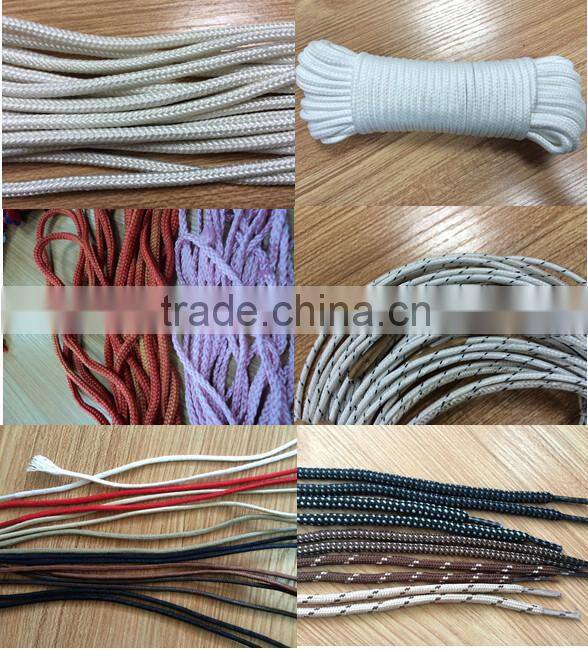

samples:
1. Fishing line round smooth line, etc
3. Rope, round elastic rope, core or tubular string
packaging
contact:Alisa
mobile phone:+86-13916465059
whatsapp:+86-15110343262
wechat:+86-15110343262
skype:live:alisa_740
Address:NO.8,lane3841Huqingping Road,Qingpu district,Shanghai,201703,China.
