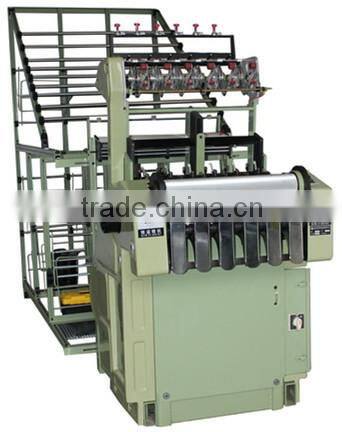

Cotton Bags Making Needle Loom Machine
- Xiamen Fujian China
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Narrow Fabric Shuttleless Loom | |
| Application | Webbing, Elastic , Belt, Bra Strap etc | Production Capacity | 2500*8500M | |
| Place of Origin | Fujian, China | Brand Name | Gin Yi | |
| Model Number | GNN-6/55 | Dimension(L*W*H) | 180cm*115cm*155cm | |
| Weight | 800KG | Power(W) | 1.5KW | |
| Certification | ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications:
Cotton Bags Making Needle loom Machine
1)800-1200RPM
2)2-12 tape
3)chain circle 8-40
3) R&D servirve
Cotton Bags Making Needle loom Machine
Introduction
GNN needle loom is with stable quality, low noise, and durable working condition. It supplies customer high economic efficiency.
Automatic lubrication device and automatic tension feeding system provide effective control over high quality fabric while saving time and labor for the user.
Drive belt and change gear to perform stabilized transmission of bottom weft and provide wider range of fabrics which be more superior in quality.
Convertible machine parts supported with various devices to provide wider range of fabrics multi-purpose for single machine as well.
Heald frame in double-load, double shedding lever, twin pattern chain transmission configuration of shaft and gear has been reinforced.(8/45,4/65,6/55)
Specifications
Product Name | Cotton Bags Making Needle loom Machine |
|
MODEL | GNN-6/55 | |
BELT NUMBERS | 6 | |
REED WIDTH(mm) | 55 | |
HEALD FRAME | 12 | |
Weft density | 3.5-36.7weft/cm | |
PICK REPEAT | 8-40 | |
H.P. MOTOR | 1.5 | |
MAX.SPEED R.P.M | 800-1200 | |
Price Condition | FOB Xiamen | |
Packaging | 1set/wooden case | |
Delivery lead time | 15-25days | |
Minimum order | 1 set | |
Guarantee | 1 years |
Other sizes of Cotton Bags Making Needle loom Machine
MODEL | GNN-10/30 | GNN-8/45 | GNN-8/30 | GNN-6/55 | GNN-6/45 | GNN-4/65 | GNN-4/80 | GNN-2/110 |
BELT NUMBERS | 10 | 8 | 8 | 6 | 6 | 4 | 4 | 2 |
REED WIDTH(mm) | 30 | 45 | 30 | 55 | 45 | 65 | 80 | 110 |
HEALD FRAME | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
PICK REPEAT | 8-48 | 8-48 | 8-48 | 8-48 | 8-48 | 8-48 | 8-48 | 8-48 |
H.P. MOTOR | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
MAX.SPEED R.P.M | 800-1200 | 800-1200 | 800-1200 | 800-1200 | 800-1200 | 800-1200 | 800-1200 | 800-1200 |
Pictures
