STA-high temperature graphite silicon carbide ceramic crucible
- 5000 Piece / Pieces per Month
- Qingdao Shanghai
- T/T Credit Card
You May Like
-
Degassing Unit Graphite Rotor and shaft with long life
-
ISO Quality Degassing Unit Graphite Rotor and shaft
-
Degassing Unit Graphite Rotor and shaft with competitive price
-
Durable Degassing Unit Graphite Rotor and shaft
-
Long working life Degassing Unit Graphite Rotor and shaft
-
High quality Degassing Unit Graphite Rotor and shaft
Product Details
| Place of Origin | Henan, China | Shape | Pipe | |
| Material | Silicon Carbide (SiC) | SiO2 Content (%) | 0.1% | |
| Al2O3 Content (%) | 0% | |||
| SiC Content (%) | 99% | Model Number | STA-SCC01 | |
| Brand Name | STA |
Product Description
Specifications
1 Material: graphite+ SiC2 Mode of production: by mold pressing
3 Quick delivery time
4 melting metals

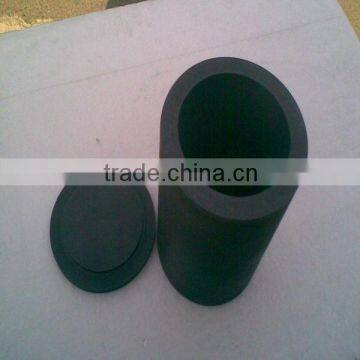

STA-SCC001 Refractory high temperature graphite silicon carbide crucible
Shape:
According to your drawing. crucible
Material:
graphite+SiC
Process:
mold Isostatic pressing
Application:
for melting iron, aluminum and alloys
Advantage:
1. Without contamination of impurities
2. High resistance to high temperature, lower down oxidation speed.
3. Cutomized-production is available in our factory. We could design and machine the graphite crucibles according to your application.
SPECIFICATIONS
ITEM | DATA |
SIC ≥ | 24% |
REFRACTORINESS ≥ | 1635 |
C ≥ | 41.40% |
A.P. ≤ | 32% |
B.D. ≥ | 1.7g/cm3 |
The graphite-Sic crucibles are featured with high temperature resistance,oxidation and corrossion resistance.and fast thermal transmission.
SIZES OF GRAPHITE/SIC CRUCIBLES
SIZE | HEIGHT(mm) | UPPER DIAMETER (mm) | BOTTOM DIAMETER(mm) |
2 | 114 | 95 | 66 |
6 | 176 | 137 | 88 |
8 | 188 | 159 | 108 |
10 | 201 | 167 | 113 |
12 | 214 | 175 | 118 |
16 | 232 | 188 | 127 |
18 | 246 | 195 | 132 |
20 | 260 | 201 | 137 |
25 | 285 | 214 | 146 |
30 | 295 | 222 | 153 |
35 | 305 | 230 | 159 |
40 | 315 | 242 | 165 |
50 | 314 | 253 | 178 |
60 | 356 | 282 | 190 |
80 | 387 | 306 | 210 |
100 | 400 | 330 | 232 |
120 | 444 | 340 | 238 |
150 | 461 | 370 | 259 |
200 | 501 | 408 | 279 |
250 | 557 | 430 | 285 |
300 | 583 | 454 | 292 |
400 | 661 | 526 | 318 |
.
