Product Details
| Place of Origin | Guangdong, China | Brand Name | SDM | |
| Model Number | SDM619 |
Product Description
Hotsell GPS tracking passenger counter for buses Built-in WIFI
Product feature of passenger counter for buses:
1) 4CH, Support 4 cameras
2)H.264 compression format
3)64GB SD Card
4) 2.5“ SATA 1TB Hard disk
5)GPS tracking
6)3G remote control
7) Built-in WIFI for option
8)6 alarm input, 1 alarm output
9)2 way intercom
10)Remote oil&power cut-off
11)Mirror recording in SD card
12)Patent UPS continuously working to protect data upon sudden power-off
13) Customized GPS data format sending(optional)
14)Built-in Heater(optional)
15) With video people counting for one-door&2-door buses
16) Lockable, metal HDD handle, protect HDD efficiently
17) Watermark and Time/Date stamp in exported images
Specification of passenger counter for buses:
Item | Description | |
OS | Linux | |
Graphics Operation Interface | System parameters can be set through external display and remote controller | |
Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | |
Video and Preview | Input | 4-channel video input |
Output | 1channel video output; 1.0Vp-p, 75Ω | |
OSD | Character superposition function, information superposition of time and date, device ID &GPS, etc. | |
Compression | H.264. Hisilicon hi-performance processor. | |
Dual-Stream | Supported | |
Display | 1/4/6/8/9/16/25/36/100 channels | |
Frame Rate | PAL: 100FPS, up to 25FPS/CH; NTSC: 120 FPS, up to 30 FPS/CH | |
Resolution | CIF, HD1 &D1 for option, supporting 2CH D1+ 2CHCIF | |
Quality | Grade 1~ grade 5 for option | |
Audio | Input&Output | 4CHl input, 1CH output |
Compression | G726 coding | |
Recording | Storage | 1PC 2.5”HDD max 1TB&1PC Max 64GB SD card for mirror recording, supporting cycle recording. |
File System | ASF/FAT32 | |
Video Strategies | Recording at startup by default, support timed recording, recording triggered by alarm and manual recording | |
Video Search | by time, type, storage device and other conditions | |
Alarm | Input/ Output | 6-CH on/off signal alarm input, 1-CH on/off alarm output |
Alarm Recording | Prerecording function 15S before alarm, duration of recording upon alarm is optional from 30s ~ 30min | |
Storage Space Alarm | Supporting alarm for storage space | |
Interface | RS232/485, RJ45 | |
Network | WIFI | Embedded Wi-Fi module; |
GPS | Support external GPS | |
3G | WCDMA/EVDO | |
PTZ Control | Support PTZ control realized by local | |
G-Sensor | Embedded | |
Power | Power Supply | 1. ACC on/off2. Hard drive lock on/off3. Delayed shutdown 4. Timed on/off |
Input Voltage | DC:+8V ~ +36V | |
Output Voltage | +12V 4*0.5A; +5V 0.5A | |
Power-off Protection | With patented UPS power supply technology for 3~5S recording upon sudden power cut to ensure video data safety | |
Power Consumption | <10W in normal operation; <0.5W in standby mode | |

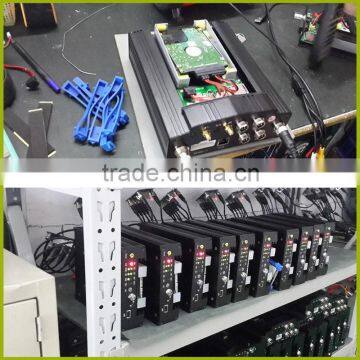

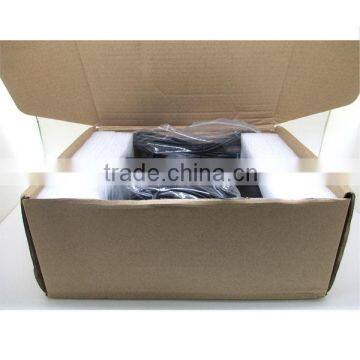

Pictures of passenger counter for buses:
FAQ
1)The server software is free? What are the system requirements to use this software?
Yes, it is free of charge.For server setup, you need to buy a static IP adress from your local network provider, and then the computer should
be with good performance (HDD capacity should be above 500GB, Memory above 4G, CPU above 2G, with dual core,
Network interface should be 100 Mega or 1000 mega.
2What Operating system needs to be used? Windows 7 or 8 or Windows server? Can the WIFI auto download
software be placed on the same system?
RE: yes, you could use windows system, 7 or 8 are both okay. Also the wifi auto download software are with the same
system. In fact, our current software are all based on windows system(only Clients is with android system)
3) When we start using your server and after some time we build our own,can the IP address in the
units be changed remote or do we do this by wire?
If you build your own server, then you could change the DVR local settings by manual. After you used your own server,
then you could run the server TOOl software, then you could remotely change the settings of your vehicles, this is no problem.
