Home > Products > Power Supply > 5v 9v 12v 18v 24v power supply

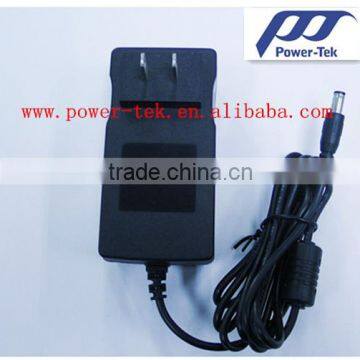

5v 9v 12v 18v 24v power supply

FOB Price

Negotiable / Set

5000 Sets(Min. Order)

Port FOB shenzhen
Payment TermsT/T PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	power-tek, POWER-TEK
Model Number	SW36-12003000-UL	Output Type	Other, DC, Single
Connection	Plug In

Product Description

Specifications

power supply
1.good quality
2.CE,CCC certificate
3.over load,current protection
4.precise design perfomance

5v 9v 12v 18v 24v power supply:

1.Input:100-240Vac 50-60HZ

2.Output Voltage available from 5V to 24V

3.Over Current Protection,Over Voltage Protection,Short Circuit Protection,Over Hot Protection

4.Certificate Approved:GS CE CCC UL UK KC SAA PSE BIS BV

5.Insalution: Class II

6. Case material: 100% PC

7.Efficience: 85%-95%

Input Characteristics:

1:Input voltage

Rated Voltage AC 100-240V

2:Input Frequency

rated Frequency 50/60Hz

3 :Input Current

The maximum input current shall be less than 1.5A

4:Inrush Current

Peak inrush current shall be limited 45A within 10 ms at 230Vac( Cold Start).

5 :AC Leakage Current

The leakage current shall not exceed 0.25Aa

Output Charactristics:

1: I/P AC100-240V

2: O/P Frequency : 50-60Hz.

3: Voltage : DC 12V.

4: OP Rate: 5%.

5: Rated current OP: 3A

6: Ripple & Noise: 80mVp-p.

7: Efficiency: 85-95%.

8: Short circuit protection.

9: Overheating Protection.

10: Working temperature:0°C~+50°C.

11: Storage temperature: -20°C~+85°C.

12: Humidity: 10%-95%RH

Company Basic Info.

Shenzhen Top-Asia Electronics Co., Limited is one of the biggest electronic consumable manufacturers in the south

of China.

Our Subsidiaries: POWER-TEK/ (Hong Kong) Technology and Shenzhen Top-asia Electronics. Our Major Products:
switchinower adaptors covering 0- 120 Watts, and open frame powers covering 0-2000 watts.

Brands: Power-Tek, and Top-Asia
Established in 2001, Top-Asia has been focusing on developing power supplies of both linear and switching covering
--iAGCK-0 90 watts,including different chargers. And most of our products have been qualified by UL/CUL, GS, CE/BS, K M
ark, CCC, PSE, SAA, BS,WEEE, LVD, and CB laboratories.

Depending on our powerful development teams and professional management staff members, Top-Asia is mounted as
Cone of the most famous manufacturers in this field in South-China.

Our major production base located in Shenzhen occupies an area of 6,000 square meters, with over 400 headcounts.
Now, our monthly production capacity is 1,400K units of different powers and chargers .

Based on the tenet of "Quality first, Customers supreme", we are dedicated to offering the best product and service to
requite your support and trust !

Power adapter

Output :12V1.5A 24V1A12V2A 12V1.5A 15V1.5A 9V2A 5V2A

Quality certification CCC,UL,cUL,BS,GS,KC,PSE,SAA,CE etc.

Place of Origin : Guangdong, China (Mainland)

Port :FOBshenzhen

Packing: Poly Bag &Carton Box

1.Used quality safted components and purchased from famous supplier brand standard components, such as rectifier,MOSFET,capacitor,IC,transformer,inductance,fuse etc.

2.Meet EMC/EMI requirements.

3.Meet Rohs,SGS requirements.

4.Design laptop adapter electronics function and mechanism based on customer detail specification requirements.

5.Overall quality reliability test such as loading output,no-loading output,full load efficiency,noise data,short circuit protection,OCP,OVP,Hi-pot,Resistance,burning-in/aging,temperature shock,drop test,vibration test etc.

6.Load/no-load output tolerance:3%
