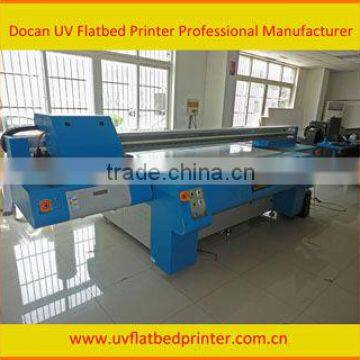

uv Flatbed Printer Factory/glass Printer/wood Printer/acrylic Printer

FOB Price

US$ 50,000 - 100,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Flatbed Printer
Place of Origin	Shanghai, China	Brand Name	Docan
Model Number	M2	Usage	Other, Outdoor sign and indoor decoration printing
Automatic Grade	Automatic	Gross Power	8KW
Dimensions(LWH)	4.522.051.33m	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

uv flatbed printer factory/glass printer/wood printer/acrylic printer

Specification

1) UV Inkjet Flatbed Printer
2) Konica Minolta printhead
3) 360dpi*360dpi-1440dpi*1440dpi
4) C,M,Y,K or C,M,Y,K,LC,LM + White colors
5) CE Certificate

Perfect Quality Along With Competitive Price
Since we are a few manufacturers of UV flatbed printer in China with many years production experience, we can provide the printer with excellent performance & direct price. You will enjoy our one-stop survice.

Higher Speed Plus Higher Resolution
Konica printhead with 1024KM-6PL nozzle is used to support you with high speed printing and higher resolution(Max resolution can be up to 1440dpi*1440dpi

Ideal Transmission System
USB optical transmission, interference, to avoid printing garbage.

More Application
Application areas includs:Decoration industry, glass industry;Sign industry;Exhibition industry;Leather textile printing industry, and so on.

Printed materials could be:Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board & flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc.

General info	Model	Docan M2
	Print technology	Drop-on-demand Piezo Electric
	Working platform	Vacuum or up-down wheels table
	Printhead type	KM1024-6PL
	Printhead No.	4/5/6/7/8/10/12/15/16
	Printhead control	Print head temperature & voltage are adjustable by software
	Printhead control	Print head temperature & voltage are adjustable by software
	Printing size	2.5*1.25m
	Media thickness	1-100mm
	Ink reservoir	Refillable on the fly while printing/1000ml
	loating mode	Resto/Servo
	Drying system	UV lamp
	RIP software	Photoprint/ONYX/Caldera
	File format	TIFF, JPEG, Postscript 3, EPS and PDF
Resolution		360dpi360dpi 360dpi720dpi
		720dpi360dpi 720dpi720dpi
		720dpi1440dpi 1440dpi1440dpi
Printing speed		In draft mode up than 30 sq.m ( 8 heads )
		In standard mode up than 20 sq.m ( 8 heads )
		In high resolution mode up than 12 sq.m ( 8 heads )
Ink	Ink type	UV curing ink
Ink	Printing color	CMYK, LC, LM, W,Varnish(4,5,6,7, double 4 colors)
Printing Asistant System	Printing media	Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglass, foam board, also flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc.
	Heating system	Standard(Front heater,rear heater,fan)
	Color retains	Outdoor:2 years indoor:7 years
	Color management	ICC international standard, adjustment curves, density adjustment
	Color management
Printer info	Power supply	AC220V-240V 50/60HZ (10%) >30A
	Working conditions	Temperature 20-28°C
	Working conditions	Humidity 40% - 60%
	Warranty period	One year
	Dimension	4.522.051.33m
	Weight	1280kg
	Packing details	Outside packing : Packed by solid wooden carton
		Inner packing: sealed with anti-rain & rust plastic bubble film
