Digital Digital UV Printer M2 in high technology

FOB Price

USD $30,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Flatbed Printer
Place of Origin	China	Brand Name	Docan
Model Number	M2	Usage	Other, it is used for printing any kinds of flatbed materials
Automatic Grade	Semi-Automatic	Gross Power	1650KG
Dimensions(LWH)	4.372.371.45m

Product Description

Specifications

1. uv flatbed printer
2. adopts KM1024 -6pl print heads
3. It uses the high technology
4. uv flatbed printer manufacturer

digital uv printer

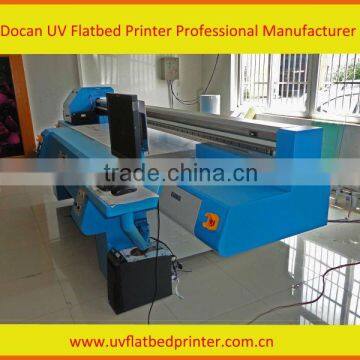

M2 UV Flatbed printer

M2 UV Flatbed Printer is a kind of large inkjet printer mainly used to print images on flatbed materials.

The images designed on the computer can be printed out as their original shape.

The maximum printing size of this flatbed printing is 2.5*1.22m.

Features of M2 UV Flatbed Printer

Our M2 UV flatbed printer can print images on all kinds of flatbed materials. Such as glass, acrylic, PVC foam board, ceramic, aluminum composited panel, corrugated board, aluminum sheet, metal,wave board, wood , MDF,ceiling, wall paper, corrugated paper,timely paste,canvas,leather, etc.

Special treatment to flatbed materials is unnecessary.

The maximum printing material thickness is 100mm.

The printing effect is very good and the images are firmly printed on the panels, This ensures that the printing effect can be well preserved for a long time without fading(indoor for 10 years and outdoor for 2 years more.)

Basic Characteristics of M2 UV Flatbed Printer

Model	M2
Catagory	M series
Print Technology	Drop-on-demand Piezo Electic
Nozzle Technology	Piezoelectric Inkjet
Print head type	KM-1024-6PL
Print head controls	Print head temperature and voltage are software adjustable
Ink Characteristics	UV curing ink
Ink Reservoir	Refillable on the fly while printing/ 1000ml
Drying system	UV lamp
Rip software	Photoprint/ Onyx/ Caldrea
Color Management	Icc Based Color, Curves Adjustment, Density Adjustment
File Format	Tiff, Jpeg, Postscript 3, Eps and Pdf
Power supply	50/60hz 220v ( 10%) >30A
Operation Environment	Temperature 20°C to 28°C degrees
Humidity	40% to 60%
Product Model	Docan M2
Printing Size	2.5*1.25m
Media thickness	1-100mm
Nozzle Number	4/5/6/7/8/10/12/15/16pcs
Resolution	360dpi360dpi 360dpi720dpi
	720dpi360dpi 720dpi720dpi
	720dpi1440dpi 1440dpi1440dpi
Printing speed	In Draft mode up than 30 sq.m/h (8 heads)
	In Standard mode up than 20 sq.m/h ( 8 heads)
	In High resolution mode up than 12 sq.m/h (8 heads)
	In Super resolution mode up than 8 sq.m/h ( 8 heads)
Colors	4 colors(C M Y K) or 6 colors(C M Y K Lc Lm). White & varnish can be optional
Outdoor life	2 years(use Docan ink)
Dimensions	4.372.371.45m
Weight	1650KG
