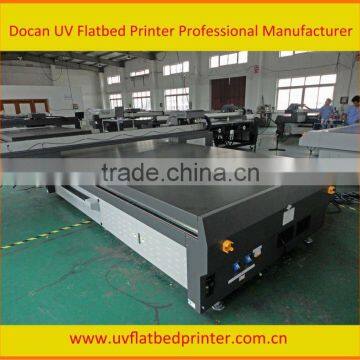

The Latest UV flatbed printer Price, surprising affordable Large format UV Printer. Good quality, uv flatbed glass printer

General

Info

Model

   M8

Print technology

Drop-on-demand Piezo Electric

Working platform

Vacuum or up-down wheels table

Printhead type

JAPAN KMHB 1024

Printhead No.

4/5/6/7/8/10/14/16 pcs

Printhead controls

Print head temperature & voltage are adjustable by software

Printing size

2.44 * 1.8m

Ink type

UV curing ink

Ink Reservoir

Refillable on the fly while printing/1000ml

Loating mode

Resto/Servo

RIP software

Photoprint 10 OR Caldera

Drying system

UV lamp

File format

TIFF, JPEG, Postscript 3, EPS and PDF

Resolution

360 dpi x 360 dpi      360 dpi x 720 dpi

720 dpi x 360 dpi      720 dpi x 720 dpi

720 dpi x 1440 dpi     1440 dpi x 1440 dpi

Printing Speed

In draft mode up than 98 sq.m ( 8heads )

In standard mode up than 52 sq.m ( 8 heads )

In high resolution mode up than 42 sq.m ( 8 heads )

Ink

Ink type

UV curing ink

Printing colors

C, M, Y, K, LC, LM, W (4,5,6,7, double 4 colors)

Printing Assistant System

Printing media

(max thickness 55mm )

Glass, ceramic tile, ceiling, aluminum sheets, wooden sheets, billboards, acryl sheets, KD board, Plexiglas, foam board, also flexible media like wall paper, glistening film, canvas, carpet, leather, paper sheets, etc.

Heating system

Standard (Front heater, Rear heater, Fan)

Color retains

Outdoor 2 years, indoor 7 years

Color management

ICC based color, adjustment curves, density adjustment

Printer Info

Power supply

AC220V-240V  50/60HZ (10%)  16A

Working conditions

Temperature 20-28 degrees, Humidity 40% - 60%

Dimensions

4.63*2.48*1.47m

Weight

1870 kgs

Packing

Outside packing : Packed by solid wooden carton

Inner packing: sealed with anti-rain & rust plastic bubble film
