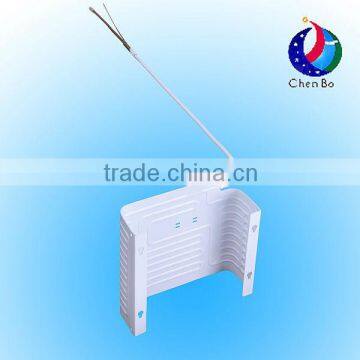

Roll bond evaporator

FOB Price

US$ 1 - 20 / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Chenbo
Model Number	005

widely applied to various cool appliance like refrigerator, freezer, exhibit cabinets, show case, water dispenser and so on.

Application: refrigeration parts

_____________________________________________________________________________

Specifications

Raw material	Al-plate: finished products thickness: 1.1 ~ 2.0mm , raw material Al plate thickness: 1.4~ 2.5mm
Structure	• Double side roll bond evaporator, • single side roll bond evaporator, • part single side rollbond evaporator
Key process	Prepare the material-Cleaning-roughing surface-Printing-Riveting-Rolling-Annealing-Blow up-Punching-Folding and shaping-Capillary connecting-Assembly welding-Leakage Test-Cleaning and drying-Coating-Curing-Inspection-Packing
Technical Standards	1) Size: width 1200 mm (max), length 2300 mm (max) 2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
Performance	1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R 134a & CFC cooling system. 3) Can satisfy the cooling capability requirements.

R 134a Cooling System Tube Inside standards

Residual moisture

≤5 /100cm3

Residual impurity

≤1 /100cm3

Residual mineral oil

≤100 /100cm3

Residual chlorine

≤5vloppm

Residual paraffin

≤3 /

Biggest single impurity

≤0.5mm
