Motorcycle Spare Parts /motorcycle Chain Kits

FOB Price

US$ 1.25 - 2.25 / Piece

1 Piece(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Type	Roller Chain
Material	Alloy	Tensile Strength	16.00KN
Place of Origin	Shandong, China	Brand Name	changtai/LL/HP
Model Number	420

Product Description

Specifications

*Model:420
*Material:45Mn(plates),30CrMnTi(pin),20CrMnMo(bush),#10 steel(roller)
*Pitch:12.70mm
*Roller diameter:7.77mm

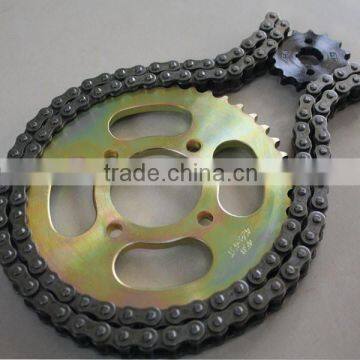

Name:Motorcycle spare Parts /motorcycle chain kits

Picture:

Character:

Changtai Chain No.	Pitch	Roller Diameter	Width between inner plater	Pin diameter	Pin length		Inner plate depth	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d₁ max	b₁ min	d₂ max	L min	L_c max	h₂ max	Q min	Q_o	q
	mm	mm	mm	mm	mm	mm	mm	KN	KN	kg/m
420	12.70	7.77	6.35	3.96	14.75	16.10	12.00	16.00	16.50	0.60
428	12.70	8.51	7.75	4.45	16.70	18.05	12.00	17.80	18.50	0.72
428H	12.70	8.51	7.94	4.51	18.90	20.10	12.00	20.60	21.50	0.85
530	15.875	10.16	9.40	5.08	20.90	22.20	15.00	26.50	29.70	1.08
630	19.05	11.91	9.40	5.94	22.70	24.00	18.00	35.00	37.00	1.44

1, Model:420,428,428H,530,630

2, Suit to Honda,Yamaha,Suzuki,Kawasaki

3, Good quality and reasonable price

4, OEM SERVICE

5, Material:45Mn(Plate)+30CrMnTi(Pin)+20CrMnMo(Bush)+No.10 steel(Roller)

6, Always in 100links/pc,98,102,104,112,116 or as your order.

7, Riveting:Two side riveting or four side riveting.

8, Heat treatment(quenching and tempering)

9, Pre-stretching and Running in each motorcycle chain.

10,Good lubrication with excellent grease.

Packing:

Inner:plastic bag or small carton

Outer:30 bags/Carton

25 small catons/carton(size:43X22X12.5<cm>)

Workshop:

Wulian Changtai Machinery Manufacturing Co.,Ltd is a production company which professional committed to high-class chain.We were founded in 1998, our factory has a floor area of 16800 square meters and located in RIZHAO CITY SHANGDONG PROVINCE China.Our main products are motorcycle chain,agricultural chain,machinery chain and so on.
