Product Details
Place of Origin | Jiangxi, China | Brand Name | BYGD/OEM | |
Model Number | P1000W | Output Power | 1 - 200KW | |
Output Type | Single | Size | 240*100*70MM | |
Weight | 3.5KG | Input Voltage | 12V/24V | |
Output Voltage | 110V/220V/230V/240V | Type | DC/AC Inverters | |
Output Frequency | 50Hz/60Hz | Output Current | USB MAX 2.1A |
Product Description
power inverter dc to ac inverter for solar panel 12v 110v 220v
1. Description:
Power inverter is a kind of products which change the DC electricity to AC electricity. It has been widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency and other field.
This power inverter has adopted the international lead circuit design, with the advantage of small size, light, stable, and high conversion efficiency. It has five kind of protect function such as: input under voltage protection, input over voltage protection, overload protection, over temperature protection, output short circuit protection.
2. Features and Application:
• Modified sine wave output
• High efficiency and portable
• Intelligent switch with digital display to show the input voltage and loading
• Intelligent to control the fan
• Advanced microprocessor design
• With under voltage/over voltage/over load/short circuit/overheat protection function
3.Parameters:
NO. | Testing project | Test standard |
1 | continue power | 1000W |
2 | rated voltage | 12.8V-13.2V / 13.2V-26.2V |
3 | work voltage | 11V-15V / 22V-26V |
4 | No-load current | <0.3A |
5 | USB output current | 2100MA Max |
6 | No-load output voltage | 100V-120V/220V-240V |
7 | output voltage(12V-14V) with regulating load | 100V-120V / 210V-240V |
8 | Fan | start work when load is 60W-200W |
9 | frequcncy | 60Hz±3Hz / 50Hz±3Hz |
10 | over voltage cut off voltage | 15.5V±0.5VDC / 27.2V ±0.5VDC |
11 | over voltage alarm voltage | 10.5V±0.3VDC / 20.5V ±0.3VDC |
12 | low voltage turn off voltage | 9.5V±0.3VDC / 18.5V ±0.3VDC |
13 | recover voltage after turn off | 12V±0.3VDC / 24V ±0.5VDC |
14 | over load protection(5-15s) | 58-62A |
15 | short-circuit protection | the inverter will not broken with several times short-circuit |
16 | indicator light | work mode:green light lights, |
17 | environment temperature | 25°C±1°C |
18 | Miniature fuse | 40A*2 (inside) |
19 | Load efficiency | ≥80% |
20 | Maximum efficiency | ≥85% |

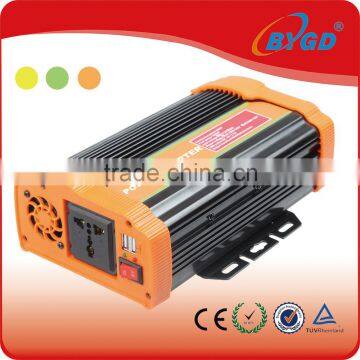

4.Pictures of Power Inverter:
