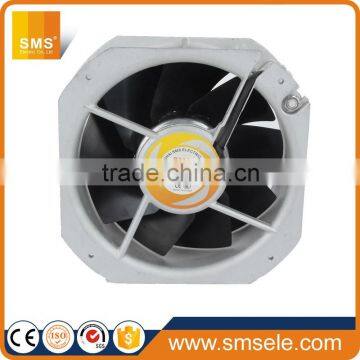

industrial axial flow fan AC axial flow fan with ball bearing
- SHANGHAI/NINGBO/SHENZHEN
- T/T Credit Card
You May Like
-
AC Industrial Cooling Exhaust Axial Fan 220v
-
Good Quality AC DC Finger Metal Fan Guard 90mm 90x90 mm
-
Stainless Steel Mesh Fan Net Cover/Metal Finger Guard
-
Metal Centrifugal Fan Finger Guards 120mm/150mm/200mm
-
Metal Iron Wire Fan Finger Guard/Fan Guard Grill/Fan Guard Net
-
Metal Fan Cover Net/Computer Protect Covers/Cooling Fan Cover
Product Details
Electric Current Type | AC | Mounting | Other | |
Blade Material | Plastic | Place of Origin | Zhejiang, China | |
Brand Name | SMS | Model Number | SF-22082 | |
Voltage | 110V/240V | Power | 32/38W | |
Air Volume | 268-307CFM | Speed | 1350/1560 | |
Certification | CCC, Other | After-sales Service Provided | No overseas service provided |
Product Description
industrial axial flow fan AC axial flow fan with ball bearing
YOU MAY ALSO BE INTERESTED IN: | ||
INSULATION PIERCING CONNECTOR | FIRE-PIERCING CONNECTOR | WATERPROOF JUNCTION BOX |
DIN RAIL | RAIL CUTTER | BUSBAR |
AXIAL FAN | FAN FIFLTER UNIT | METAL PROTECTIVE NET |
TERMINALS | WIRE DUCTS | MULTI-PURPOSE TERMINAL BLOCKS |
◊ Frame: High quality aluminum frame structure corrosion moisture
◊ bearing structure: oil-bearing or ball bearing
◊ Insulation class: B
◊ Insulation resistance: Case of inter-winding insulation resistance plus more than 100MΩ 500V DC
◊ Dielectric strength: 0.5mA 1500V/AC min ◊ security protection: Impedance protection
◊ Operating Temperature: oil: -10 ℃ ~ +45 ℃ Ball: -20 ℃ ~ +70 ℃
◊ Storage temperature: -40 ℃ ~ +70 ℃
AC fan of variety, this introduces the heat used in electronic products, general small AC fan. The appliance industry, machinery industry, manufacturing equipment industry and other ventilation requirements are widely used.
Model | Bearing structure | Voltage (V) | Frequency (Hz) | Current (A) | Power (W) | Speed (Rpm) | Air volume (Cm m) | Airflow (Cfm) | Capacitance (μ F / V) | Noise (dB-A) | The weight (G) |
SF-22082MBL-2 | Ball | 220/ 240 | 50/ 60 | 0.13/ 0.15 | 32/ 38 | 1350/ 1560 | 7.59/ 8.69 | 268/ 307 | 1.2uF/450V | 43/46 | 2950 |
SF-22082MBL-5 | Ball | 110/120 | 50/60 | 0.54/ 0.65 | 65/ 75 | 2450/ 2700 | 15.3/ 16.8 | 540/ 596 | 1.2uF/450V | 43/46 | 2950 |
SF-22082HBL-6 | Ball | 220/ 240 | 50/ 60 | 0.27/ 0.32 | 65/ 75 | 2450/ 2700 | 15.3/ 16.8 | 540/ 596 | 2.2uF/450V | 59/ 61 | 2950 |
Packaging Details: | A. Common Packing:1PC + inner box +Label+ export carton B. Customized Packing: OEM Label, PDQ etc |
Delivery Detail: | 3-7 days for samples; 5-25 working days after the deposit |
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Payment Term | A.L/C,T/T (Bank Transfer, Wire Transfer) |
B.Western Union | |
C.Paypal (For samples fee & Courier cost) | |
Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc |
What kind of a company we are ?
We are MANUFACTURER located in Zhejiang,China.
We were gainning good reputation among our customers for our professional,warm and thoughtful service.Because we know that a long terms business based on the quality control,price,packing,delivery time etc.
Does your company is a factory or trade company ?
We have a factory by ourself , we are on this business for few years in China.
Whats the quality assurance we provided and how do we control quality ?
1. Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. Besides,
we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2. 100% inspection in production process.
All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure
they consistently achieve the required quality levels.
What's your MOQ ?
MOQ is 1pcs.
What's the lead time if we order 100pcs?
Because the products are sell hot so we keep 1000pcs one item in stock always.we will send out the next day after you place order.
