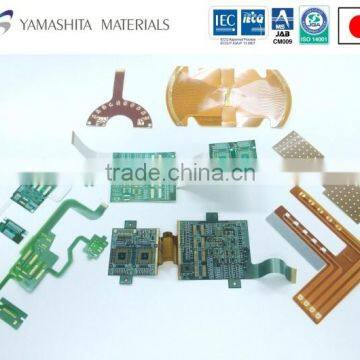

A wide variety of customized flexible board using polyimide and LCP film

 A wide variety of customized flexible board using polyimide and LCP film

•We have all the latest equipment.
•We can handle small-lot orders.
•We can conduct business without prepayment requirements.

Lineup Table

YFC Practical Applications:
Camera manufacturing jigs, high-temperature reliability testing jigs, inspection jigs,

handheld terminals, communications equipment, liquid crystal modules,

dental equipment, optical transceivers

SFC Practical Applications:
Control unit wiring, GPS modules, displays, lighting sensors, scanner inspection jigs,

camera inspection jigs

RFM Practical Applications:
Cameras for broadcasting, accelerometers, surveillance cameras,

notebook PCs, connector assessment, communications equipment inspection jigs
RFS Practical Applications: high-sensitivity cameras, X-ray detectors

RFC: Communications equipment, notebook PCs

  Nomenclature

Model Number/Specifications List
YFC Features:
General-purpose heat-resistant polyimide-based flexible FPC cable

SFC Features:
General-purpose polyimide-based flexible FBC cable with enhanced shielding capabilities

RFM Features:
Liquid crystal polymer-based FPC cable with impedance calibrated to a 100Ω±10Ω differential through

a secure GND coupling

RFS Features:
Liquid crystal polymer-based FPC cable with impedance calibration and high shielding capabilities

from its triple-layered stripline structure

RFC:
Liquid crystal polymer-base FPC cable which is both flexible and LVDS compatible

Image of Layer Structure/Terminal Area

List of tried and proven YFC connectors that are compatible with staggered 0.3mm-pitch terminals

 Optimal quantity table

- YFC,SFC 0.3mmPitch -

- YFC,SFC 0.5mmPitch -

- YFC,SFC 1.0mmPitch -

- RFM1,RFM3,RFS1 0.5mmPitch -

- RFC1,RFC2,RFM2,RFM4,RFS2 0.5mmPitch -

Image of the Manufacturing Process

Ordering Process

Minimum Delivery Time-Table

Packaging Specifications

Trial samples of YFC 1.0mm-pitch and 0.5mm-pitch cable

Corporate Profile

History

Location

ISO9001 Certification

ISO14001 Certification

Trade Show Exhibition Track Record
