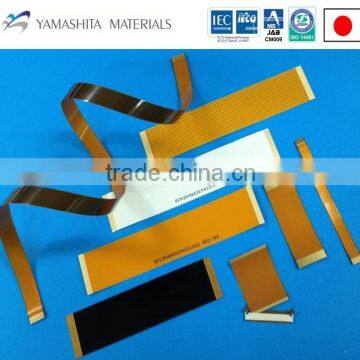

Japanese durable flexible flat cable for testing jigs with quick delivery

Place of Origin	Japan		Brand Name	YAMASHITA MATERIALS
Model Number	yamashita1-033		Application	Other, Please contact us

Specifications

* Flexible Flat Cable
* Made in Japan
* Small-lot order available

Japanese durable flexible flat cable for testing jigs with quick delivery

•We have all the latest equipment.
•We can handle small-lot orders.
•We can conduct business without prepayment requirements.



Lineup Table

YFC Practical Applications:
Camera manufacturing jigs, high-temperature reliability testing jigs, inspection jigs,

handheld terminals, communications equipment, liquid crystal modules,

dental equipment, optical transceivers

SFC Practical Applications:
Control unit wiring, GPS modules, displays, lighting sensors, scanner inspection jigs,

camera inspection jigs

RFM Practical Applications:
Cameras for broadcasting, accelerometers, surveillance cameras,

notebook PCs, connector assessment, communications equipment inspection jigs
RFS Practical Applications: high-sensitivity cameras, X-ray detectors

RFC: Communications equipment, notebook PCs



  Nomenclature



Model Number/Specifications List
YFC Features:
General-purpose heat-resistant polyimide-based flexible FPC cable

SFC Features:
General-purpose polyimide-based flexible FBC cable with enhanced shielding capabilities

RFM Features:
Liquid crystal polymer-based FPC cable with impedance calibrated to a 100Ω±10Ω differential through

a secure GND coupling

RFS Features:
Liquid crystal polymer-based FPC cable with impedance calibration and high shielding capabilities

from its triple-layered stripline structure

RFC:
Liquid crystal polymer-base FPC cable which is both flexible and LVDS compatible



Image of Layer Structure/Terminal Area



List of tried and proven YFC connectors that are compatible with staggered 0.3mm-pitch terminals



 Optimal quantity table



- YFC,SFC 0.3mmPitch -

		Length
		10mm	30mm	50mm	70mm	80mm ~100mm	110mm ~150mm	160mm ~420mm
PIN	10pin	5100pcs	1900pcs	1250pcs	850pcs	600pcs	400pcs	200pcs
	20pin	3450pcs	1250pcs	850pcs	550pcs	400pcs	250pcs	140pcs
	30pin	2550pcs	950pcs	600pcs	400pcs	300pcs	200pcs	100pcs
	40pin	2100pcs	800pcs	500pcs	350pcs	250pcs	180pcs	90pcs
	50pin	1700pcs	600pcs	400pcs	250pcs	200pcs	140pcs	70pcs



- YFC,SFC 0.5mmPitch -

		Length
		10mm	30mm	50mm	70mm	80mm~ 100mm	110mm~ 150mm	160mm ~ 420mm
PIN	10pin	3850pcs	1450pcs	950pcs	600pcs	450pcs	300pcs	160pcs
	20pin	2450pcs	900pcs	600pcs	400pcs	300pcs	200pcs	100pcs
	30pin	1700pcs	600pcs	400pcs	250pcs	200pcs	140pcs	70pcs
	40pin	1250pcs	450pcs	300pcs	200pcs	160pcs	100pcs	50pcs
	50pin	1100pcs	400pcs	250pcs	150pcs	140pcs	90pcs	40pcs



- YFC,SFC 1.0mmPitch -

		Length
		10mm	30mm	50mm	70mm	80mm~ 100mm	110mm~ 150mm	160mm ~ 420mm
PIN	10pin	2300pcs	850pcs	550pcs	350pcs	250pcs	190pcs	90pcs
	20pin	1250pcs	450pcs	300pcs	200pcs	150pcs	100pcs	50pcs
	30pin	850pcs	300pcs	200pcs	140pcs	100pcs	70pcs	35pcs
	40pin	700pcs	250pcs	180pcs	120pcs	90pcs	60pcs	30pcs
	50pin	550pcs	200pcs	140pcs	95pcs	70pcs	45pcs	20pcs



- RFM1,RFM3,RFS1 0.5mmPitch -

		Length
		10mm	30mm	50mm	70mm	80mm~ 100mm	110mm~ 150mm	160mm ~ 420mm
PIN	10pin	3850pcs	1450pcs	950pcs	600pcs	450pcs	300pcs	160pcs
	20pin	2450pcs	900pcs	600pcs	400pcs	300pcs	200pcs	100pcs
	30pin	1700pcs	600pcs	400pcs	250pcs	200pcs	140pcs	70pcs
	40pin	1250pcs	450pcs	300pcs	200pcs	160pcs	100pcs	50pcs
	50pin	1100pcs	400pcs	250pcs	150pcs	140pcs	90pcs	40pcs



- RFC1,RFC2,RFM2,RFM4,RFS2 0.5mmPitch -

		Length
		10mm	30mm	50mm	70mm	80mm~ 100mm	110mm~ 150mm	160mm ~ 420mm
PIN	10pin	3850pcs	1450pcs	950pcs	600pcs	450pcs	300pcs	160pcs
	20pin	2450pcs	900pcs	600pcs	400pcs	300pcs	200pcs	100pcs
	30pin	1700pcs	600pcs	400pcs	250pcs	200pcs	140pcs	70pcs
	40pin	1250pcs	450pcs	300pcs	200pcs	160pcs	100pcs	50pcs
	50pin	1100pcs	400pcs	250pcs	150pcs	140pcs	90pcs	40pcs





Image of the Manufacturing Process





Ordering Process







Minimum Delivery Time-Table





Packaging Specifications



Trial samples of YFC 1.0mm-pitch and 0.5mm-pitch cable



Corporate Profile





History



Location





ISO9001 Certification



ISO14001 Certification



Trade Show Exhibition Track Record
