Digital TV System ISDB-T/DVB-T2/ATSC-T Tuner Multiplexer
- Any port in China
- T/T D/P D/A Credit Card PayPal
You May Like
-
Hot Sales DVB-S/S2/C/T Tuner Input to IP Multiplexer
-
Coaxial Video DVB-S/S2/C/T2/ATSC-T to IP SPTS and MPTS Multiplexer
-
Chengdu 6 Tuner+ 2 ASI Input to IP MPEG4 Multiplexer
-
DVB-S2 Professional IRD/IPTV Headend Digital Satellite Receiver S2
-
Chinese ASI/Tuner/IP Input Satellite Receiver for Coaxial Network
-
Receiver DVB-S2/DVB-T2 IPTV IRD Decode HD Satellite Signal
Product Details
| Place of Origin | Sichuan, China | Brand Name | Shineco | |
| Model Number | SNK-6986 |
Product Description
Digital TV system ISDB-T/DVB-T2/ATSC-T Tuner Multiplexer
---Latest Price please contact skype ID:nancydvb
Outline
Shineco DVBS2 Tuner Input Multiplexer is the latest demodulation and multiplexing device for digital TV broadcasting head-end system with TS output through ASI and IP port. It can multiplex up to 8 channels Tuner and 1 ASI input to
one MPTS.
This multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. Also the multiplexer can insert EPG (electronic program guide),
CA (conditional access), data broadcasting into output TS. In conclusion, its high integration and cost effective
design make this device widely used in the CATV Broadcasting system.
Key features
Fully complying with ISO13818 and EN300 468 standard
l 8 Tuner+1 ASI input ports
l ASI and IP output
l Integrated demodulating and multiplexing functions
l Support accurate PCR adjusting
l Support PID filtering, re-mapping
l Support PSI/SI rebuilding and editing
l Support MPTS over UDP, RTP/RTSP output as mirror of ASI output(RJ45)
l Huge buffer memory for saving the overflowing code stream
l Supporting to multiplex one program to all outputs
l Alarming function
l LCD/keyboard and Web-based NMS management
Principle
Specification
Input interface | 8 DVB-S2 Tuners+1 ASI | |
Re-multiplex | PID re-mapping | |
PCR accurate adjusting | ||
Automatic generating PSI/SI table | ||
Input | Packet format | 204/188 self-adaption |
Output port | ASI | 2 * ASI output |
IP | MPTS over UDP, RTP/RTSP output as mirror of ASI output (RJ45), 100Mbps Ethernet. | |
PID | Output range | 0x0000—0x1FFF |
PID transparent | Any PID transparent and mapping achievable | |
Amount of output PID per input | 128 | |
NMS port | Ethernet port | 10/100M |
General | Dimensions | 482mm×300mm×44mm (WxLxH) |
Weight | 3.5kg | |
Temperature | 0~45℃(operation), -20~80℃(storage) | |
Power supply | AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz | |
Consumption | 18W | |
Front and Rear Panel of HD to IP Encoder
Besides,we also have 8 in 1 ASI muxtiplexer,IP multiplexer,DVB-S2 tuner in,mux-scrambler for you choose,detail information please add skype:nancydvb,thank you.
How to operation the HD TO IP encoder and managment page?

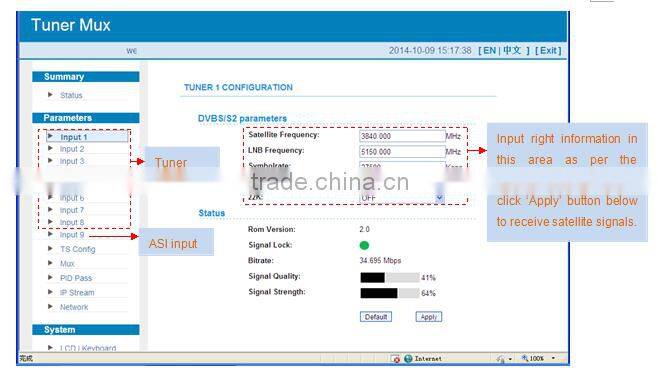

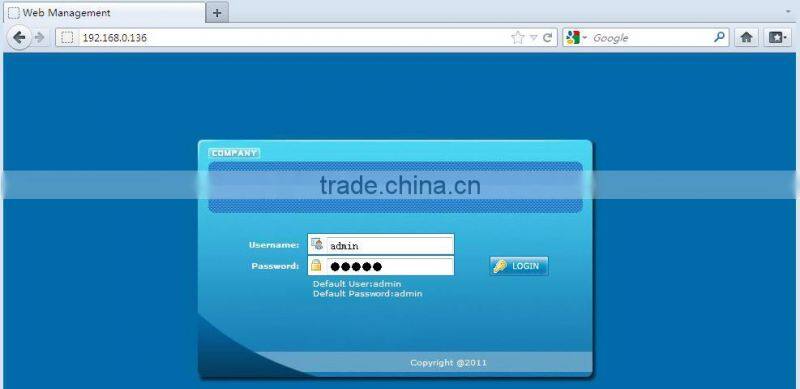

1. By Web managment:
Connect the PC and the device with net cable, and use ping command to confirm they are on the same network segment.
About Shineco company advantage?
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend
DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services.
These added values make our products more worthy.
Shineco Team members are kind and warmly enough to help you find the best solution for your project and market,
we work from 9:00 am to 24:00 pm to supply in time service for clients,if you choose us,we believe that we shall achieve
a win-win situation in the future cooperation.
FAQ For Shineco
Q1:Do you support Sample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement, sample are not free charge.
Sample Delivery will take approximately 1-3 working days after payment received,bulk order lead time is about 5-15 days based on your quantity.
Q2:What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3:Since there are so many company in alibaba,how I can believe Shineco is the best factory we can cooperation?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after-sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order:
Send your requirement to Nancy email or add skype: nancydvb for details or invoice.

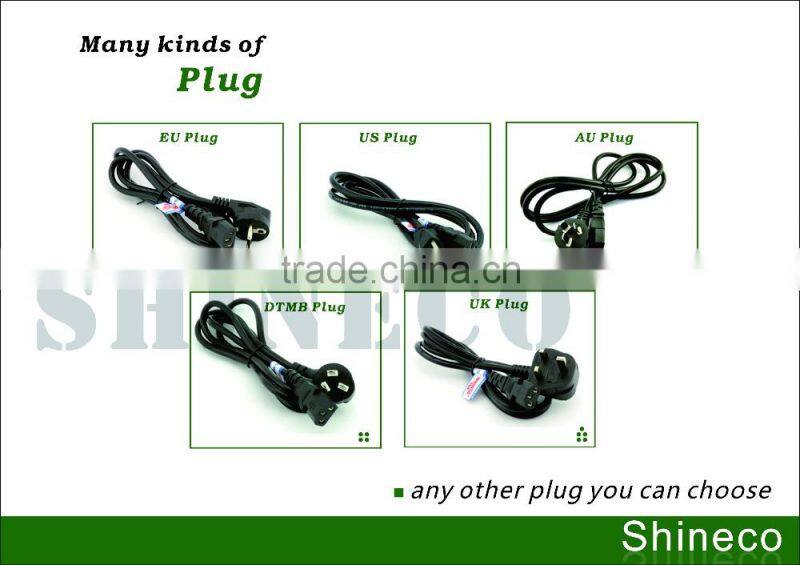

About the Packing and Power Plug:
1.By express, DHL/FEDEX/UPS/TNT/EMS for your choose
2.By Air for bulk goods, you pick up at Airport.
About the Solution and Construction
Click here to get the latest Price and Solution.
