Rotation range: 0~ 360 Profile Projector HB-16 for industry, college

 HB-16

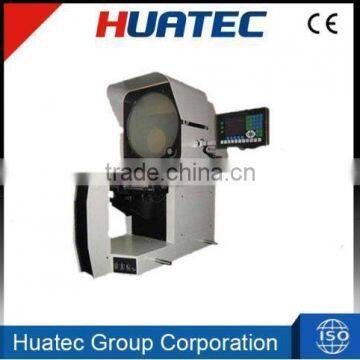

   High accuracy and stable 400mm 110V / 60Hz Profile Projector for industry, college

Detailed Product Description

Applications:

HB16 is widely used for product quality checking, researching and developing at the field of mechanic, electronic, rubber industry, and college, research institute and metrology department. HB16 is able to inspect all kinds of surface and outline of complicated work-pieces such as Template, Pressing work-pieces, Cam , Screw thread, Gear, etc.

Features:

 Sturdy metal design with the novel shape

 Excellent optical path with the sharp image

 Large X, Y measuring travel stage with the precision accuracy (3+L/50) μm

 Digital Multifunctional digital readout DC5000 with the strong process function

 Touch panel switch protects the operator’ safe

 Cold surface optical fiber light source insures the unscalding for the operators and the undamaging for the tested specimens

Technical Specifications:

1,Projective screen:

 Screen diameter: φ400 mm (16’’)

 Rotation range: 0°~ 360°

 Resolution of the rotary angle: 1′

 Accuracy of the rotary angle: 4′

2,Worktable:

 X, Z axis measuring travel: 300x 150mm; 250x150mm and 200x100mm

 X, Z linear resolution: 0.001mm

 Y-axis travel: 0~80mmm (Focusing)

3,Accuracy: (3+L/75)μm;

4,Load capacity : 15kg

5,Light source:  Contour lighting: 24V/150W Halogen tungsten lamp

 Surface lighting: Double tube optical fiber

6,Lens: (Magnification error<=0.08% )

 Magnification 10× 20× 50× 100×

 Visual Field φ40mm Φ20mm Φ8mm φ4mm

 Working Distance 88.376mm 81.375mm 54 mm 44.9 mm

7,Power supply: 220V/50Hz or 110V/60Hz

8,Standard Delivery: 10X lens group

 LCD display DRO DC5000

 mini-printer

 foot-switch

 cold surface optical fiber

9,Optional accessories: 20x, 50x and 100x lens

 measuring software

 angle over chart

 support-vice
