profile projector VT12 series

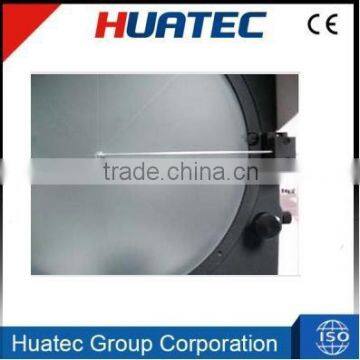

Profile Projector VT-12

Uses and Features:

Profile Projector VT12 series are precise and excellent effective measuring instrument integrating Optic, Mechanic, Electricity, and Computer technology.

It is widely used in the field of mechanic, electronic, rubber industry, and college, research institute and the measuring checking department for checking product quality. VT12 can inspect all kinds of surface and outline of complicated work-pieces such as Template, Pressing work-pieces, Cam, Screw thread, Gear, etc.

Applied-fields

Profile ProjectorVT-12 series are precise and excellent non-contact optical measuring instrument integrated with the technology of optic, mechanic, electricity and computer.

It is widely used at the field of mechanism, meter, electronic, rubber industry for quality control, it can inspect all kinds of surface and outline of complicated work-pieces, such as, cam, screw thread, gear, perform milling cutter and so on, and it is an effective metrical and analytic system for education, research institute and lab.

Characteristics

300mm diameter screen with digital protractor;

Four size of precision movement stages;

Double steel guide for stage lifting focus system;

Halogen profile and surface illumination;

Geometric multifunction data processing system;

Available rotary table,edge detecting sensor,etc

Technical Specification:

Optional Accessories:
Working Stand; Objective 20X, 50X, 100X; Rotary table; mini-printer; Over chart and measuring software
