Product Details
| Place of Origin | Beijing, China | Brand Name | HUATEC | |
| Model Number | FD201B |
Product Description

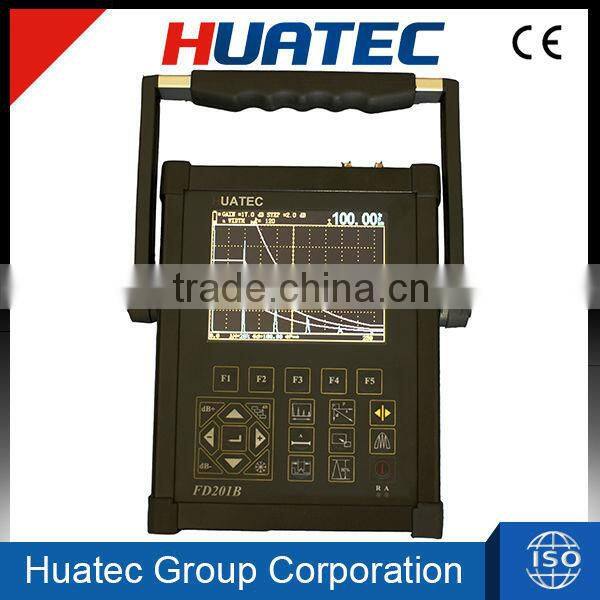

FD201B Defectoscope 0- 6000mm, NDT UT machine, portable digital ultrasonic leak detector tester
Description
DAC (6dBDAC),AVG,. AWS curves
High-speed capture and very low noise
Gate and DACalarm;Acoustic-Optical alarm
Solid metal housing (IP65)
High contrast viewing of the waveform from bright
Powerful pc software and reports can be export to excel
Main Features
- Automated display precise flaw location (Depth d,level p,distance s,amplitude,sz dB,dia)
 - Automated switch three staff gauge ((Depth d,level p,distance s)
 - Convenient to make and use DAC and AVG to evaluate the echo,the curve can be modified and compensated
 - 100 independence setup, any criterion can be input freely, we can work in the scene without test block
 - Big memory of 300 A graph
 - Automated gain and gain scan, automated echo degree
 - Peak hold and Peak memory
 - Powerful PC software and reports can be export to excel
 - The embeded software can be online updated
 - Li battery, continue working time up to 10 hours
 - Display freeze
 - Lock and unlock function of system parameters
 - Dormancy and screen savers
 - Electronic clock calendar
 - Two gates setting and alarm indication

Specifications
Title  | Parameter  | Title  | Parameter  |
Measuring Range(mm)  | 0 ~ 6000  | Measurement Mode  | Single,Dual,Thru  |
Vertical Linearity Error  | ≤3%  | Reject  | 0~80%  |
Horizontal Linearity Error  | ≤0.2%  | Pulse Displacement(μs)  | -20 ~ +3400  |
Sensitivity Leavings  | >60dB  | Zero(μs)  | 0.0 ~ 99.99  |
Dynamic range  | >32dB  | Port Type  | BNC  |
Resolving Power  | ≥40  | Operating Temperature (℃)  | -20~50  |
Frequency Range(MHz)  | 0.5 ~ 15  | H×W×D(mm)  | 240×180×50  |
Gain(dB)  | 0 ~ 110  | Weight(kg)  | 1.8  |
Material Velocity(m/s)  | 1000 ~ 9999  |
  |
  |
Standard delivery
- Main unit
 - 2.5MHz-dia20 straight probe
 - 4MHz-8x9mm, 60 degree angle probe
 - 4A/9V power adapter
 - Probe connection cable (BNC to BNC)
 - Probe connection cable (BNC to LEMO)
 - USB2.0 –RS232 converter
 - Instruction manual
 - Calibration certificate
 - Carrying case

Additional accessories
- Data managing software
 - Data managing cable RS232
 - Leather bag

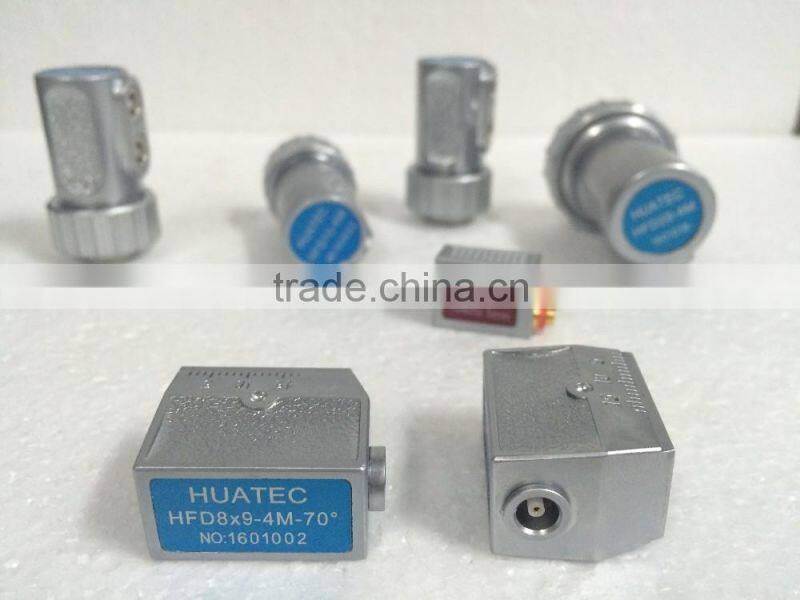

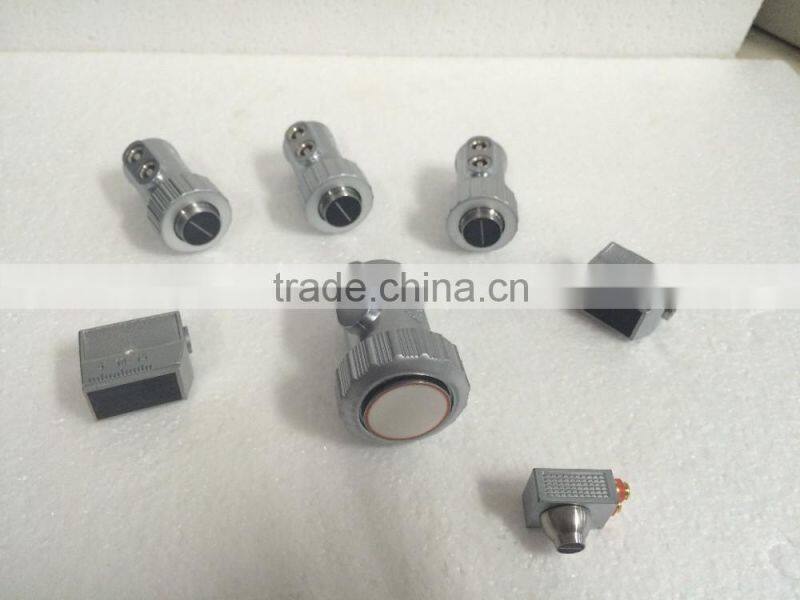

 - All kinds of angle and straight probe, double crystal probe at any size with frequency 0.5—15MHz
 - Connection cable for probe LEMO and BNC
 - Lithium ion battery
 - Power adapter (4A/9V)

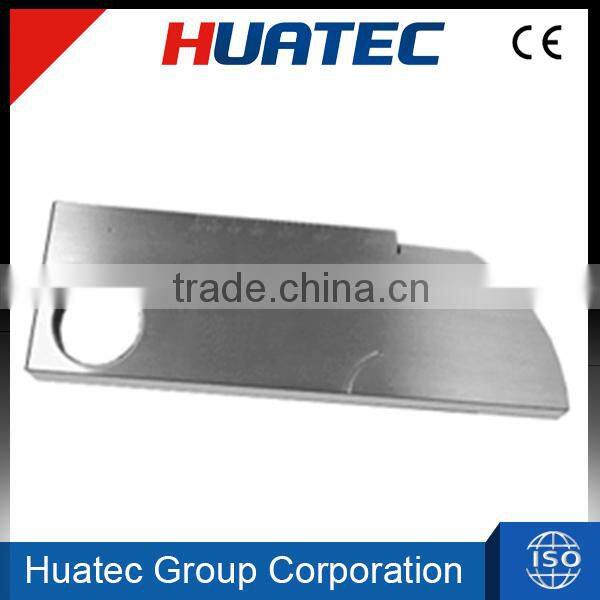

 - Test block V1

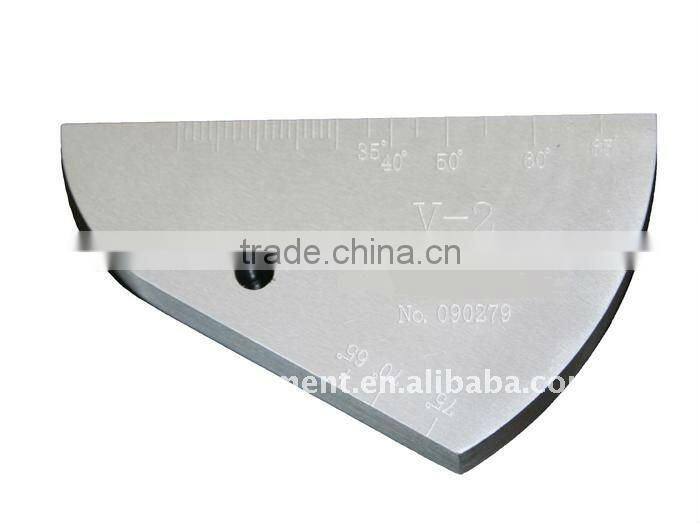

 - Test block V2
 - Test block DAC, ASME etc.
